Unpacking and Installing the Cisco ONS 15454 Four-Shelf and Zero-Shelf Bay Assembly
78-13271-05
Installation Instructions
Slab Floor Plan

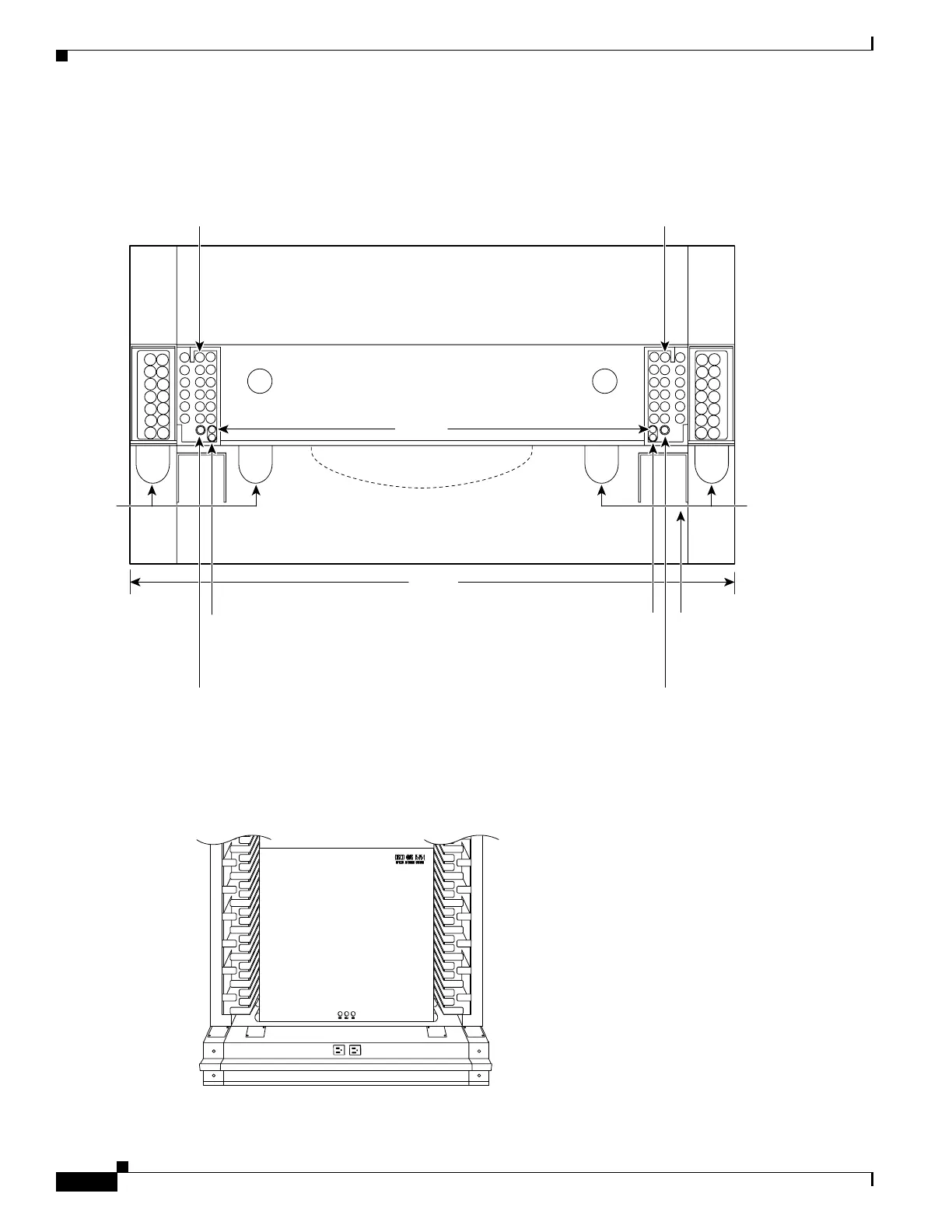

Figure 4 Slab floor section for local
Figure 5 Slab base fiber routing
Rack Cutout
Power
(30.69)
61256
32X DS1 or DS3 Cables 32X DS1 or DS3 Cables
A side DC feed, 2x #2 AWG,
wrapped at floor opening.
(can require a larger gauge
wire depending on distance)
Rack ground
feed wire, #4 AWG
Fiber
openings
Fiber
openings
Rack ground
feed wire, #4 AWG
Guard rail
cover
B side DC feed, 2x #2 AWG,
wrapped at floor opening.
(can require a larger gauge
wire depending on distance)
63666
