Cisco TelePresence SX20 Quick Set Administrator Guide
Controlling the far end camera
While in a call, you can control the remote participant’s
camera (far end) provided that:
• The Remote Monitoring option is installed on your video
system (software version TC7.3.3 and later).
• The Video AllowWebSnapshots setting is switched On
(software versions TC7.3.0 to TC7.3.2).
• Far end camera control (FECC) is enabled on the far end
system. Only the available controls will appear.
Control the remote participant’s camera

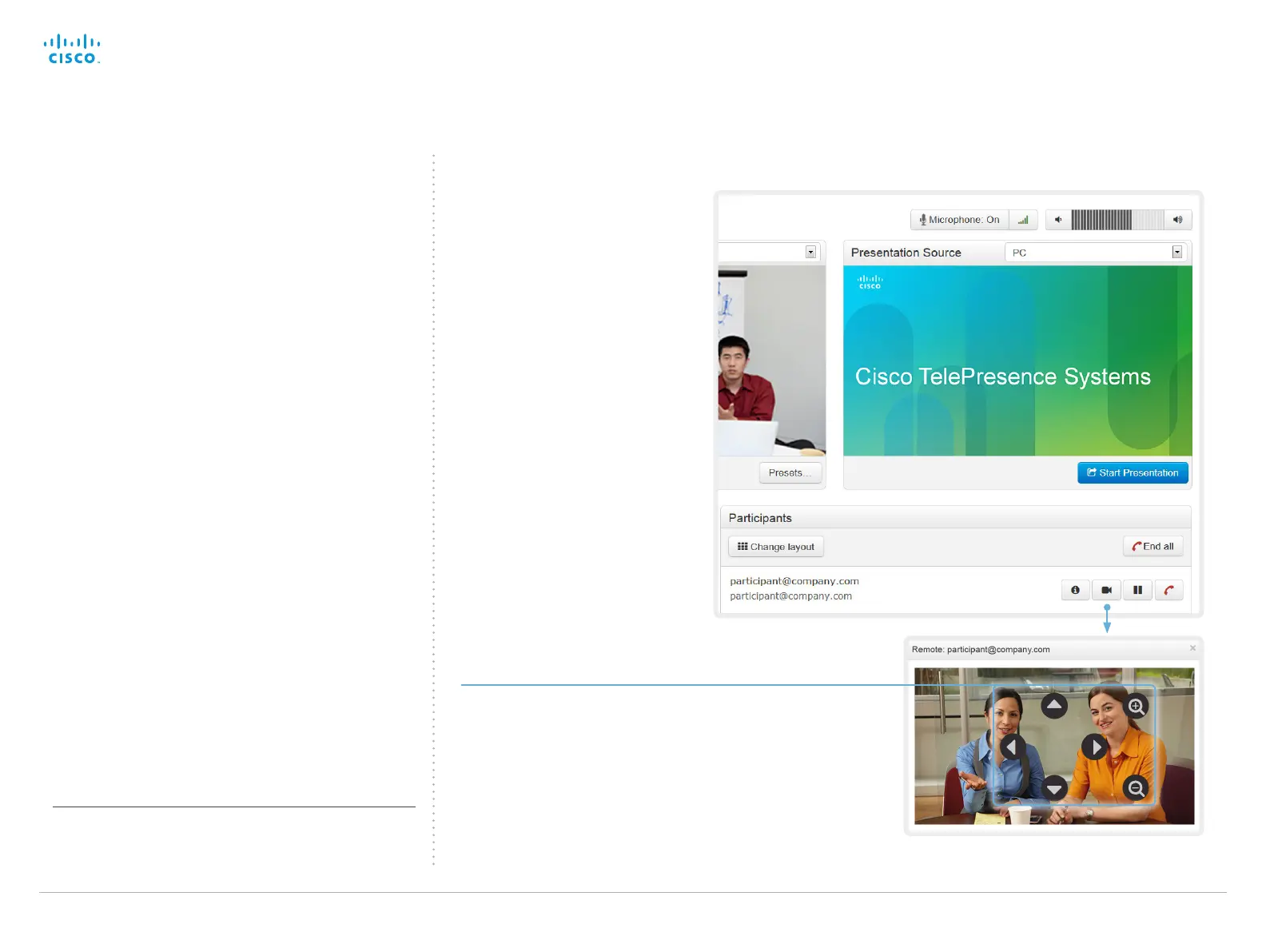

1. Click the camera icon to open the
remote camera control window.
2. Use the left and right arrows to pan the
camera; the up and down arrows to tilt
it; and + and - to zoom in and out.
For software versions TC7.3.0 to
TC7.3.2, the cursor must be in the
image to show the controls.
Navigate to: Call Control
Whether or not snapshots of input sources are shown as illustrated,
depends on the software version, configuration, and options installed
on the video system. Refer to the About snapshots and remote
monitoring sections (► TC7.3.3 or newer or ► TC7.3.0 to TC7.3.2).
Contents
Introduction
Web interface
System settings
Setting passwords
Appendices
Web interface

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
