Cisco TelePresence SX20 Quick Set Administrator Guide
Cisco TelePresence SX20 Quick Set at a glance
The Cisco TelePresence® SX20 Quick Set can transform
a standard flat panel display into a powerful telepresence
system.
Whether you are just getting started with video
communications or implementing a large-scale deployment,
the SX20 Quick Set delivers high quality performance.
Features and benefits
• The system is easily installed. Also mounts easily on the
wall (optional wall mount kit).
• The system is self-configuring with Cisco Unified
Communications Manager (UCM) or Cisco WebEx
TelePresence provisioning. All you need is to authenticate
your endpoint to the network.
• Three PrecisionHD camera options with pan, tilt, and
zoom helps ensure optimal framing and video clarity.
• Dedicated camera presets provide flexibility and easy
viewing for any meeting scenario.
• Operation using remote controll and on-screen menu
(default); or 8-inch Touch interface (optional).
• Simple one-button-to-push calling integrates with
common calendar programs.
• Video resolution and frame rate up to 1080p60.
• You can connect and share your PC content at 1080p15
resolution and frame rate.
• Dual display option available.
• The systems support H.323 and Session Initiation
Protocol (SIP) with bandwidth up to 6 Mbps point-to-
point.
• The system is compatible with standards-based video
systems without loss of features.
• Capabilities for multipoint conferences using the Cisco
TelePresence Multiway™ technology, or the built in 4 way
Cisco TelePresence MultiSite feature (no external bridge).

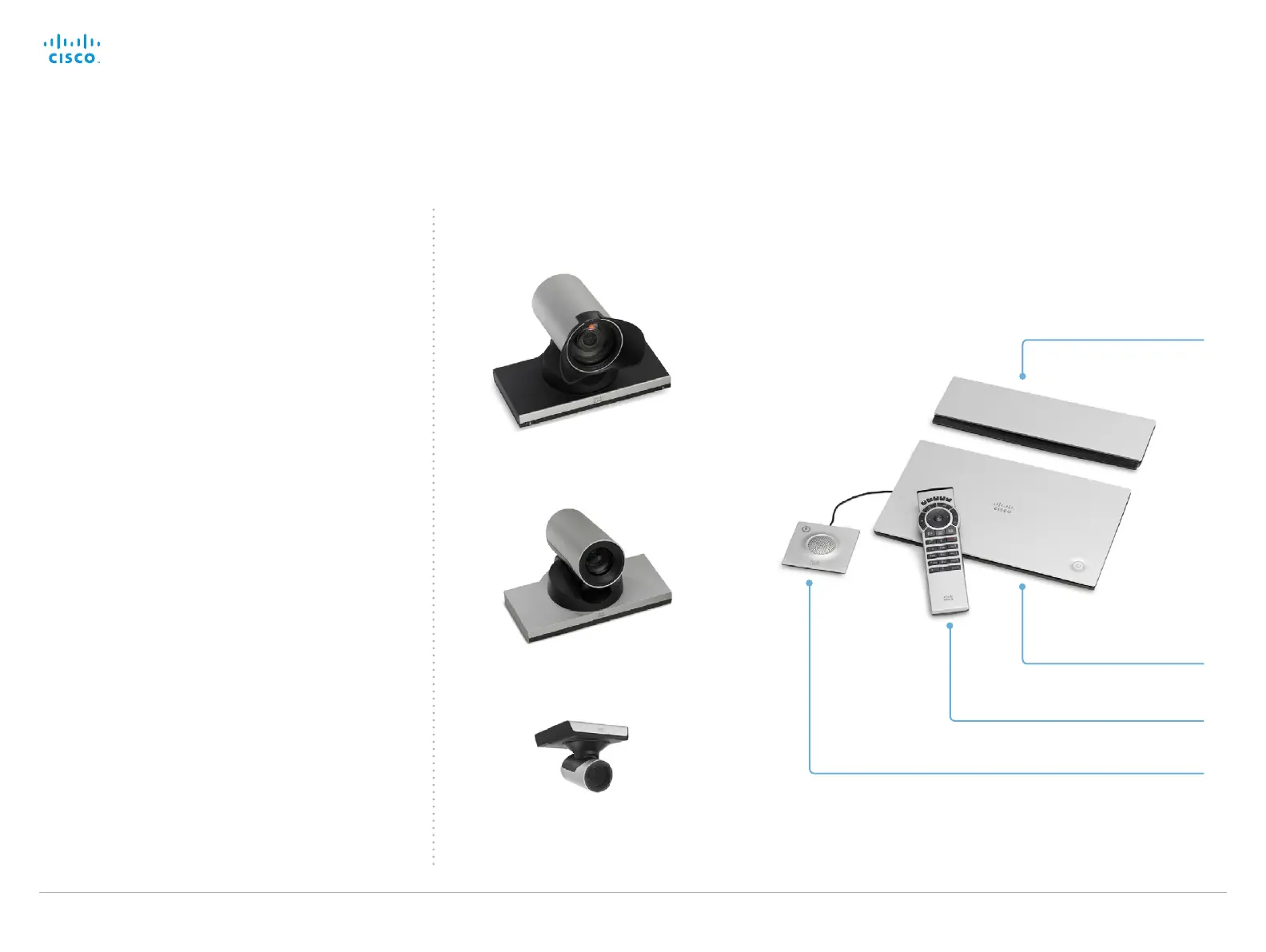

Camera options
SX20 Codec
Wall mounting kit
(optional)
PrecisionHD 1080p12x
PrecisionHD 1080p4xS2
Remote control
1 microphone
(+ 1 optional)
PrecisionHD 1080p2.5x
Contents
Introduction
Web interface
System settings
Setting passwords
Appendices
Introduction

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
