Cisco UCS B200 M4 Servicing Guide

Step 10 Configure one or more of the following boot options for the boot policy and set their boot order:
• Local Devices boot—To boot from local devices, such as local disks on the server, virtual media, or
remote virtual disks, continue with Configuring a Local Disk Boot for a Boot Policy in the Cisco UCS
Manager Server Management Guide for your release.
• SAN boot—To boot from an operating system image on the SAN, continue with Configuring a SAN
Boot for a Boot Policy in the Cisco UCS Manager Server Management Guide for your release.
You can specify a primary and a secondary SAN boot. If the primary boot fails, the server attempts to boot
from the secondary.
• LAN boot—To boot from a centralized provisioning server, continue with Configuring a LAN Boot For
a Boot Policy in the Cisco UCS Manager Server Management Guide for your release.
• iSCSI boot—To boot from an iSCSI LUN, continue with Creating an iSCSI Boot Policy in the Cisco
UCS Manager Server Management Guide for your release.
Removing a Blade Server Cover
Procedure
Step 1 Press and hold the button down as shown in the figure below.
Step 2 While holding the back end of the cover, pull the cover back and then up.

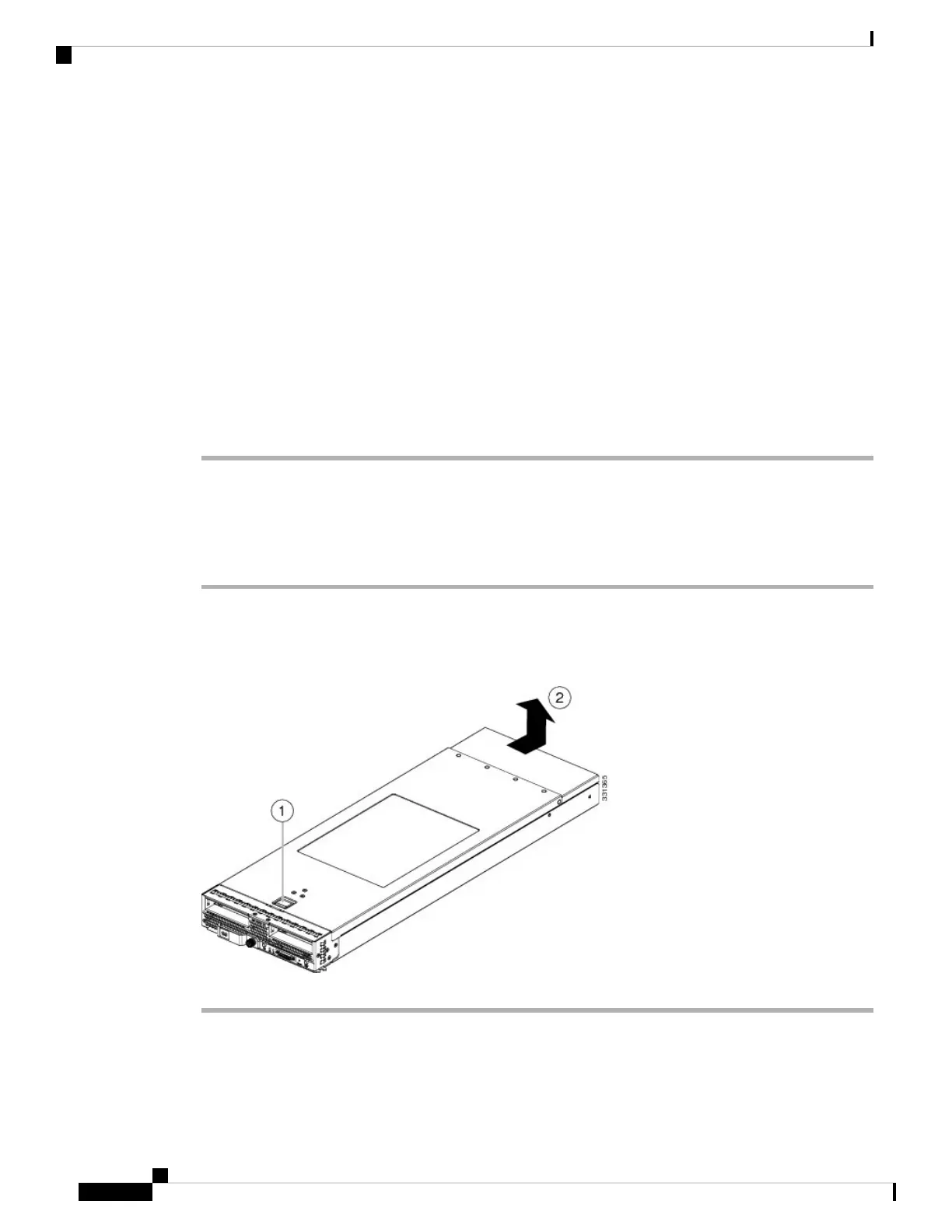

Figure 2: Opening a Cisco UCS B200 M4 Blade Server
Servicing a Blade Server
4
Servicing a Blade Server
Removing a Blade Server Cover

Cisco UCS B200 M4 Specifications

General

Tcase	72.1 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Scalability	2S
Processor code	SR206
Processor cache	20 MB
Processor cores	8
Processor model	E5-2630V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Haswell
Motherboard chipset	Intel C610
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Number of processors installed	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	24x DIMM
Internal memory	- GB
Memory clock speed	2400 MHz
Number of DIMM slots	24
Supported DIMM module capacities	64GB
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	-
Power supply	- W
Safety	UL 60950-1 No. 21CFR1040 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 2001
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 93 %
Ethernet interface type	40 Gigabit Ethernet
RAID levels	0, 1
HDD interface	SATA
Storage controller	LSI SAS3108
Total storage capacity	0 GB
Compatible memory cards	SD
Maximum storage capacity	3.2 TB
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express, Serial ATA
PCI Express slots version	3.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Heat sink	UCSB-HS-EP-M4-F=, UCSB-HS-EP-M4-R=, UCSX-HSCK=
Chassis type	Rack
Cooling type	Active
Product color	Gray
LED indicators	Network, Power
Number of fans	8 fan(s)
Processor ARK ID	83356
Intel Secure Key Technology version	1.00
PC health monitoring	LED
Sustainability certificates	Network Equipment Building Standards (NEBS)

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
