Cisco UCS B200 M4 Servicing Guide

information, see the firmware management chapter of one of the Cisco UCS Manager software configuration
guides.
Procedure
Step 1 Position the adapter board connector above the motherboard connector and align the two adapter captive
screws to the standoff posts on the motherboard.
Step 2 Firmly press the adapter connector into the motherboard connector (callout 2).
Step 3 Tighten the two captive screws (callout 3).
Removing an adapter card is the reverse of installing it. You might find it helpful when removing
the connector from the motherboard to gently rock the board along the length of the connector until
it loosens.
Tip

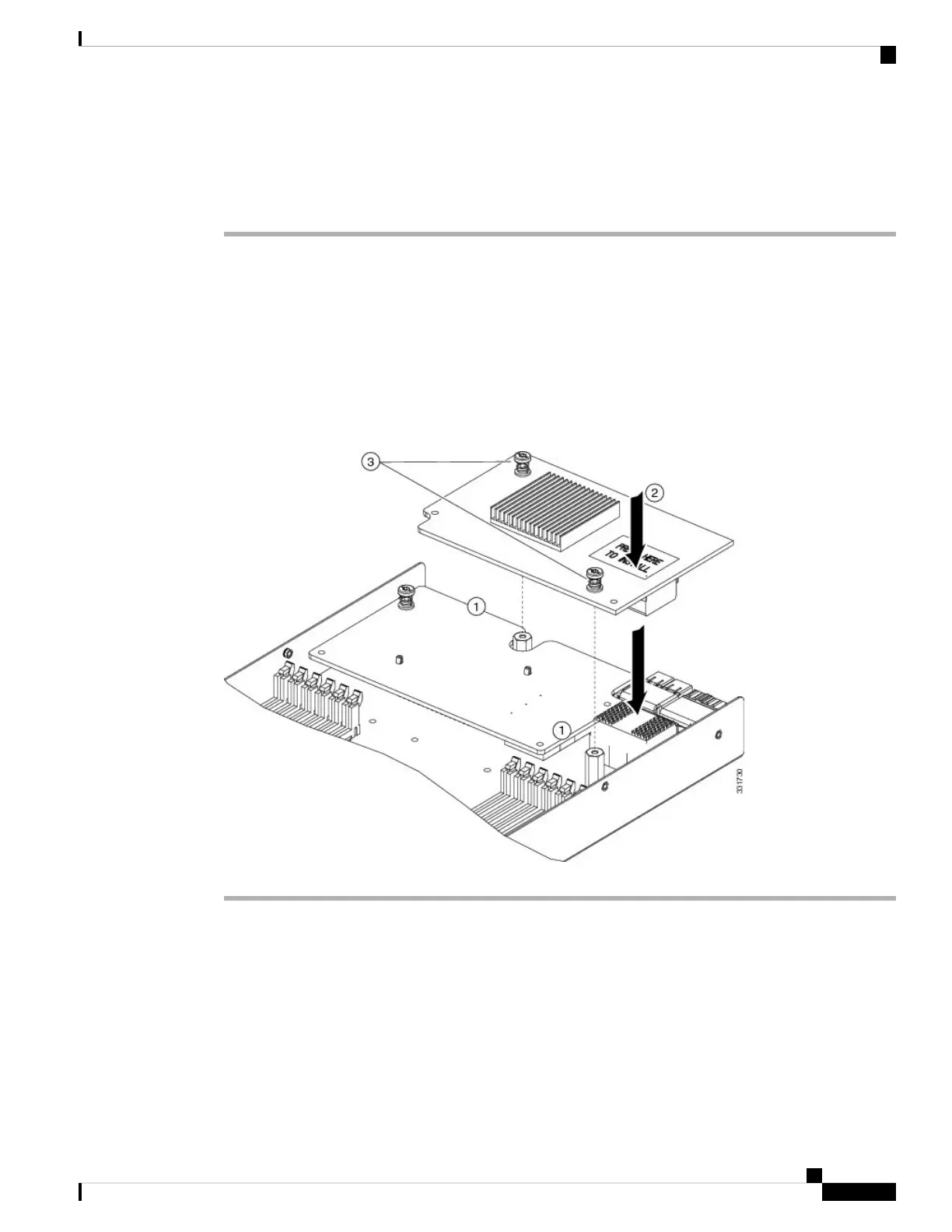

Figure 16: Installing an Adapter Card
Installing the NVIDIA M6 GPU Adapter Card
The NVIDIA M6 graphics processing unit (GPU) adapter card provides graphics and computing capabilities
to the server. If you are installing the NVIDIA GPU to a B200 M4 in the field, the option kit comes with the
GPU itself (CPU and heat sink), a T-shaped installation wrench, and a custom standoff to support and attach
the GPU on the B200 M4 motherboard. See the three components of the option kit in the following figure:
Servicing a Blade Server
19
Servicing a Blade Server
Installing the NVIDIA M6 GPU Adapter Card

Cisco UCS B200 M4 Specifications

General

Tcase	72.1 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Scalability	2S
Processor code	SR206
Processor cache	20 MB
Processor cores	8
Processor model	E5-2630V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Haswell
Motherboard chipset	Intel C610
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Number of processors installed	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	24x DIMM
Internal memory	- GB
Memory clock speed	2400 MHz
Number of DIMM slots	24
Supported DIMM module capacities	64GB
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	-
Power supply	- W
Safety	UL 60950-1 No. 21CFR1040 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 2001
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 93 %
Ethernet interface type	40 Gigabit Ethernet
RAID levels	0, 1
HDD interface	SATA
Storage controller	LSI SAS3108
Total storage capacity	0 GB
Compatible memory cards	SD
Maximum storage capacity	3.2 TB
Storage drive sizes supported	2.5 \
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express, Serial ATA
PCI Express slots version	3.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Heat sink	UCSB-HS-EP-M4-F=, UCSB-HS-EP-M4-R=, UCSX-HSCK=
Chassis type	Rack
Cooling type	Active
Product color	Gray
LED indicators	Network, Power
Number of fans	8 fan(s)
Processor ARK ID	83356
Intel Secure Key Technology version	1.00
PC health monitoring	LED
Sustainability certificates	Network Equipment Building Standards (NEBS)

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
