23
Chapter 2 Printer Operation
Setting the Media
Installing the Media

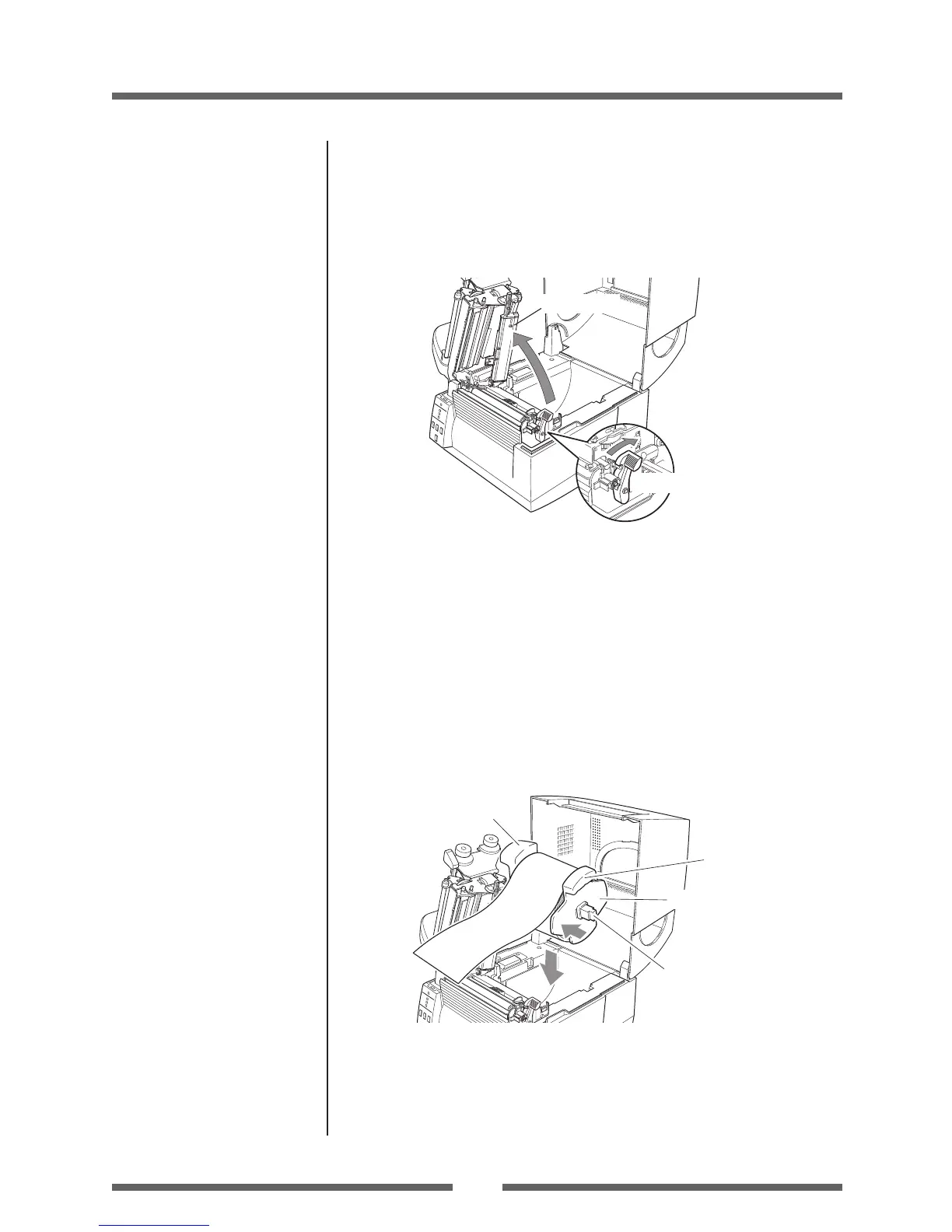

1. Push the large blue-head open lever to release the head
unit, and then lift the sensor arm by hand as shown below.
Sensor arm
Large blue-head open lever
Head unit
2. Firstly, slide the two black plastic parts of the media holder
assembly together. Ensure correct alignment of the guide
with the bar as it can only be installed in one direction.
When using the Paper Near End Sensor, sensor position
settings should be performed. See “Setting the Paper Near
End Sensor” for how to perform the settings. (These settings
are o when the product is shipped from the factory)
3. Slide the roll of media over the media bar. The media guide
must be on the right side of the roll of media (as viewed from
the front of the printer) with the ribbed surface of the media
guide touching the media roll as shown in the illustration.
Media holder bar
Media holder guide
Handle
Handle
4. Set the media roll and media holder in to the printer as shown
above. It is advisable to pull a length of media forwards and
through the mechanism ready for later positioning. When lifting
the media, use the handles on the media holder placed on either
side.
Media Sizes (p.22)
Setting the Paper Near End
Sensor (p.27)
To Next Page
