CITROEN C2 2003 - Valve Timing Setting (8 HX Engine)

67
CHECKING AND SETTING THE VALVE TIMING
Engine : 8HX
B1BP2LXC
Tools.
[1] Pliers for removing plastic pegs : 7504-T.
[2] Lever for detensioning the dynamic tensioner roller : (-).0194.E
[3] Engine flywheel setting peg : (-).0194.C
[4] Camshaft setting peg : (-).0194.B.
[5] Crankshaft and high pressure pump setting peg : (-).0194.A.
Preliminary operations.
Remove:
- The front RH wheel.
- The front RH splash-shield, using tool [1].
- The clips of the electrical harness on the upper timing cover.
- The accessories belt, using tool [2] (see corresponding operation).
Check ing the setting.
Disconnect the battery negative cable.

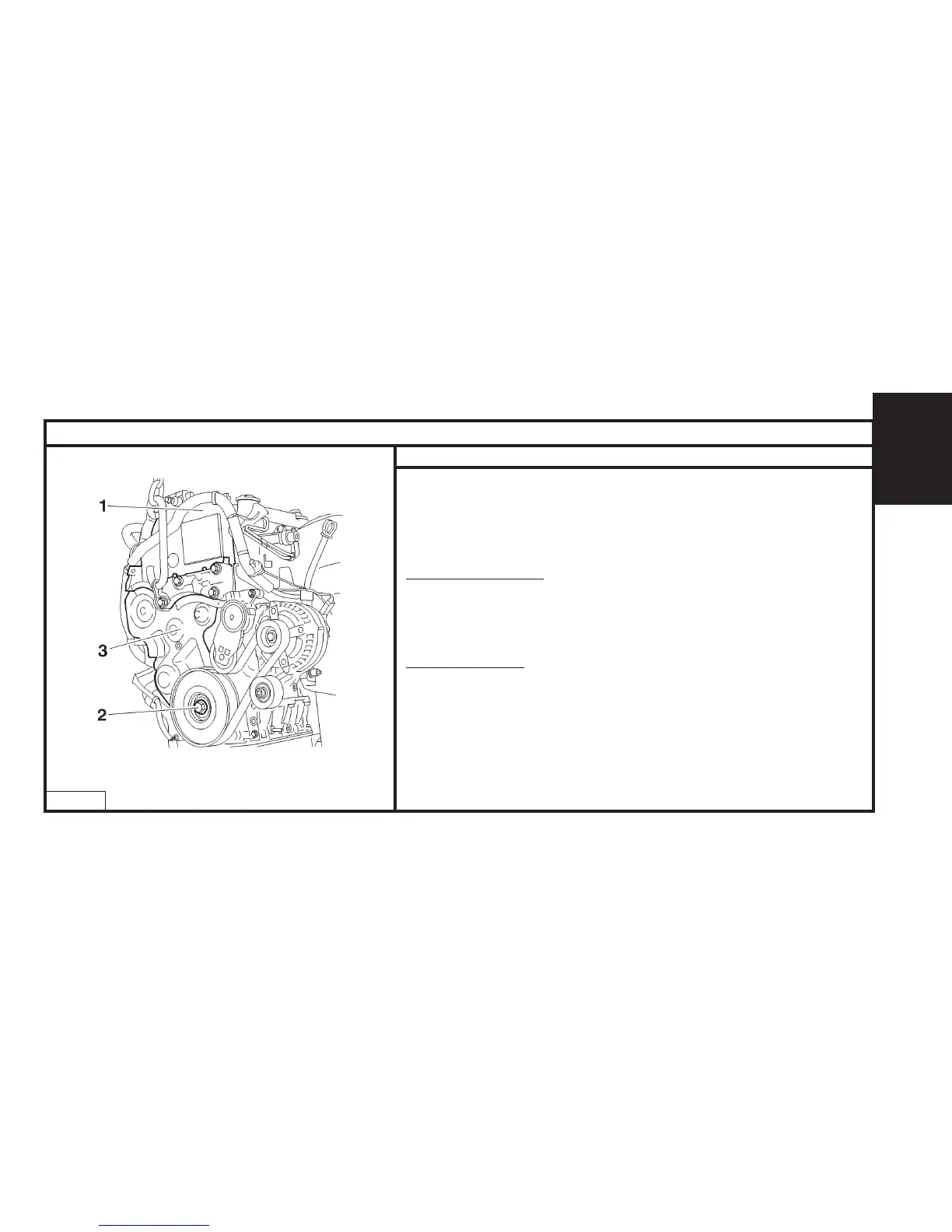

Remove the upper timing cover (1).
Rotate the engine using the screw (2) of the crankshaft pulley.
NOTE : The locking hole is located under the crankshaft bearing cap cover.
Undo the screw (2).
Detension the auxiliary drive belt dynamic tensioner roller, using tool [2].
ENGINE
