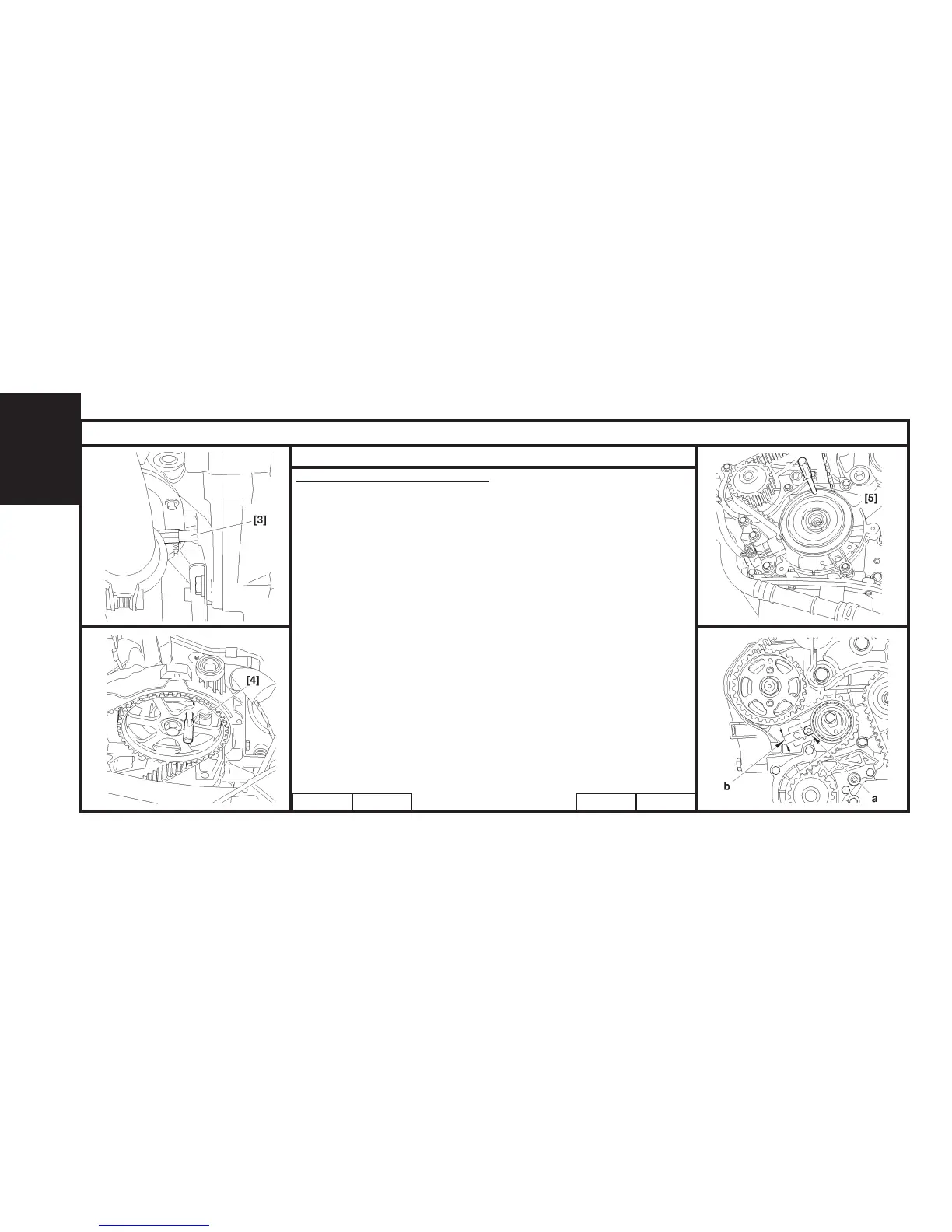

CHECKING AND SETTING THE VALVE TIMING
Engine : 8HX
B1EP18EC
Checking the setting (continued)
Remove:
- the accessories drive belt.
- the accessories drive pulley.
- the lower timing cover (3).
IMPERATIVE : The magnetic track should show no signs of
damage and should not be approached by any other source of
magnetism.
Reposition the screw (2).
Remove tool [3].
Rotate the engine by means of the crankshaft pinion screw (2)
(clockwise), to bring it to the pegging position.
Position the tool [4].
Peg the crankshaft pinion (1), using tool [5].
Peg the high pressure pump pinion, using tool [5]
NOTE: Index «a» of the roller tensioner must be centred within the
area «b».
Check the correct positioning of index «a».
Remove tools [4] and [5].
Rotate the engine ten times.
Fit the tools [4] and [5].
If pegging is not possible, carry out the operation to remove/refit the
timing belt. (See corresponding operation).
B1JP03SC
B1EP18DC
B1EP18FC
