CHECKING AND SETTING THE VALVE TIMING
Engine : 8HY
B1EP18YD
Checks (continued).
Refit the screw (8).
Rotate the crankshaft six times (clockwise).
IMPERATIVE : Never rotate the engine backwards.

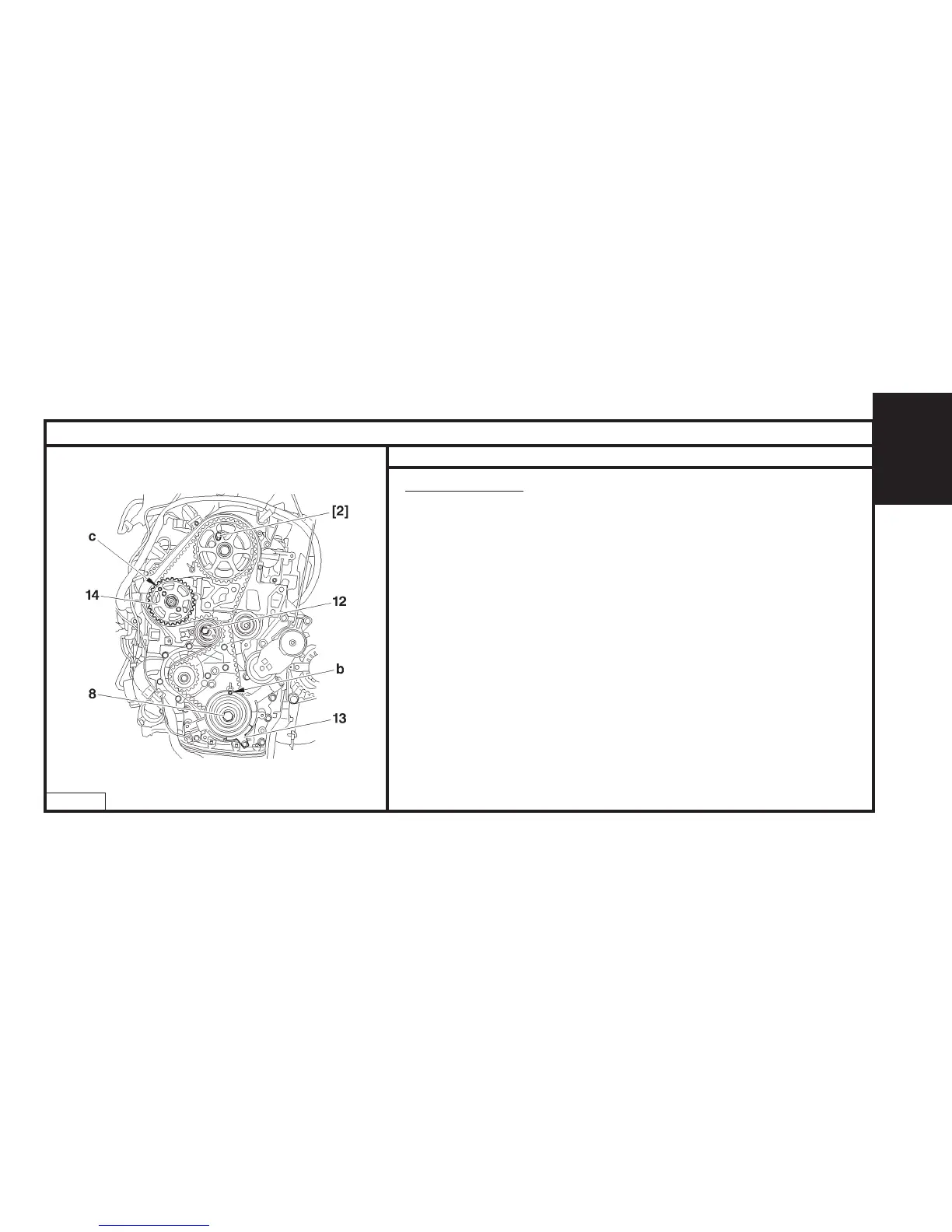

Peg :
- The camshaft, using tool [2]. (Oil the pegs.)
- The fuel high pressure pump pulley (14), using tool [3] at «c».
WARNING: The magnetic track should show no signs of damage and should not
be approached by any source of magnetism.
Peg the crankshaft at «b», using tool [3].
IMPERATIVE: Should it be impossible to peg the camshaft, check that the off-
set between the hole in the camshaft pinion and the pegging hole is not
greater than 1 mm.
Otherwise repeat the operation to position the timing belt. (See corresponding
operation).
