CITROEN C2 2004 - Page 107

103
ENGINE
CYLINDER HEAD
Engine: RFN
X =MAX. re-usable length
NOTE:
Oil the threads and
under the heads of the bolts
(use engine oil or Molykote G
Rapid Plus).
Pre-tightening
: 1,5 ± 0,2
Tightening : 5 ± 0,2
Destightening : 360 ° (1 turn)
Tightening : 2 ± 0,2
Angular tightening : 285° ± 5°
B1DP16FC
B1DP05BC
RFN
RFN
X = 147 mm

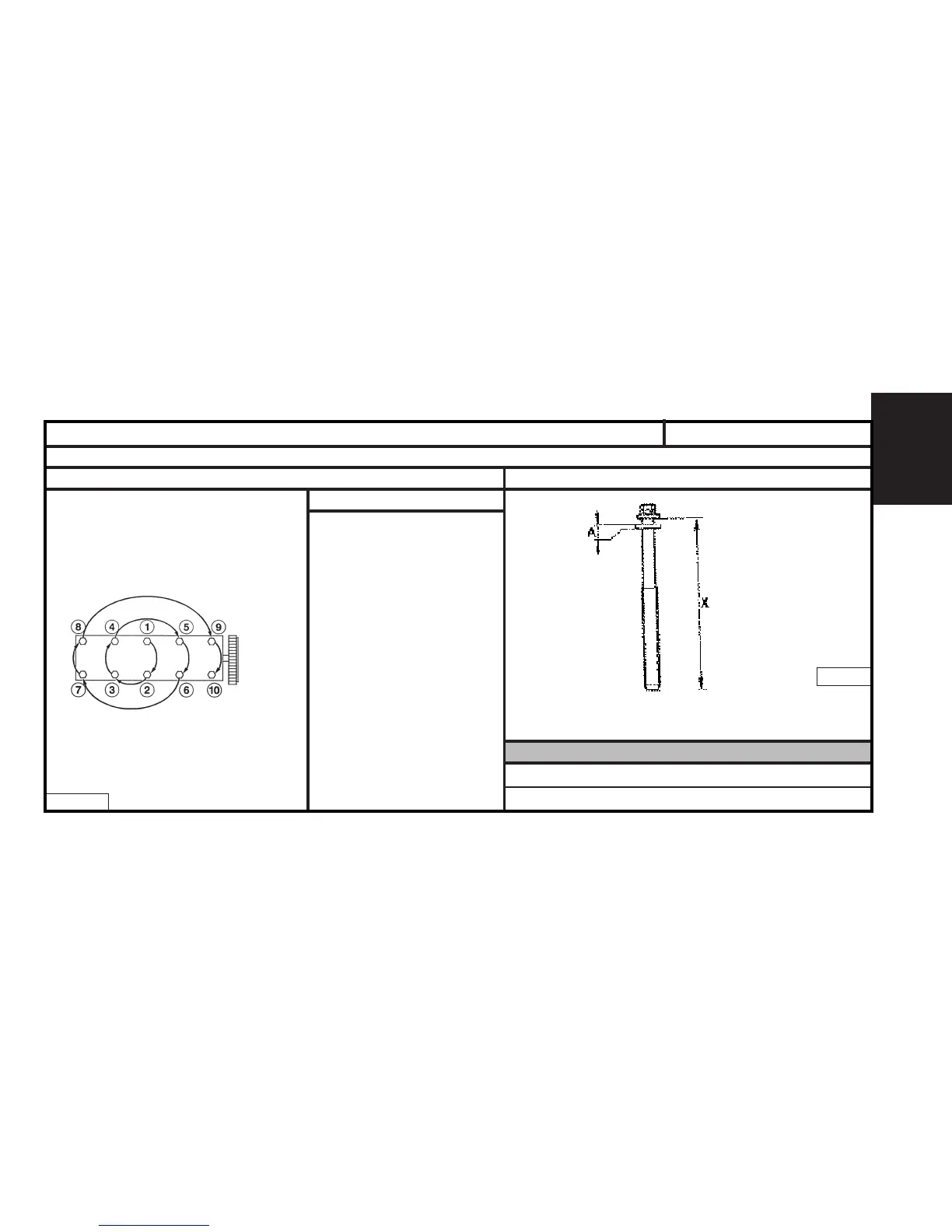

Cylinder head tightening (m.daN) One Cylinder head bolts
A = Washer thickness: 4 ± 0,2 mm.
X = Length under heads of new bolts = 144,5 ± 0,5 mm.
XSARA - XSARA PICASSO
