AXLES
SUSPENSION
STEERING
356
C2 AXLE GEOMETRY
B3CP07SD

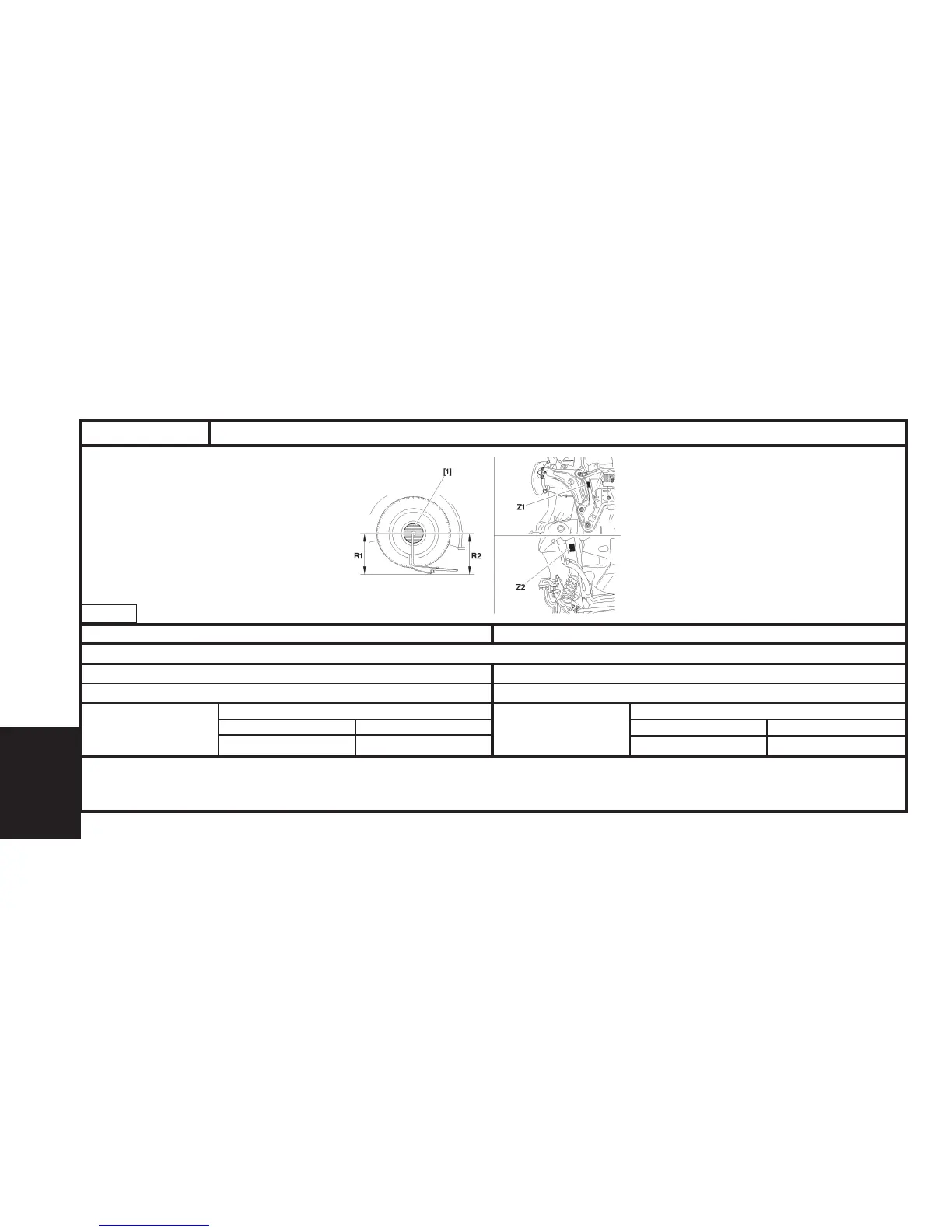

Measuring front height Measuring rear height
[1]
Gauge for measuring the wheel radius, 4 bolts, tool 8006-T
Z1
= Measuring zone underneath the front subframe. Z2 = Measuring zone underneath the rear sill.
Measure the radius of the front wheel
R1 - Calculate dimension H1 = R1 – L1 Measure the radius of the rear wheel R2 - Calculate dimension H2 = R2 + L2
Value at reference Except CRD (*) Value at reference Except CRD (*)
height HFX - KFV - 8HX NFU height HFX - KFV - 8HX NFU
(+ 6 - 8 mm) L1 = 142,5 mm L1 = 152,5 mm (+ 10 - 6 mm) L2 = 52 mm L2 = 42 mm
Compress the suspension to obtain the calculated values.
The height difference between the two axle dimensions should be less than
10 mm.
(*) = CRD: Difficult road conditions.
