CITROEN C2 2004 - Page 122

118
ENGINE
B1BP2LSC B1BP2LTC

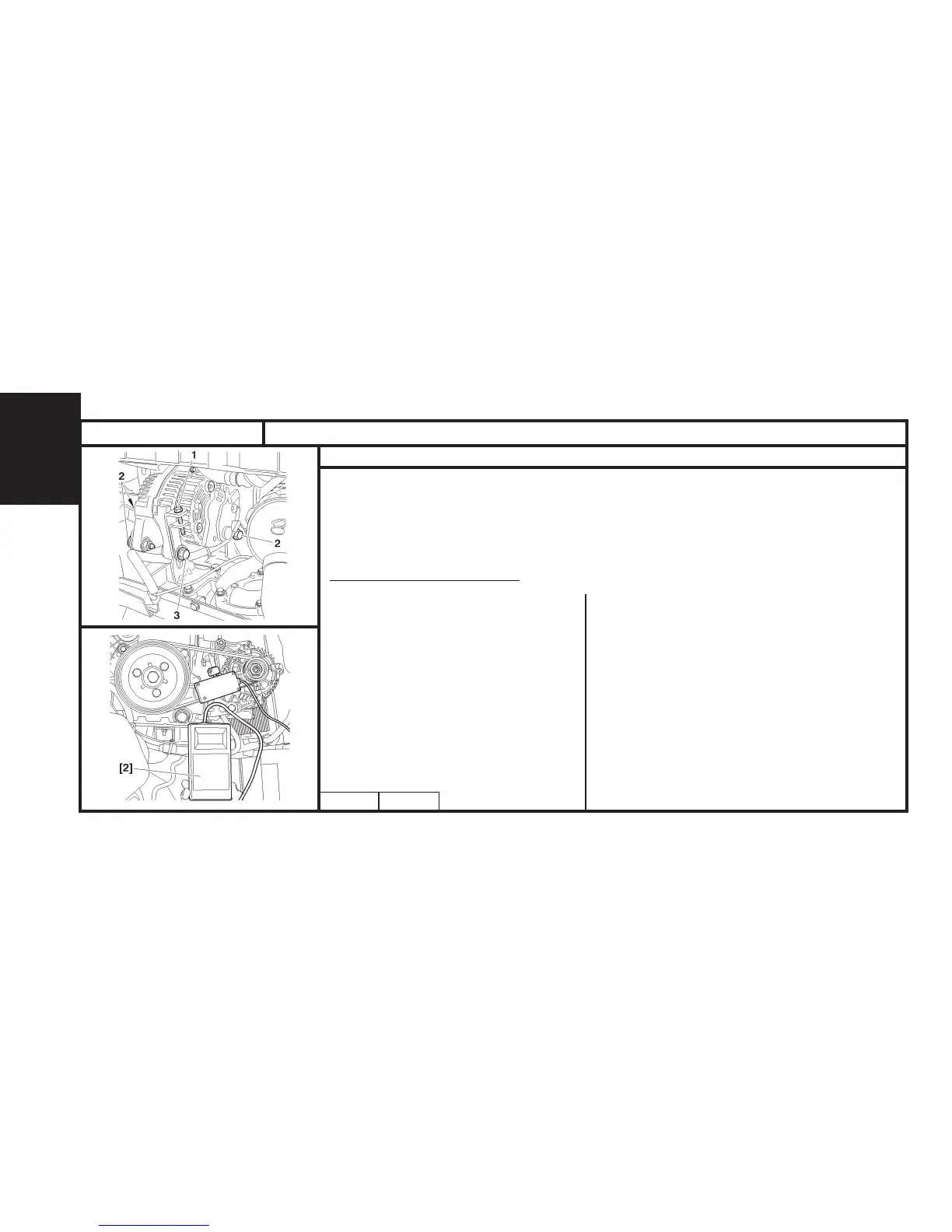

AUXILIARY EQUIPMENT DRIVE BELT
Engines: HFX - KFV - NFU
Tools.
[1]
Pliers for removing plastic pegs : 7504 –T
[2]
Belt tension measuring instrument : 4122-T
Vehicle without air conditioning.
Refit.
Refit the belt.
Respect the following sequence:
- Crankshaft pinion.
- Alternator pulley.
Place tool
[2] on the belt.
Tighten screw
(1) to achieve a tension of:
55 ± 3 SEEM units.
Tighten:
- Screw (3).
- Screw (2).
Remove tool
[2] and complete the refitting.
Remove.
Slacken:
- Screw (2).
- Screw (3).
- Tensioning screw (1).
Push the alternator back towards the engine.
Remove the belt.
C2 - C3 - C3 PLURIEL
