121
ENGINE
AUXILIARY EQUIPMENT DRIVE BELT
Engine: NFV
With air conditioning.
XSARA PICASSO
B1BP235C
Tools.
[1]
Pliers for removing plastic pegs : 7504 –T
[2] Belt tension measuring instrument : 4122 –T
[3] 10 mm square (drain spanner)
[4] TORX spanner
Remove.

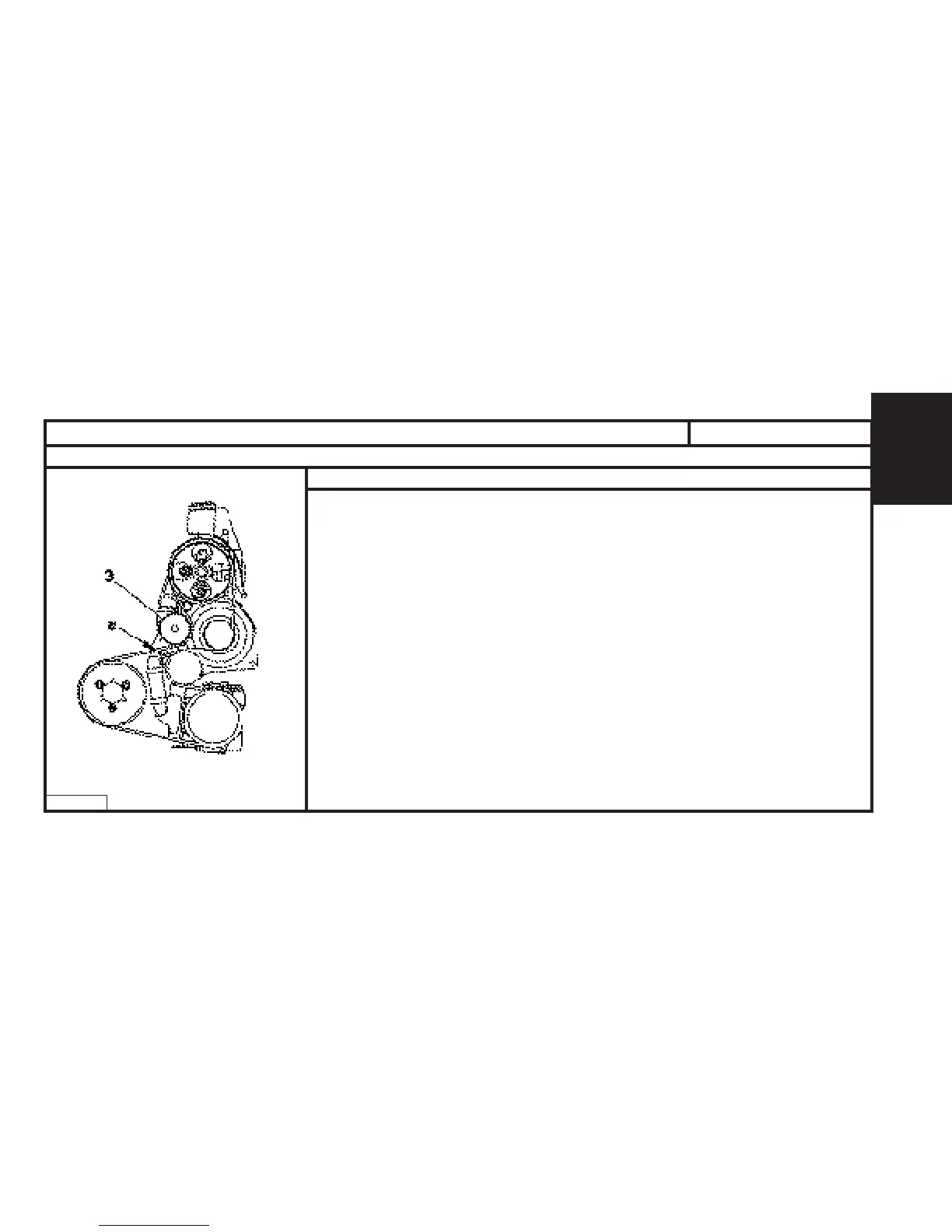

- Detension the automatic tensioner, tool [3].
- Place a Ø 6 mm peg at (a) to immobilise the automatic tensioner.
- Remove the belt.
Refit.
- Position the belt
- Detension the automatic tensioner, tool [3].
- Remove the Ø 6 mm peg.
- Release the automatic tensioner.
- Remove the tool
[3].
