133
ENGINE
XSARA
AUXILIARY EQUIPMENT DRIVE BELT 2002
Power-assisted steering with air conditioning.
Tools.
[1]
Dynamic tensioner peg : (-) 0188 H
[2] Belt tension measuring instrument : 4122-T
Removal.

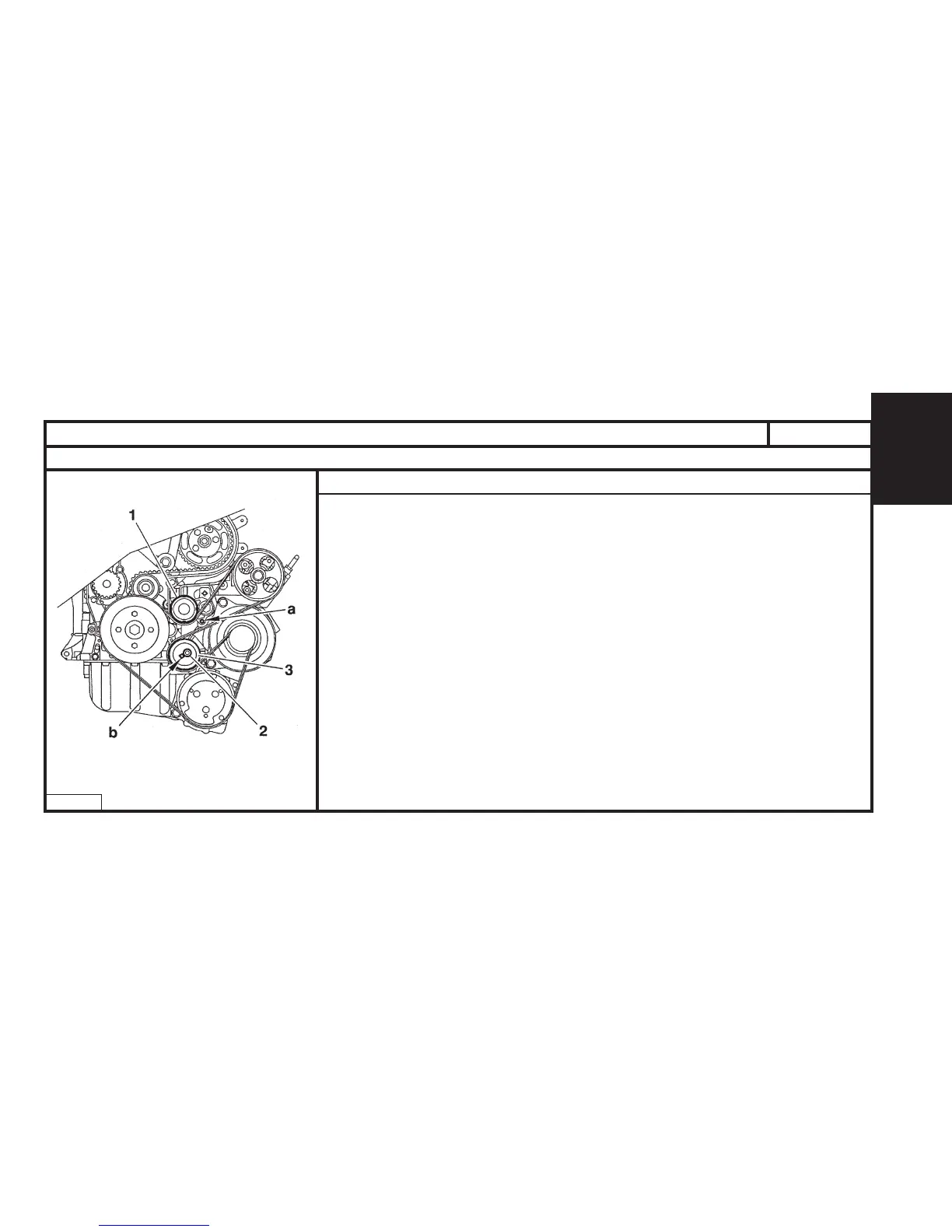

- Peg the dynamic tensioner (1) at "a", using tool [1].
- Loosen the screw (2) of the roller (3).
- Turn the roller (3) backwards.
- Remove the belt.
NOTE: If it can not be pegged at "a":
- Loosen the screw (2) of the roller (3).
- Using a
7 mm square drive, turn the roller (3) at "b".
- Peg the tensioner (1) at "a", using tool [1].
NOTE: If the belt is broken:
- Support the engine using a jack (insert a wooden block between the housing and the jack).
- Remove the right engine support.
- Using a square drive at (b) turn the tool (3) in the direction of the arrow "a", so that it can be
pegged at
"a" using the tool [1].
B1BP1SKC
Engine: WJY
