ENGINE
XSARA
AUXILIARY EQUIPMENT DRIVE BELT 2002
Tools.
[1]
Dynamic tensioner compression lever : (-).0188.Z
[2]
Peg for dynamic tensioner roller : (-).0194.F
Removing.
IMPERATIVE: Respect the safety and cleanliness requirements specific to high pressure
diesel injection engines (HDi).
Remove:
- The front RH wheel.
- The under-engine sounddeadening.
- The splash-shield.
WARNING: Mark the direction of fitting of the accessories drive belt, if it is to be re-used.

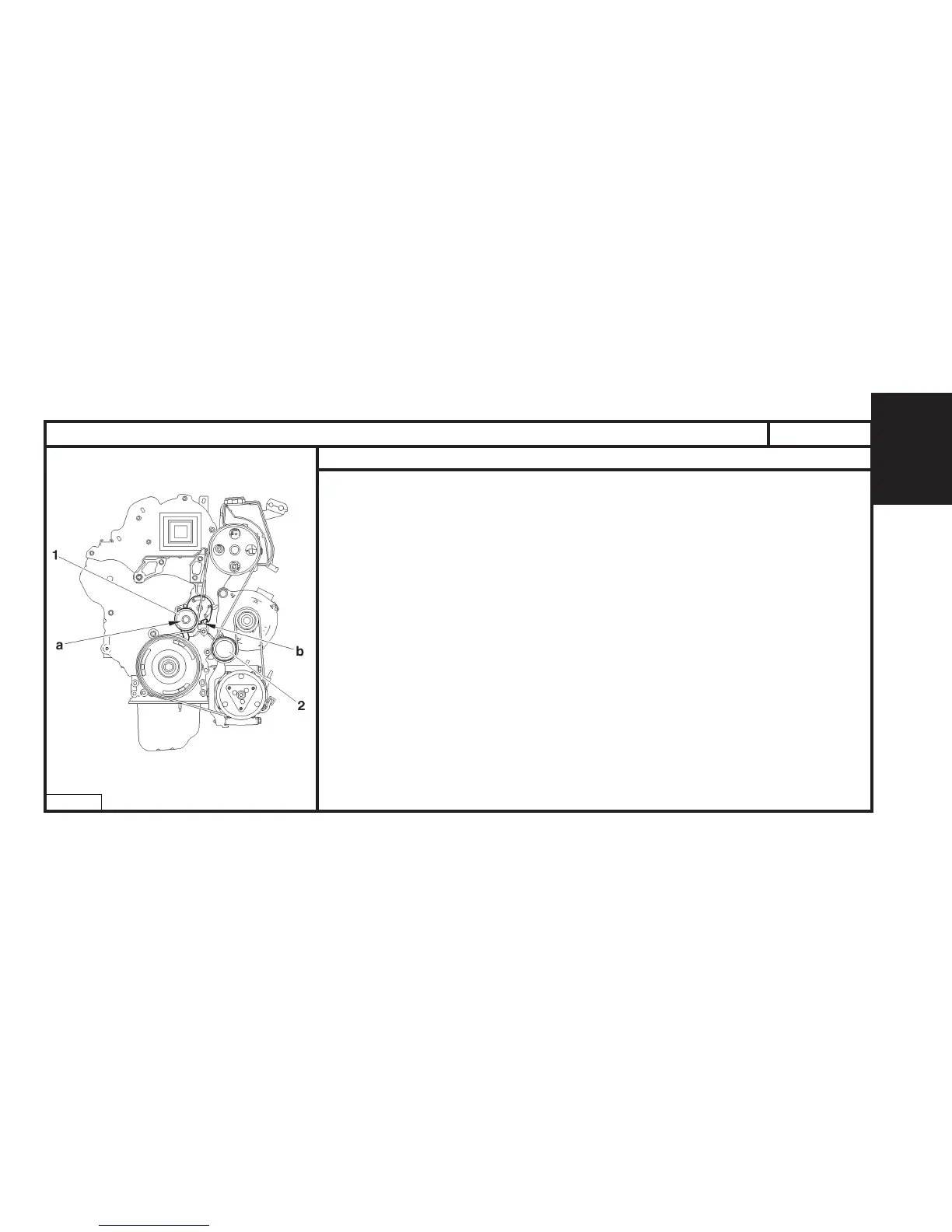

Compress the tensioner roller (1) by acting at «a» (clockwise), using tool [1].
Peg at «b», using tool [2].
Keeping the tensioner roller (1) compressed, remove the accessories drive belt.
IMPERATIVE: Check that the rollers (1) and (2) can turn freely (without play and without
tight spots)
.
