CHECKING AND SETTING THE VALVE TIMING
Engines: 6FZ - RFN 2003 #

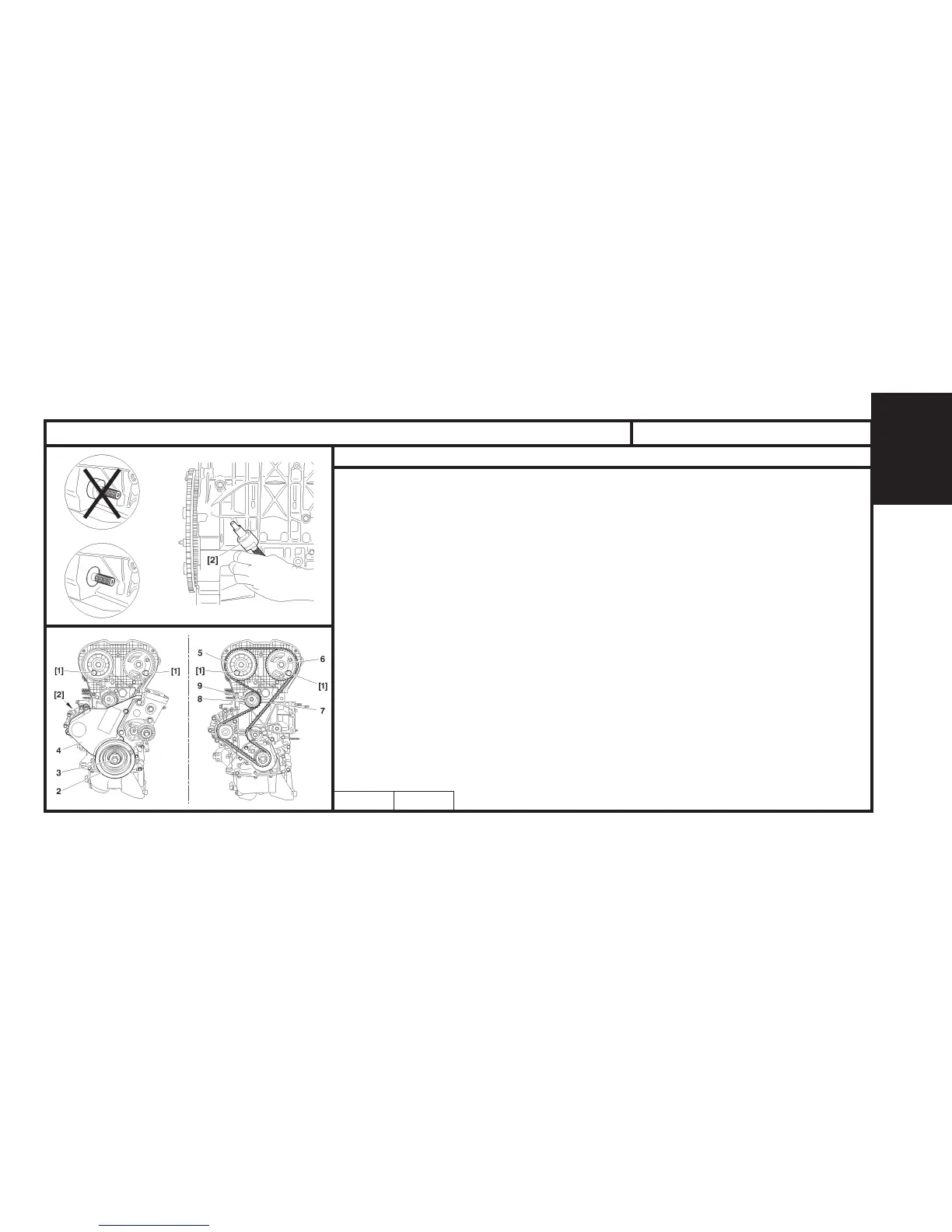

Setting the timing (continued).
A:
Pegging on the manual gearbox.
B: Pegging on the automatic gearbox.
Peg:
- The crankshaft, using tool
[2].
- The camshaft pulleys (5) and (6), using tool [1].
Remove:
- The screw
(3) of the crankshaft pulley (2).
- The lower timing cover (4) (by moving the engine).
IMPERATIVE: Never remove the crankshaft pulley (2) without pegging the crankshaft
and the camshafts.
Slacken the screw (9) of the tensioner roller (8).
Turn the tensioner roller (8) (clockwise).
Remove the timing belt (7).
I
MPERATIVE: Systematically replace the following components: timing belt, exhaust
manifold fixing nuts, timing belt tensioner roller nut.
