CHECKING AND SETTING THE VALVE TIMING
Engine: RFS
Remove:
- The peg [3].
- The screw (4) (brush the screw thread).
- The pulley
(5).
- The lower cover (6).
Remove:
- The tool [6].
- The studs (8).
- Fit the tool [4].
- Loosen the screws (10).
- Remove the tool
[4].
- Slacken the tensioner roller (7).
- Remove the belt (9).
- Peg the crankshaft using tool
[3].
- Peg the camshaft pulleys using tool [2].
- Lock the flywheel using the tool [6].
Refit:
- The pulley (5).
- The screw
(4) (tighten moderately).
- The peg [3].
B1EP120C
B1EP11ZC

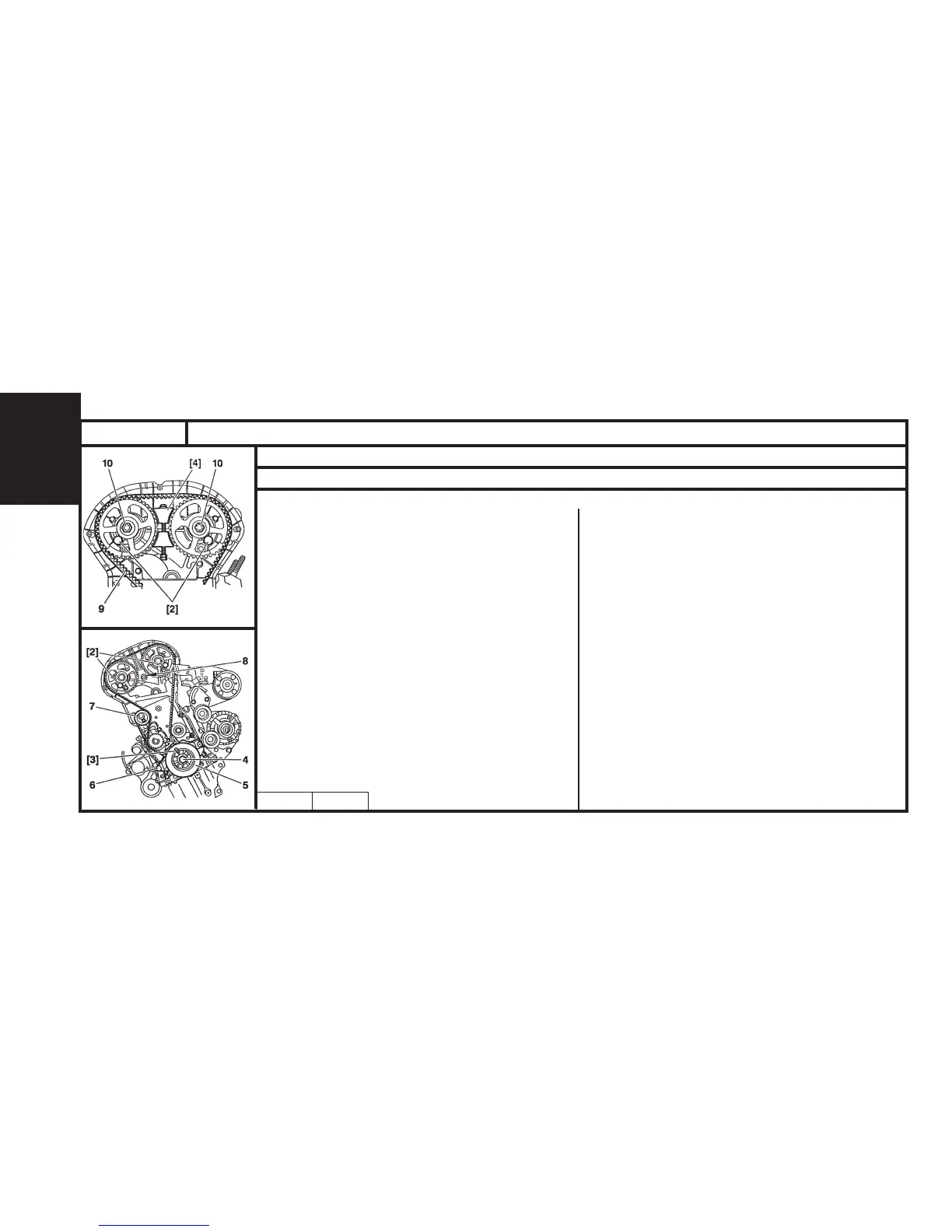

Setting the valve timing.
