ENGINE
189
CHECKING AND SETTING THE VALVE TIMING
Engines: 8HX - 8HW - 8HZ
B1EP18JD
Setting the timing (continued).
NOTE: Screw (9) slackened.

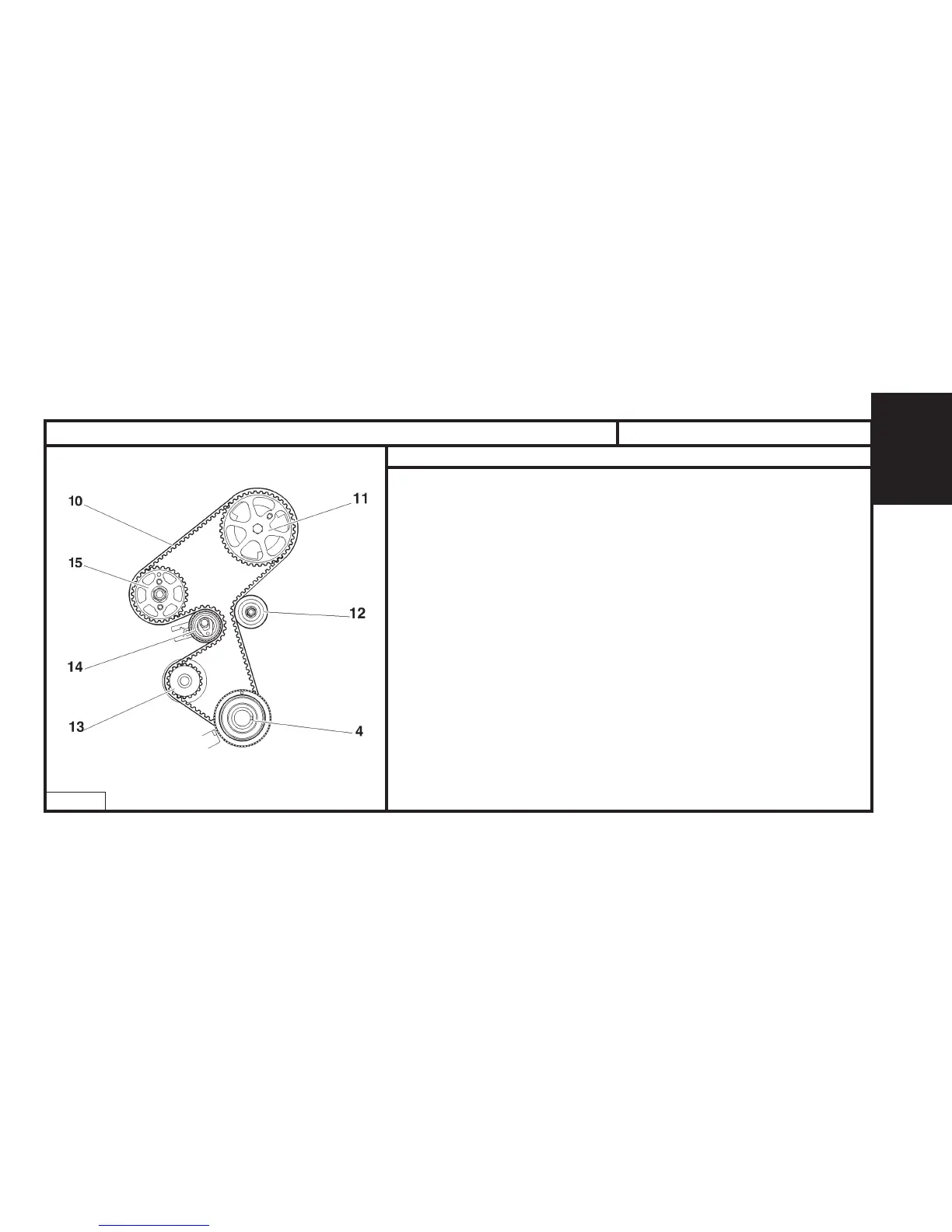

Position the timing belt (10) observing the following sequence:
- Crankshaft pinion (4).
- Guide roller (12).
Camshaft pulley (11) (check that the belt is held correctly against the roller).
Coolant pump pinion (13).
Fuel high pressure pump pulley (15).
Tensioner roller (14).
C2 - C3 - C3 PLURIEL - XSARA
