224
ENGINE

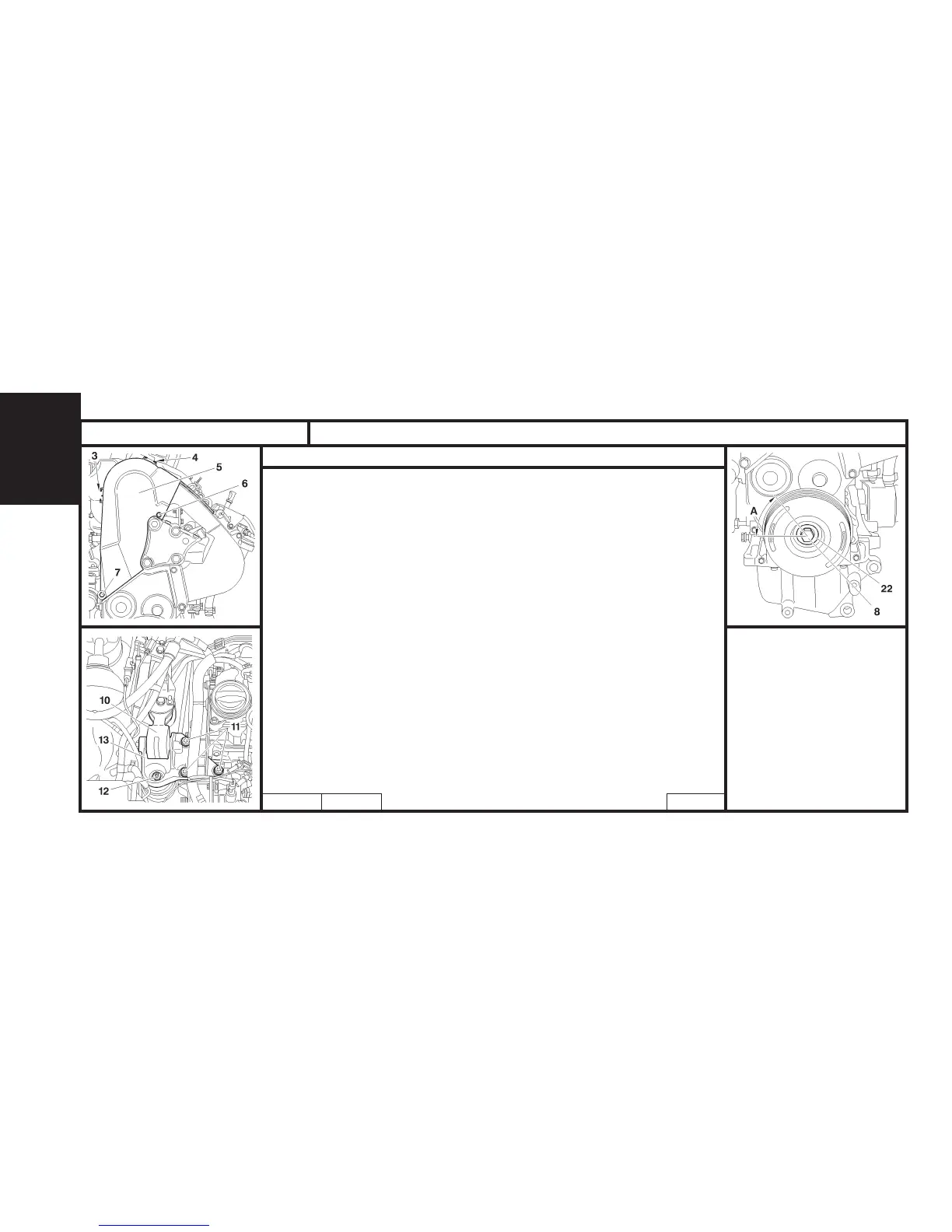

CHECKING AND SETTING THE VALVE TIMING
Engines: RHY - RHZ N° RPO 9128 #
Remove:
- Tools [3] and [5].
- Screw (7) and the spacer.
Refit:
- The lower, intermediate and upper covers (5).
- Screw (7), tighten to 1,5 ± 0,1 m.daN.
- Screws (3), (4) and (6).
- The bracket (13).
- Screws (11), tighten to 6,1 ± 0,5 m.daN.
- The nut (12), tighten to 4,5 ± 0,5 m.daN.
Fit the bearing shell (10).
Take away the workshop hoist.
Clip the fuel delivery and return pipes. Remove the tool [7].
Couple:
- The fuel delivery pipe (12).
- The fuel return pipe (1).
Coat the screw (8) with loctite FRENETANCH.
Refit the tool [6] and the screw (8) with the washer (22),
Tighten to 7 ± 0,2 m.daN and angular tighten to A = 60° ± 5°.
Refit the torque reaction rod on the lower engine support.
Remove the tool [6].
Reposition and reclip the cooling hose.
Complete the refitting of components in reverse order to removal.
