369
AXLES
SUSPENSION
STEERING
C3 PLURIELAXLE GEOMETRY
B3CP07SD

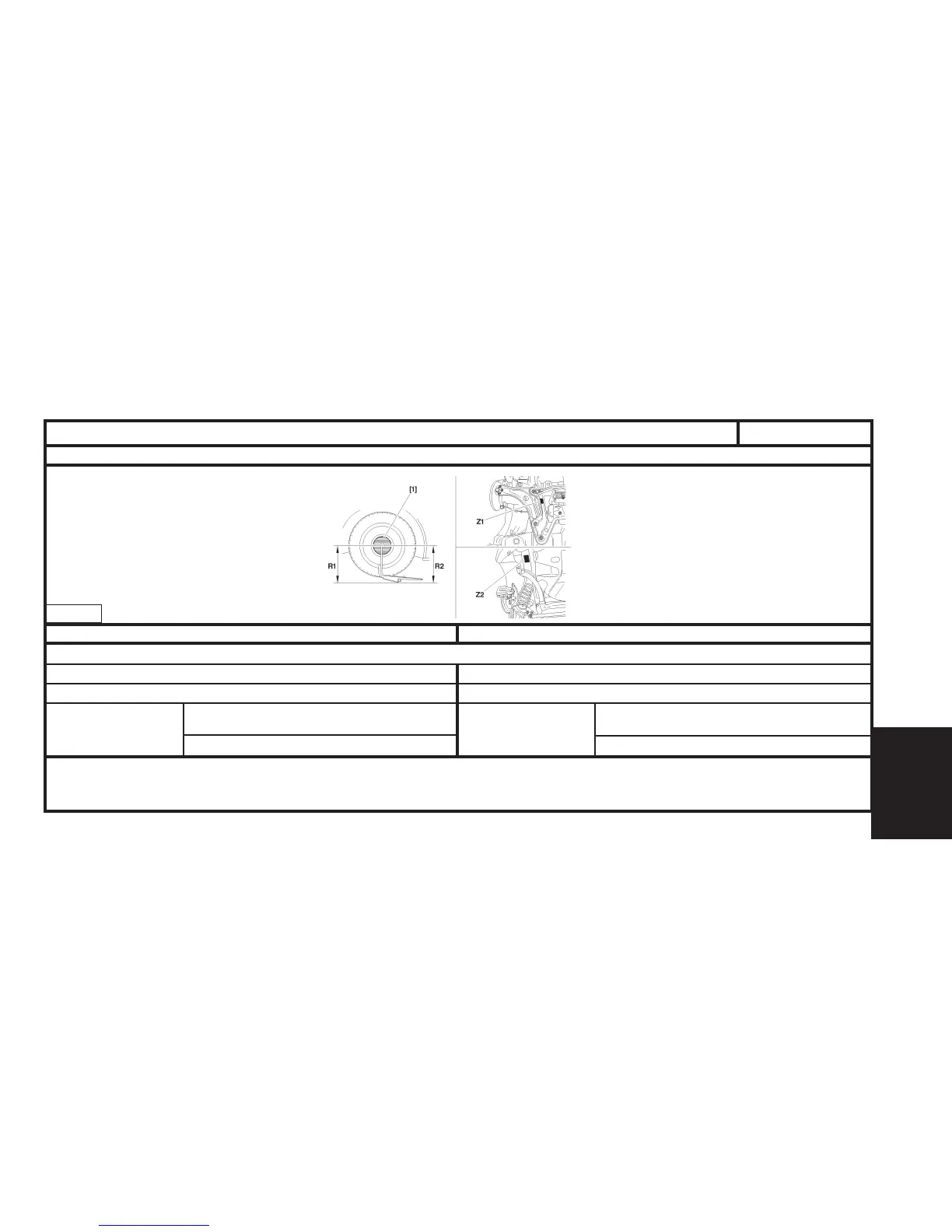

Measuring front height Measuring rear height
[1]
Gauge for measuring the wheel radius, 4 bolts, tool 4003-T
Z1
= Measuring zone underneath the front subframe. Z2 = Measuring zone underneath the rear sill.
Measure the radius of the front wheel
R1 - Calculate dimension H1 = R1 – L1 Measure the radius of the rear wheel R2 - Calculate dimension H2 = R2 + L2
Value at reference
All Types
Value at reference
All Types
height height
(+ 6 - 8 mm) L1 = 132,5 mm (+ 10 - 6 mm) L2 = 47 mm
(*) = CRD : Difficult road conditions.
Definition for a type of vehicle whose axles and suspensions are adapted for driving on rough roads.
Compress the suspension to obtain the calculated values. The height difference between the two axle dimensions should be less than 10 mm.
Checks at reference height
