XSARAFRONT AXLE

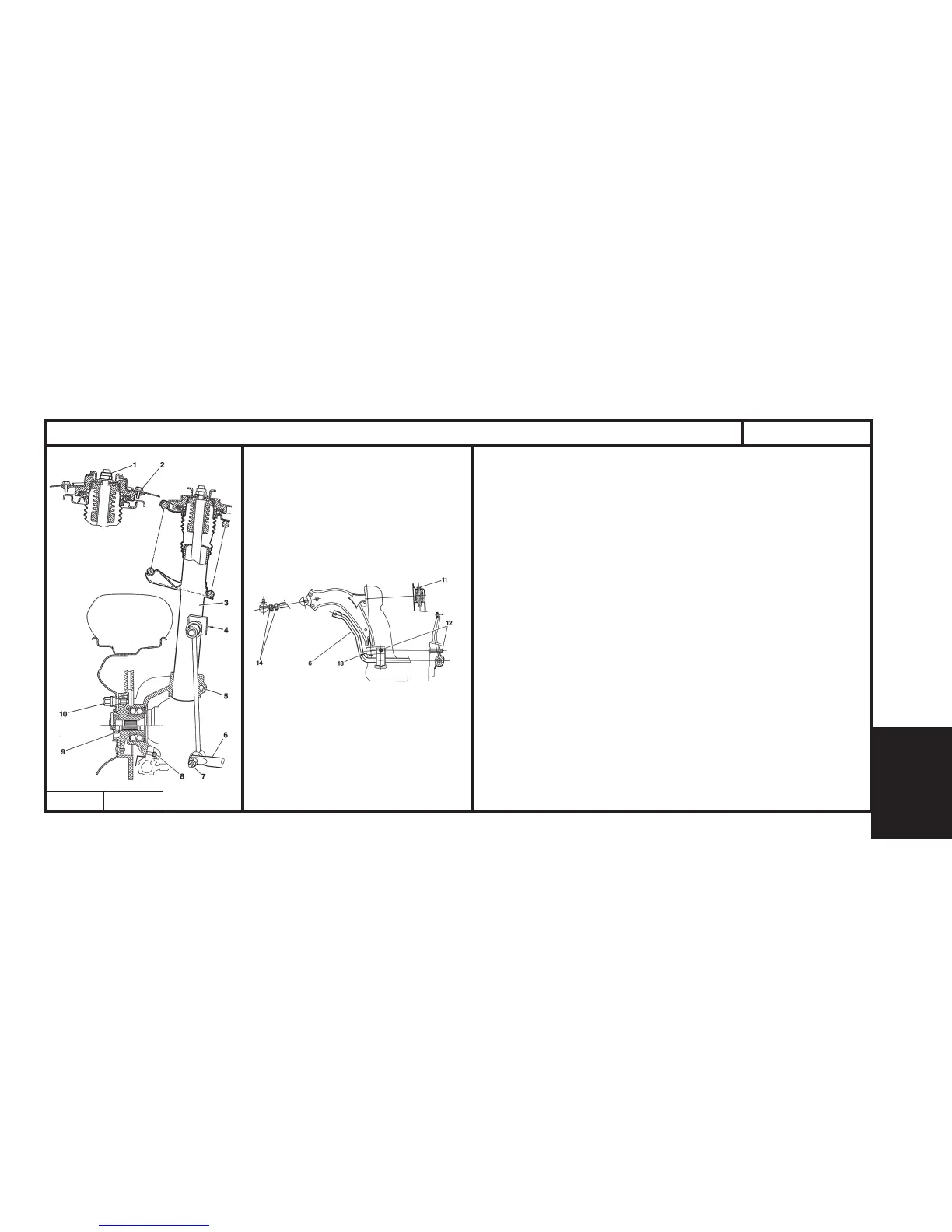

Tightening torques (m.daN).
(1) Damper nut : 4,5 ± 0,4
(2) Cup screw : 2,5 ± 0,3
(3)
Suspension leg
(4) Anti-roll bar link rod upper ball-joint : 3,7 ± 0,3
(5)
Suspension leg pivot (hollow pivot) : 4,5 ± 0,5
(5) Suspension leg pivot (pivot «H») : 5,5 ± 0,5
(6)
Anti-roll bars
(7) Anti-roll bar link rod lower ball-joint : 3,7 ± 0,3
(8) Pivot lower ball-joint : 4 ± 0,4
(9) Driveshaft nut : 32,5 ± 2,5
(10) Wheel bolt : 9 ± 1
(11)
Lower arm front mounting : 7,6 ± 0,7
(12) Lower arm rear mounting
and anti-roll bar bearing : 6,8 ± 0,6
(13) Screw under rear mounting : 3,1 ± 0,3
(14)
Ball-joint fixing on lower arm : 5 ± 0,5
Subframe to bodyshell fixing screw : 8,5 ± 0,8
