HANDBRAKE (Adjustment)
Adjustment (continued).
(10)
Nut for adjusting cable tensions
Remove:
- The rear wheels.
- The drums
(according to version).
Release the handbrake.

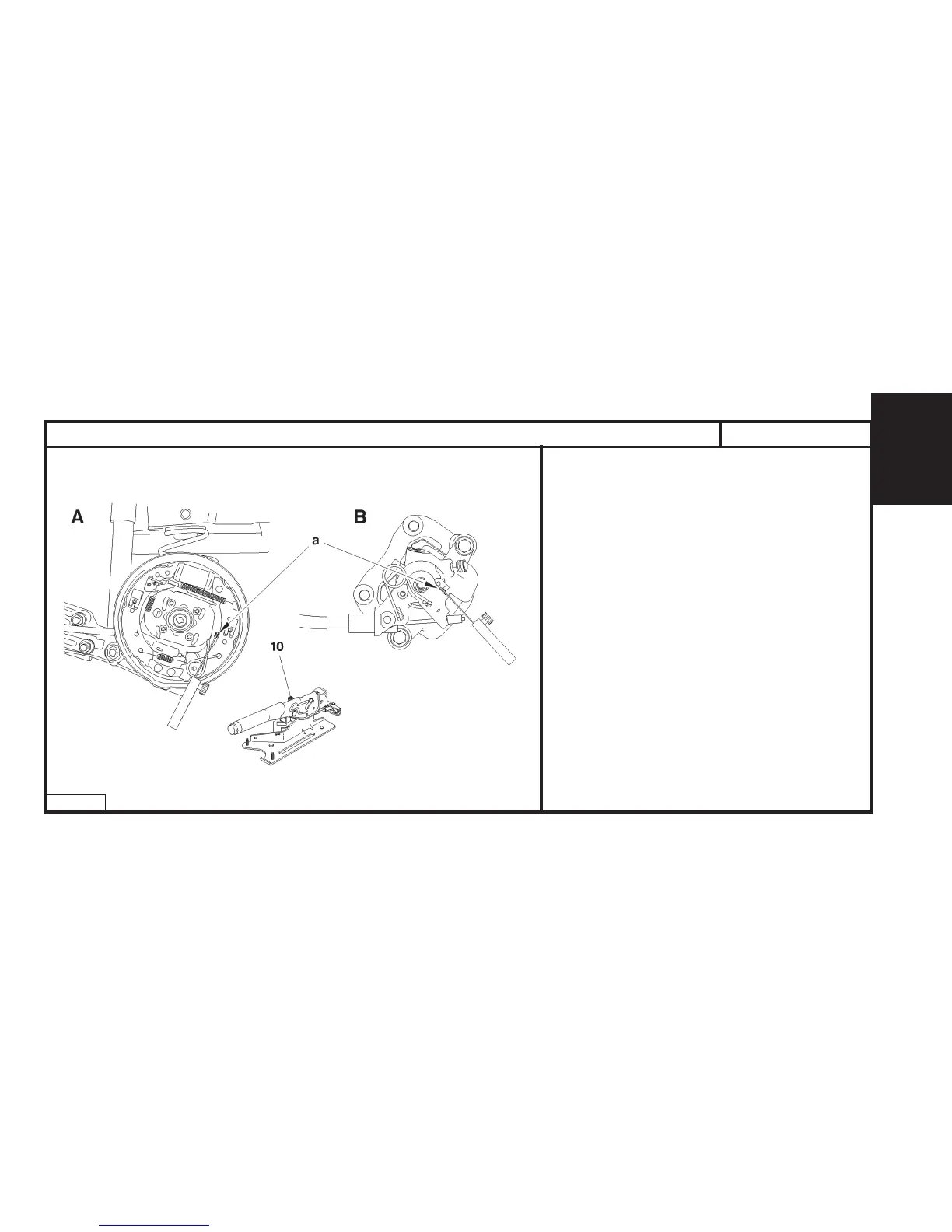

Use a gauge set to measure at «a» the travel of the lever
from its stop.
Adjust the nut
(10) to obtain a travel of less than or equal
to 1 mm at «a».
Refit the brake drums without tightening them (accor-
ding to version)
.
Action the handbrake lever 8 times with an effort of
40 m.daN.
With the handbrake released, check the travel of the
lever at
«a», using a gauge set.
NOTE: The travel should be less than 1 mm and more
than 0,05 mm.
Refit:
- The brake drums.
- The wheels.
- The central console.
Check the operation of the handbrake.
