SPECIAL FEATURES: AIR CONDITIONING SYSTEM (R 134.a)
Changing the filtering/drying cartridge
Refitting.
Remove the new cartridge from its packaging.
Do not expose the cartridge, the filter and seals to pollutants.
Lightly oil the seals
(compressor oil).
Remove tool [5] from the reservoir (6).
Insert the new cartridge (5) into the reservoir (6).
Refit the safety circlip (4), using tool [6].
Make sure that the circlip
(4) is correctly positioned in its location.
WARNING: Not more than 5 minutes should elapse between the removal of
the cartridge (6) from its packaging and its being fitted.
Refit:
- The plastic cap
(3), using tool [5] - Tighten to 1,2 ± 0,1 m.daN.
- The condenser (reclip, pushing at «b» and «c»).
- The plastic cover and the pins at «a».
- The grille (2).
- The screws
(1).
Proceed to:
- Recharge the circuit
(see corresponding operation).
- Check the operation of the air conditioning (see corresponding operation).

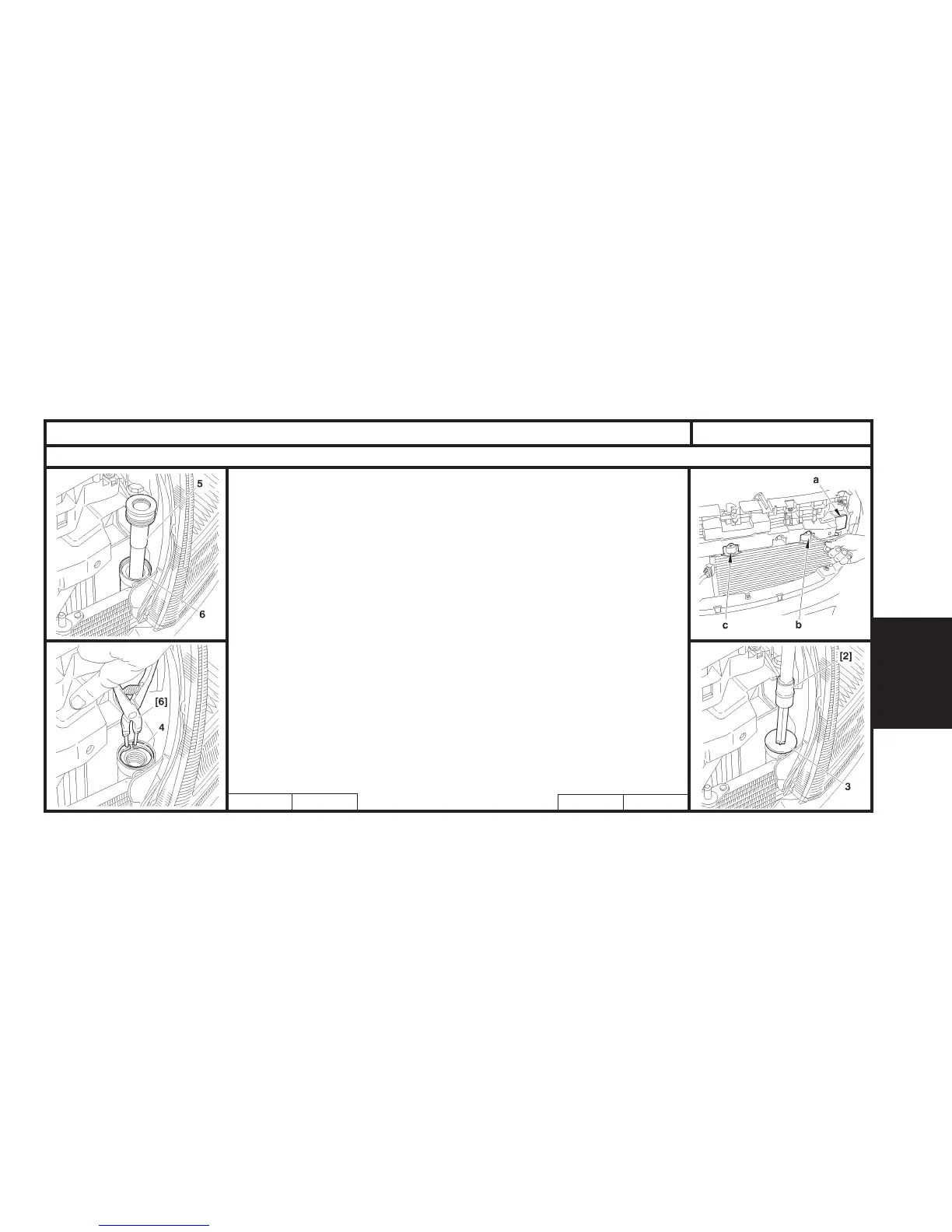

C4AP167C C4AP165C
C4AP164CC4AP163C
C2 - C3 - C3 PLURIEL
