Lateral airbags
Deployment
Alateralairbagisdeployedunilaterallyinthe
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
tothelongitudinalcentrelineofthevehicleona
horizontal plane and directed from the outside
towardstheinsideofthevehicle.
Thelateralairbaginflatesbetweenthehipand
shoulder of the front occupant of the vehicle
andthecorrespondingdoortrimpanel.
System which protects the driver and front
passengerintheeventofaserioussideimpact
inordertolimittheriskofinjurytothechest,
betweenthehipandtheshoulder.
Eachlateralairbagisfittedintheseatbackrest
frame,doorside.

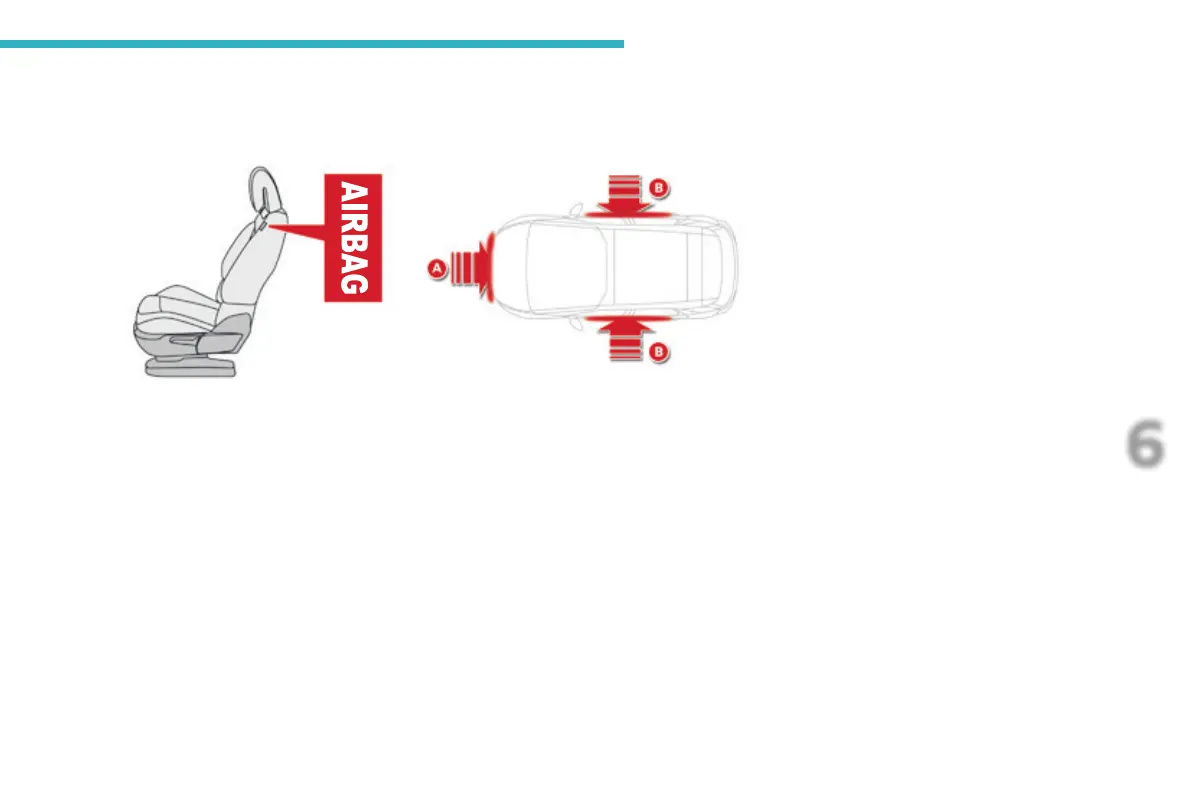

Impact detection zones
A. Frontimpactzone.
B. Sideimpactzone.
