CITROEN C4 PICASSO - Dashboard Fuses

312
In the event of a breakdown
C4-Picasso-II_en_Chap08_en-cas-panne_ed01-2016
Dashboard fuses
Thetwofuseboxesarelocatedinthelowerdashboard(left-handside).
Access to the fuses
F Referto"Accesstothetools".
Fuse tables

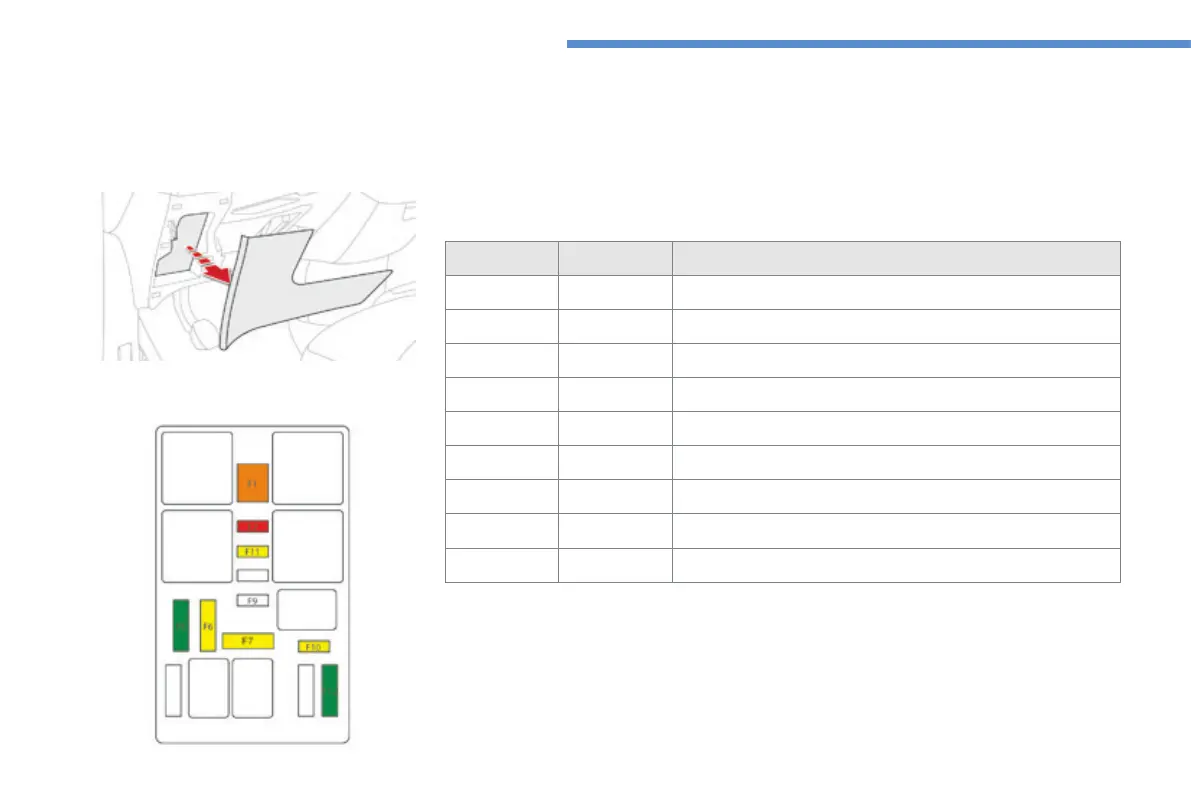

Fusebox 1
Fuse N° Rating Functions
F1 40 A Heatedrearscreen.
F2 20 A Electricdoormirrors.
F5 30 A Panoramic sunroof blind
F6 20 A 12Vsocket,rearmultimedia.
F7 20 A 230Vsocket.
F9 25 A Heatedseats.
F10 20 A Trailerinterfaceunit.
F11 20 A Airconditioningfan.
F12 30 A Electricwindowmotors.
