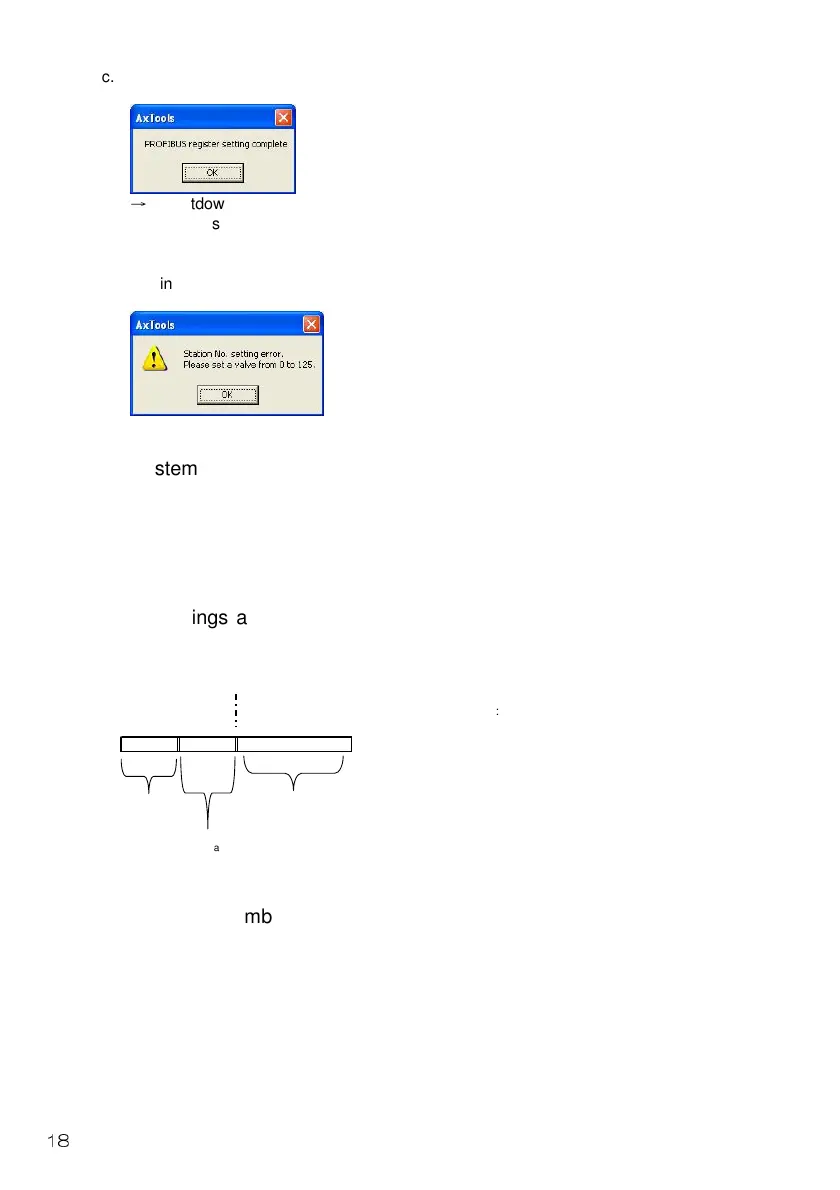

c. End of setting

After the settings are normally entered, a completion screen is displayed.

→

Shutdown and restart the power after finishing configuration.

Settings for station No. will take effect after the power has been restarted.

d. Error in setting

The following screen is displayed if there is an error in the station number setting.

* If the system is initialized, PROFIBUS register settings will return to default

settings. Set the PROFIBUS register setting again after initializing the system.

* To enter settings at the Dialogue Terminal, send the following communication

code in the terminal mode.

Example: "Station number 25"

The setting is "0F19H" according to hexadecimal notation and it is "3865D" according to

decimal notation. In the terminal mode, send "L7_61_3865" to enter the station number and

baud rate.

Default parameter value:

H’0F63 (D’3939)

Word data

Others Baud rate

Station No.

Not used

Fixed to H’F

(auto baud rate)

Station No.(2 digit hex)

H’0 to H’7D (0 to 125)

(Default: H’63(D’99))

(Upper 8 bits) (Lower 8 bits)
