299 211.0 - RHB klappbares SW 4,50 m - 5,40 m LEXION 2.1.1
Crop dividers
CROP DIVIDERS

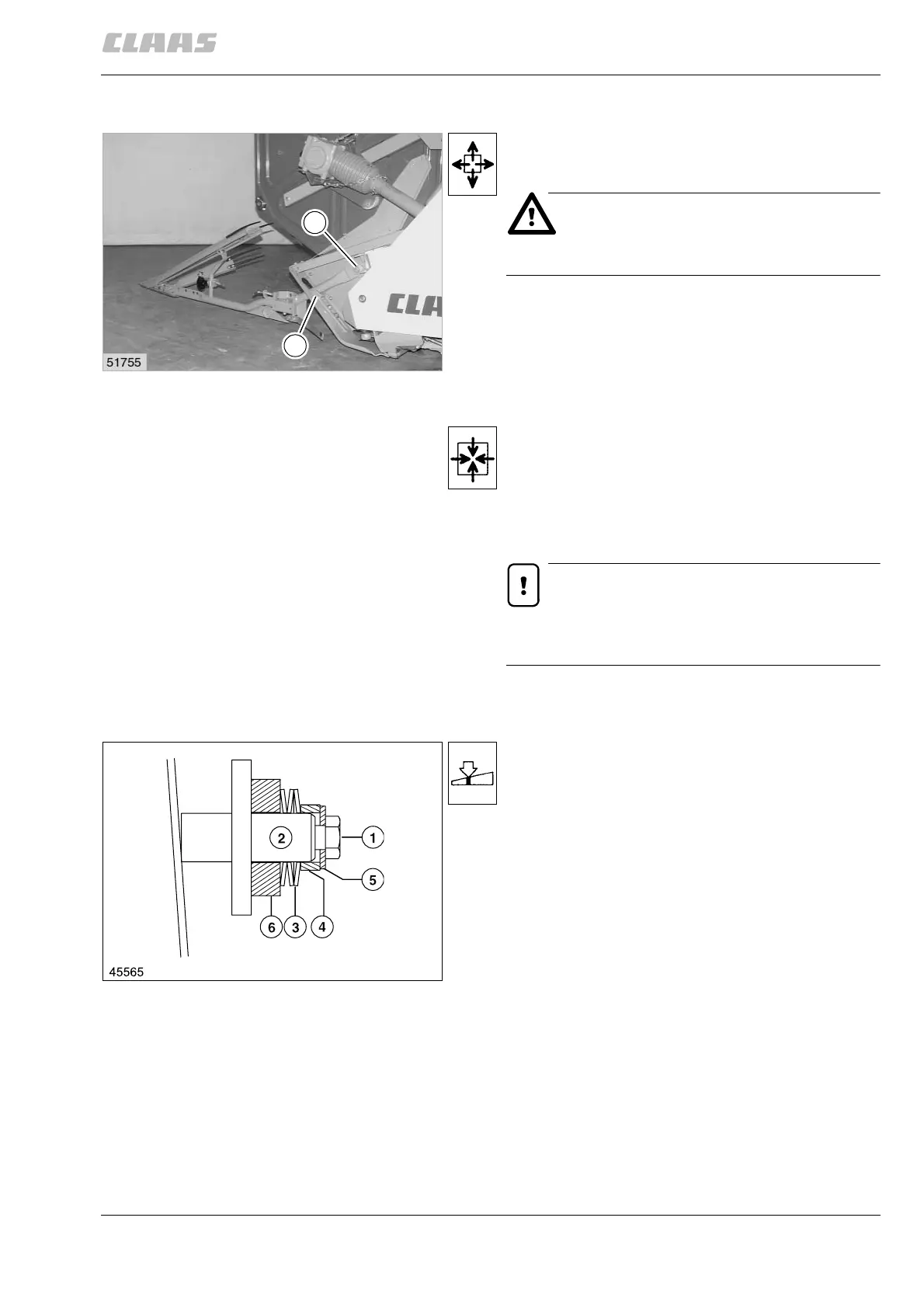

Removing the long / short crop dividers
Move cutterbar to working position.
DANGER!
Stop the engine and remove the ignition key.
Unscrew the hexagon bolts (1).
Remove Belleville springs (3) and the spacer tube (4).
Remove both crop dividers.
(Fig. 1, 2)
Installing the long / short crop dividers
Guide crop divider through the front openings and
slide it on the stubs (2) on the side walls.
Bolt down crop divider with Belleville springs (3),
spacer tube (4) and hexagon bolts (1) with contact
washers (5).
CAUTION!
Observe installation position of Belleville
springs (3).
(Fig. 2)
Set the height of adjusting plates (7) so that the crop
divider tips will not permanently trail over the ground
and not hit the ground when going over bumps.
1 Hex. bolt M 12 x 35 DIN 933-8.8
2Stub
3 Belleville springs
4 Spacer tube
5 Contact washer B 12
6 Crop divider carrier tube
7 Adjusting plate
(Fig. 1, 2)
1
7
1
2
Crop dividers
