2.1.2 RHB klappbares SW 4,50 m - 5,40 m LEXION - 299 211.0
Crop dividers

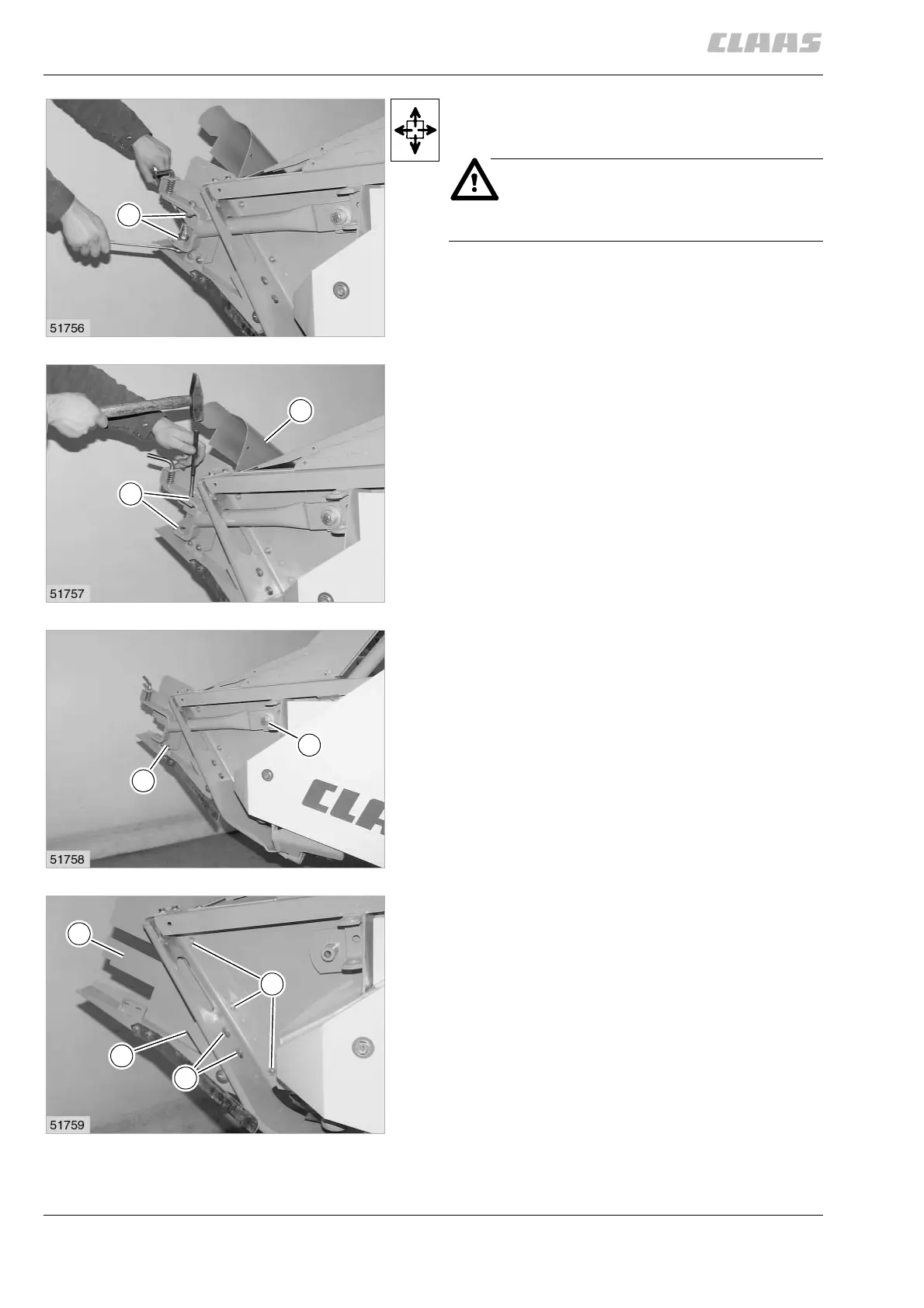

Removing the special crop dividers
Move cutterbar to working position.
DANGER!
Stop the engine and remove the ignition key.
Unscrew the hex. bolts (14).
(Fig. 3, 7)
Drive out the expansion pins (17) and remove crop
divider (13).
(Fig. 4, 7)
Loosen hexagon bolt (21) and hexagon bolts (15) and
remove crop divider tube (8).
(Fig. 5, 7)
If required, the extension (3) with its bracket (5) may
be removed. To do this, unscrew bolts (A and B).
(Fig. 6, 7)
14
3
13
17
4
21
15
5
3
A
5
B
6
