Clack WS1EI User Manual

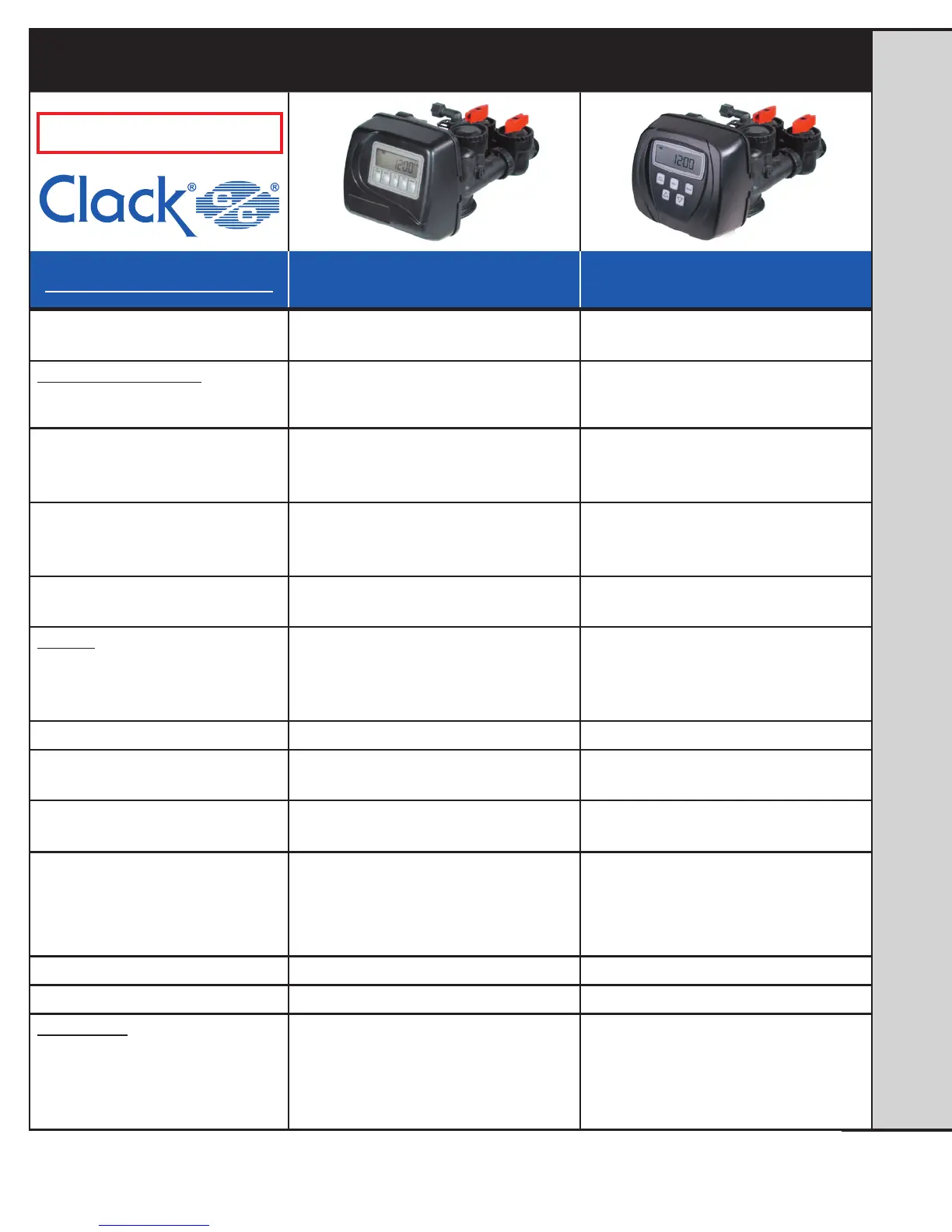

1” Water SpecialiSt ValVe SpecificationS
SPECIFICATIONS
WS1 WS1CI
Service @ 1 bar/15 psi drop
Backwash @ 1.7 bar/25 psi drop
102 lpm, 6.1 m
3
/h (includes meter and bypass)
102 lpm, 6.1 m
3
/h (includes bypass)
102 lpm, 6.1 m
3
/h (includes meter and bypass)
102 lpm, 6.1 m
3
/h (includes bypass)
Tank Applications:
Softener
Filter (1)
6” - 21” diameter
6” - 21” diameter
6” - 21” diameter
6” - 21” diameter
Inlet/Outlet
Fitting Connections
3
⁄4” - 1.25” Male BSPT
3
⁄4” - 1.5” Sweat
3
⁄4” - 1.5” Solvent
3
⁄4” - 1.25” Male BSPT
3
⁄4” - 1.5” Sweat
3
⁄4” - 1.5” Solvent
Valve Material
Cycles
Regeneration
Noryl (2)
Up to 6
Downow/Upow
Noryl (2)
Up to 9
Downow/Upow
Operating Pressures
Operating Temperatures
1.4 - 8.6 bar
4° - 43° C
1.4 - 8.6 bar
4° - 43° C
Meter:
Flow Rate Range
Volume Range
(cubic meters)
Totalizer
.95 - 102 lpm
.07 - 189m
3
Yes
.95 - 102 lpm
.10 - 2000.0m
3
Yes
Distributor Pilot
1.050 O.D. Pipe 1.050 O.D. Pipe
Drain Line Connection
3
⁄4” Male NPT Standard
1” Male NPT Optional
3
⁄4” Male NPT Standard
1” Male NPT Optional
Brine Line Connection
3
⁄8” or
1
⁄2” O.D.
Poly Tube Compression
3
⁄8” or
1
⁄2” O.D.
Poly Tube Compression
Mounting Base Options
2
1
⁄2” - 8 NPSM 2
1
⁄2” - 8 NPSM
Height From Top of Tank
187mm 187mm
Shipping Weight
2 Kg 2 Kg
Electrical:
Supply Voltage
Supply Frequency
Output Voltage
Output Current
230V AC
50 Hz
12V AC
500 mA
230V AC
50 Hz
12V AC
500 mA
1. Filter tank size calculated @ 407 lpm per m
2
of bed area/10 gpm of backwash per square foot of bed area
2. Noryl is a trademark of Sabic Innovative Plastics IP B.V. Company
INTERNATIONAL

Clack WS1EI Specifications

General

Brand	Clack
Model	WS1EI
Category	Control Unit
Language	English
