Clarion apa2102 User Manual

OPERATION/INSTALLATION MANUAL

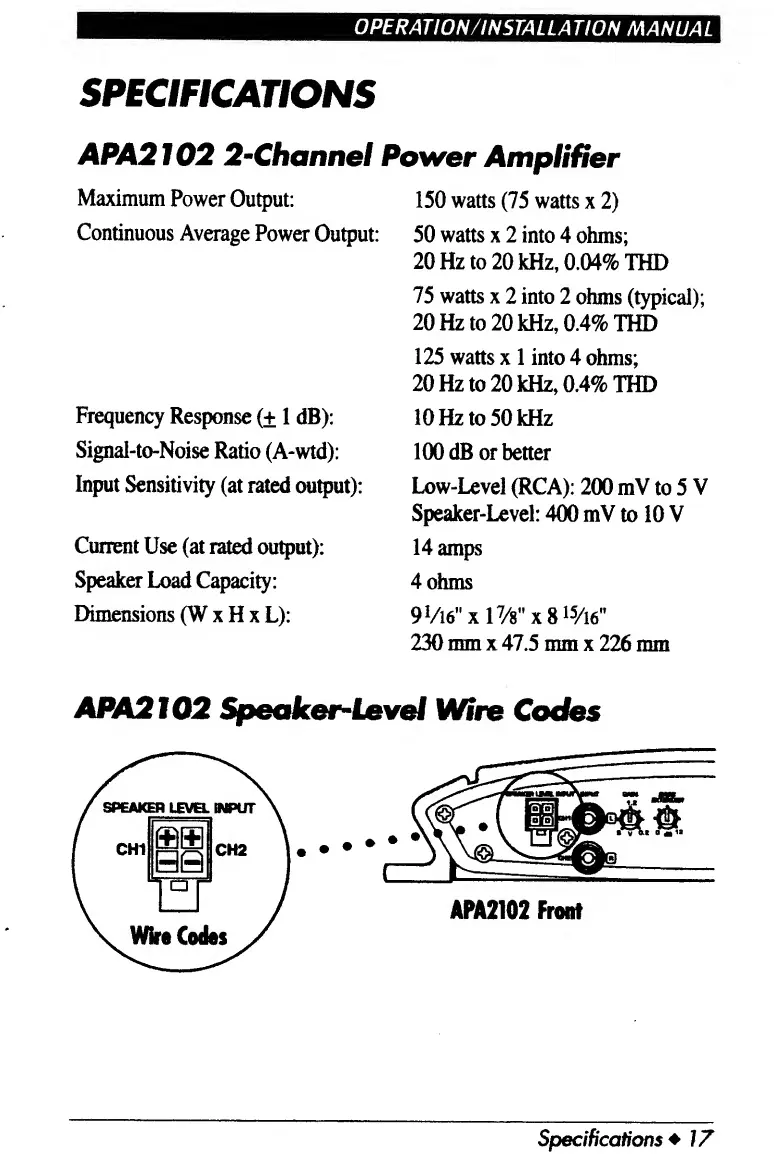

SPECIFICATIONS
APA2 102 2-Channel Power Amplifier
Maximum Power Output:
Continuous Average Power Output:
Frequency Response (± 1 dB):
Signal-to-Noise Ratio (A-wtd):
Input Sensitivity (at rated output):
Current Use (at rated output):
Speaker Load Capacity:
Dimensions (W x H x L):
150 watts (75 watts x 2)
50 watts x 2 into 4 ohms;
20 Hz to 20 kHz, 0.04% THD
75 watts x 2 into 2 ohms (typical);
20 Hz to 20 kHz, 0.4% THD
125 watts x 1 into 4 ohms;
20 Hz to 20 kHz, 0.4% THD
10 Hz to 50 kHz
100 dB or better
Low-Level (RCA): 200 mV to 5 V
Speaker-Level: 400 mV to 10 V
14 amps
4 ohms
9Vl6" X l 7 /8" X 8 15 /16”
230 mm x 47.5 mm x 226 mm
APA2I02 Speaker-Level Wire Codes
Specifications ♦ 17

Clarion apa2102 Specifications

Power Output

maximum power output	150 watts (75 watts x 2)
continuous average power output (4 ohms)	50 watts x 2
continuous average power output (2 ohms)	75 watts x 2
continuous average power output (bridged 4 ohms)	125 watts x 1

Audio Performance

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Current and Load

current use	14 amps
speaker load capacity	4 ohms

Weight and Dimensions

width	230 mm
height	47.5 mm
length	226 mm
