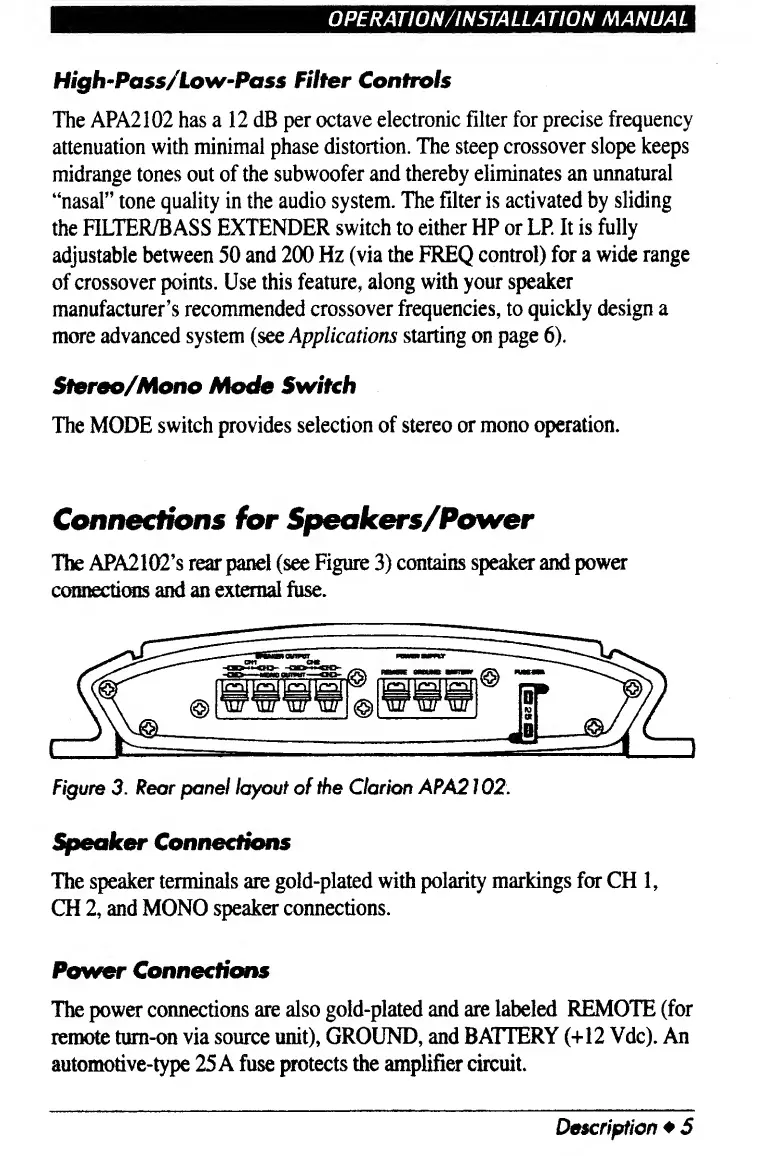

OPERATION/INSTALLATION
MANUAL
High-Pass/Low-Pass
Filter
Controls
The
APA2102
has
a
12
dB
per
octave
electronic
filter
for
precise
frequency
attenuation
with
minimal
phase
distortion.
The
steep
crossover
slope
keeps
midrange
tones
out
of
the
subwoofer
and
thereby
eliminates
an
unnatural
“nasal”
tone
quality
in
the
audio
system.
The
filter
is
activated
by
sliding
the
FILTER/BASS
EXTENDER
switch
to
either
HP
or
LP.
It
is
fully
adjustable
between
50
and
200
Hz
(via
the
FREQ
control)
for
a
wide
range
of
crossover
points.
Use
this
feature,
along
with
your
speaker
manufacturer’s
recommended
crossover
frequencies,
to
quickly
design
a
more
advanced
system
(see
Applications
starting
on
page
6).
Stereo/Mono
Mode
Switch
The
MODE
switch
provides
selection
of
stereo
or
mono
operation.
Connections
for
Speakers/Power
The
APA21Q2’s
rear
panel
(see
Figure
3)
contains
speaker
and
power
connections
and
an
external
fuse.
Speaker
Connections
The
speaker
terminals
are
gold-plated
with
polarity
markings
for
CH
1,
CH
2,
and
MONO
speaker
connections.
Power
Connections
The
power
connections
are
also
gold-plated
and
are
labeled
REMOTE
(for
remote
turn-on
via
source
unit),
GROUND,
and
BATTERY
(+12
Vdc).
An
automotive-type
25
A
fuse
protects
the
amplifier
circuit.
Description
5
