Clarion apa2102 User Manual

elation APAZ102
Mixed-Mode Satellite And
Subwoofer System
(Set MODE switch to STEREO)

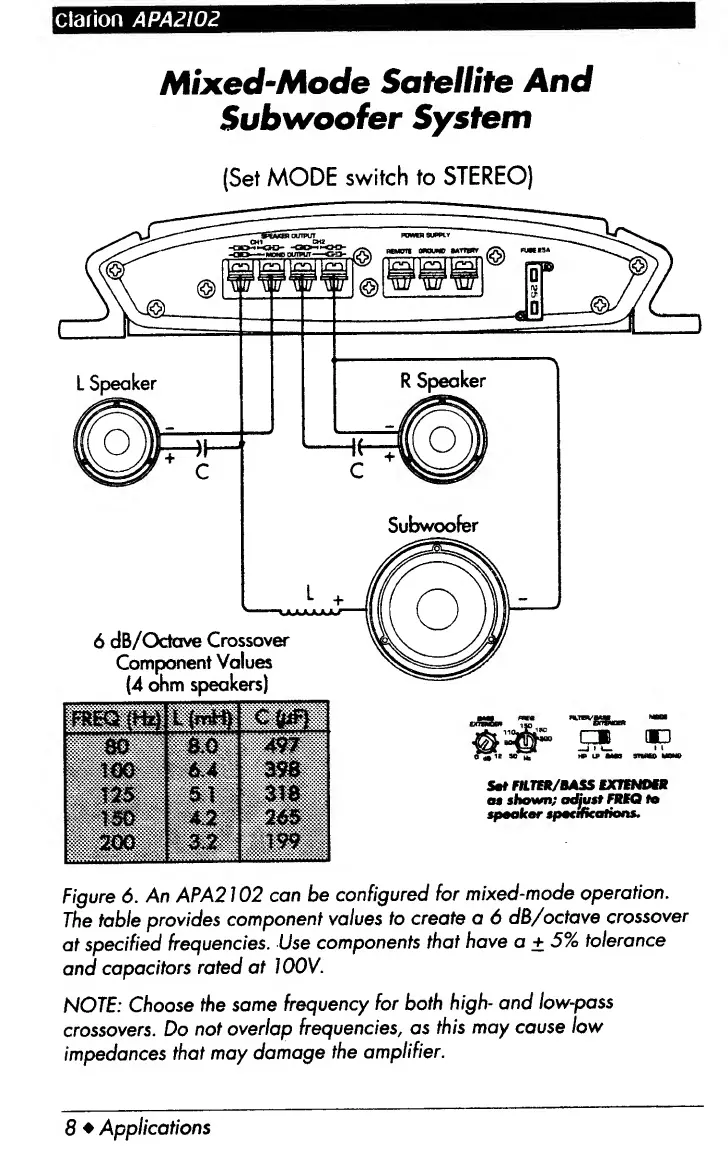

Figure 6. An APA2102 can be configured for mixed-mode operation .
The table provides component values to create a 6 dB/octave crossover
at specified frequencies. Use components that have a + 5% tolerance
and capacitors rated at 100V.
NOTE: Choose the same frequency for both high- and low-pass
crossovers. Do not overlap frequencies, as this may cause low
impedances that may damage the amplifier.
8 ♦ Applications

Clarion apa2102 Specifications

Power Output

maximum power output	150 watts (75 watts x 2)
continuous average power output (4 ohms)	50 watts x 2
continuous average power output (2 ohms)	75 watts x 2
continuous average power output (bridged 4 ohms)	125 watts x 1

Audio Performance

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Current and Load

current use	14 amps
speaker load capacity	4 ohms

Weight and Dimensions

width	230 mm
height	47.5 mm
length	226 mm
