Clarion apa2102 User Manual

OPERATION/INSTALLATION MANUAL
2-Channel Full-Range, Satellite, or
Subwoofer Stereo System
4-ohm Load - 50 Watts (rms) per channel
(Set MODE switch to STEREO)

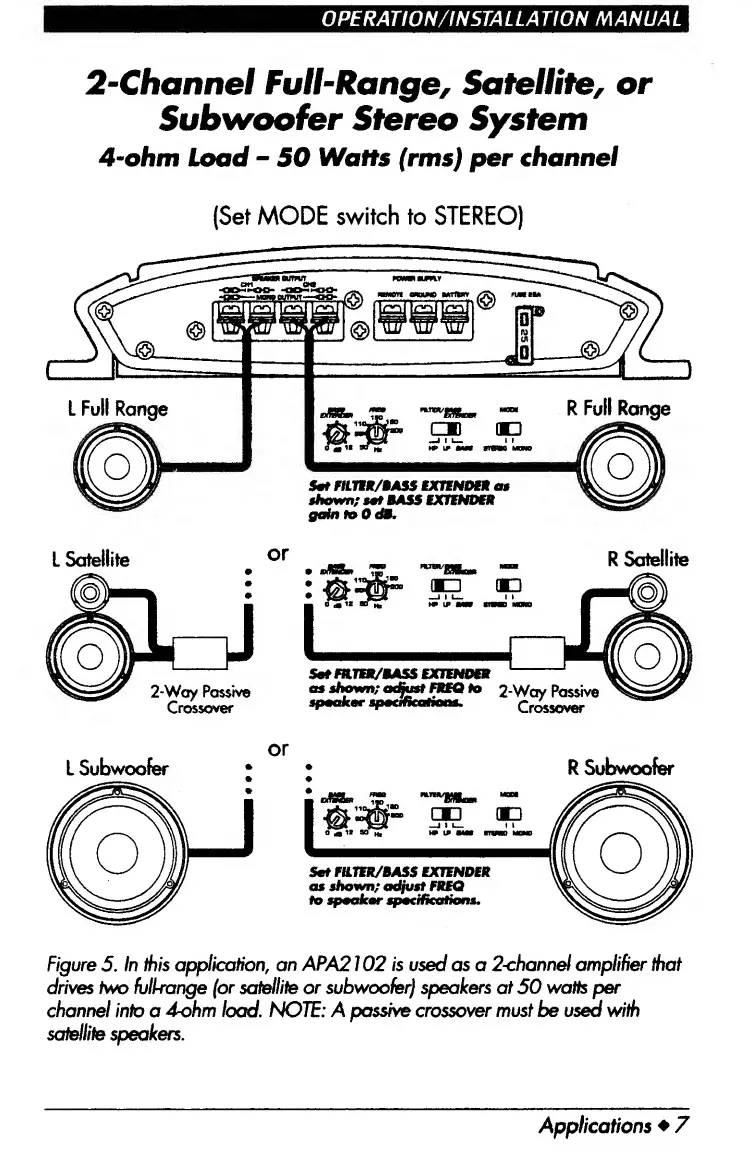

Figure 5. In this application, an APA2102 is used as a 2<hannel amplifier that
drives two full-range (or satellite or subwoofer) speakers at 50 watts per
channel into a 4ohm load. NOTE: A passive crossover must be used with
satellite speakers.
Applications ♦ 7

Clarion apa2102 Specifications

Power Output

maximum power output	150 watts (75 watts x 2)
continuous average power output (4 ohms)	50 watts x 2
continuous average power output (2 ohms)	75 watts x 2
continuous average power output (bridged 4 ohms)	125 watts x 1

Audio Performance

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Current and Load

current use	14 amps
speaker load capacity	4 ohms

Weight and Dimensions

width	230 mm
height	47.5 mm
length	226 mm
