Clarion apa2102 User Manual

clarion APA2102

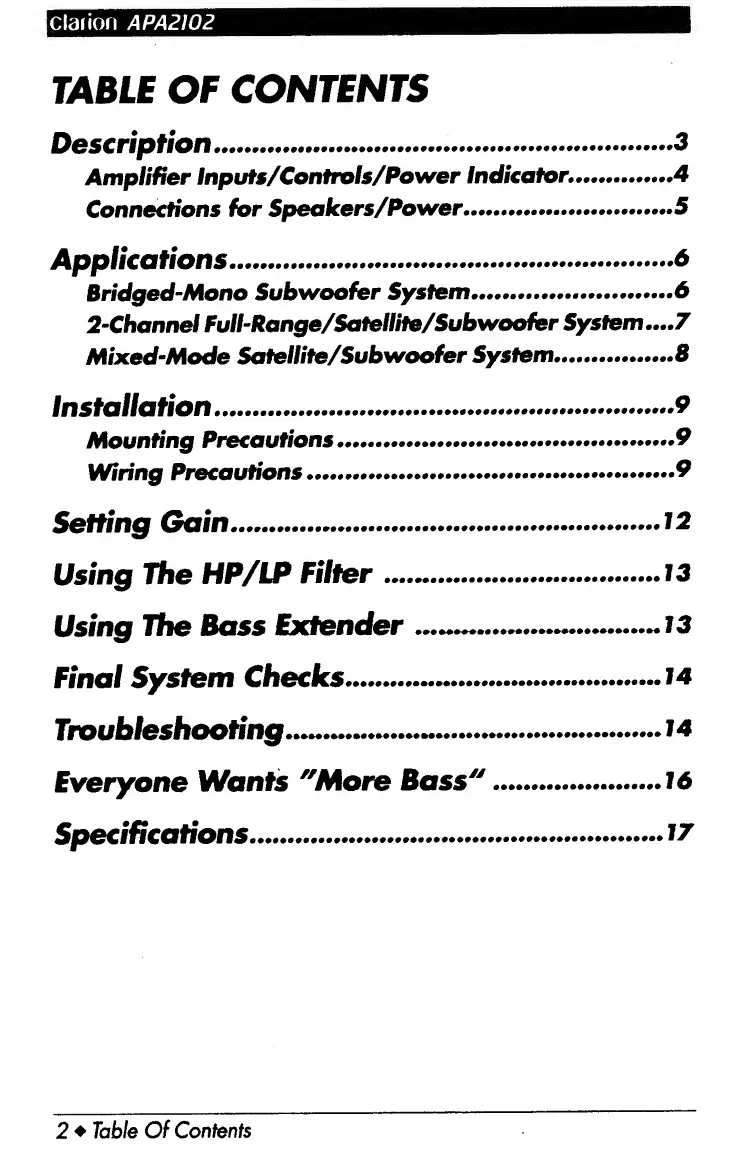

TABLE OF CONTENTS
Description . 3
Amplifier Inputs/Controls/Power Indicator... .4
Connections for Speakers/Power .....5
Applications . 6
Bridged-Mono Subwoofer System . 6
2-Channel Full-Range/Satellite/Subwoofer System.,..7
Mixed-Mode Satellite/Subwoofer System .. 8
Installation . 9
Mounting Precautions ............................................9
Wiring Precautions.... . . ..........................................9
Setting Gain........................................................ 12
Using The HP/LP Filter - 1 3
Using The Bass Extender 13
Final System Checks . J 4
Troubleshooting . J 4
Everyone Wants "More Bass" ......................16
Specifications .. .................................................... 17
2 ♦ Table Of Contents

Clarion apa2102 Specifications

Power Output

maximum power output	150 watts (75 watts x 2)
continuous average power output (4 ohms)	50 watts x 2
continuous average power output (2 ohms)	75 watts x 2
continuous average power output (bridged 4 ohms)	125 watts x 1

Audio Performance

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Current and Load

current use	14 amps
speaker load capacity	4 ohms

Weight and Dimensions

width	230 mm
height	47.5 mm
length	226 mm
