The Clarion APA2102 2-channel car audio amplifier can be used in a
variety of system applications. Here are three examples to help plan your
own installation (see Figures 4 through 6).
Bridged-Mono Subwoofer System
4-ohm Load - 125 Watts (rms)
(Use CH 2 input and set MODE switch to MONO)
Subwoofer (4 ohms)

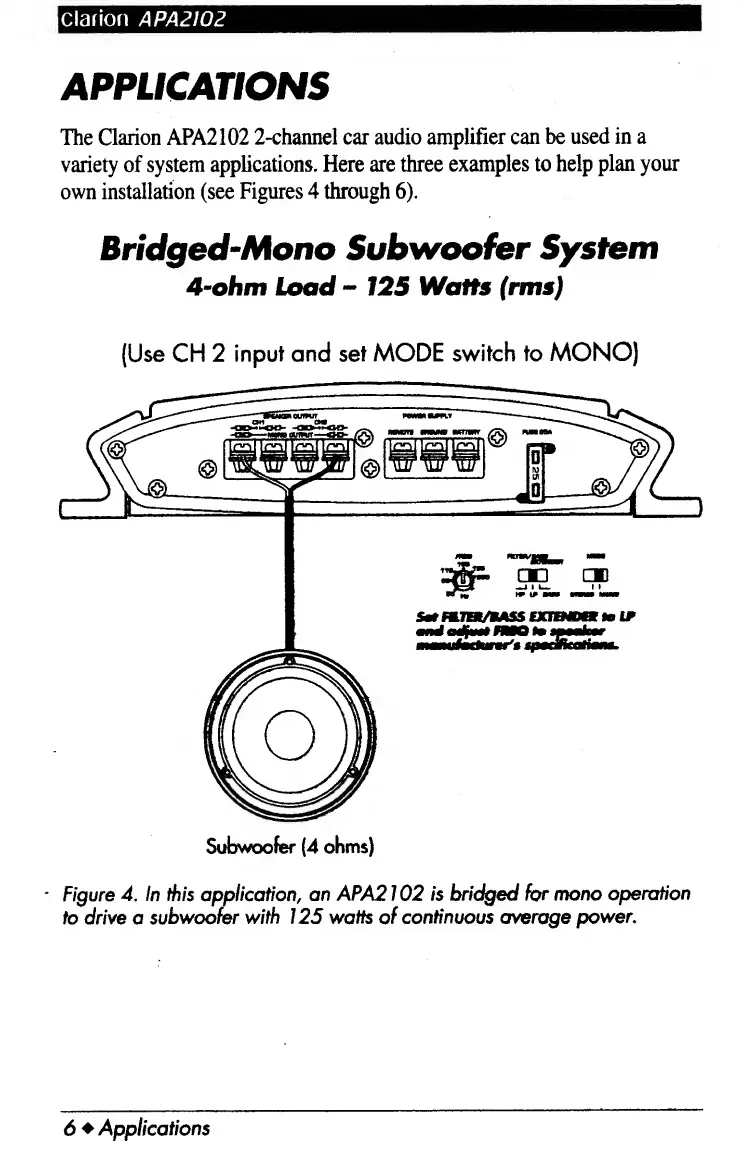

Figure 4. In this application, an APA2102 is bridged for mono operation
to drive a subwoofer with 125 watts of continuous average power.
6 ♦ Applications

Clarion apa2102 Specifications

Power Output

maximum power output	150 watts (75 watts x 2)
continuous average power output (4 ohms)	50 watts x 2
continuous average power output (2 ohms)	75 watts x 2
continuous average power output (bridged 4 ohms)	125 watts x 1

Audio Performance

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Current and Load

current use	14 amps
speaker load capacity	4 ohms

Weight and Dimensions

width	230 mm
height	47.5 mm
length	226 mm
