English
18
C
Z
302

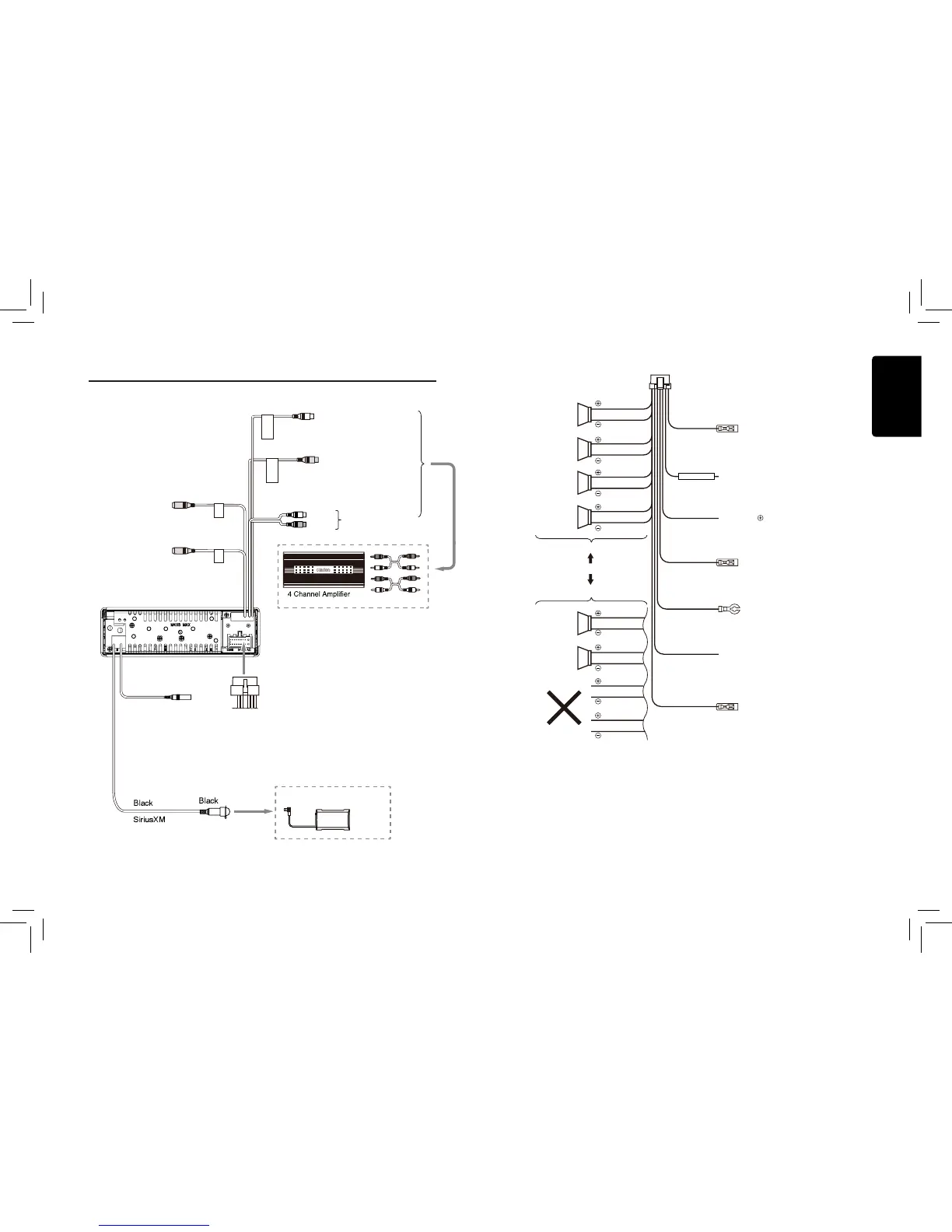

7) Wiring and Connections
• Connecting to the external amplier
External ampliers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
8) Connecting the accessories
16-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Blue/White wire (Amplier turn-on lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Blue wire (Auto antenna lead)
Connect to remote turn-on lead of amplier
Connect to vehicle chassis ground
Connect it to the car power supply terminal
for illumination
Connect it to the car power supply terminal
for antenna
Connect to cellular phone mute lead.
Connect directly to battery
Accessory
12V
Front Right
Front Right
Gray
Gray
White
White
Purple
Purple
Green
Green
Gray/Black
Gray/Black
White/Black
White/Black
Purple/Black
Purple/Black
Green/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Not used.
Insulate each wire
Front Left
Front Left
FUSE 15A
MIC
Black
Black
External
microphone
(RCB-199:Sold by separately)
Rear Right /
SUB OUT
2
Rear Left /
SUB OUT 1
SWC
Rear audio output (Left)/
White
Red
Antenna
Black
Black
Black
Black
(Black)
Rear audio output (Right)/
Steering wheel
control terminal
Subwoofer output 1
Subwoofer output 2
White
Gray
Red
Left
Right
Front audio
output terminal
SiriusXM Connect Vehicle Tuner to
be connected:Sold separately
Refer to the right
