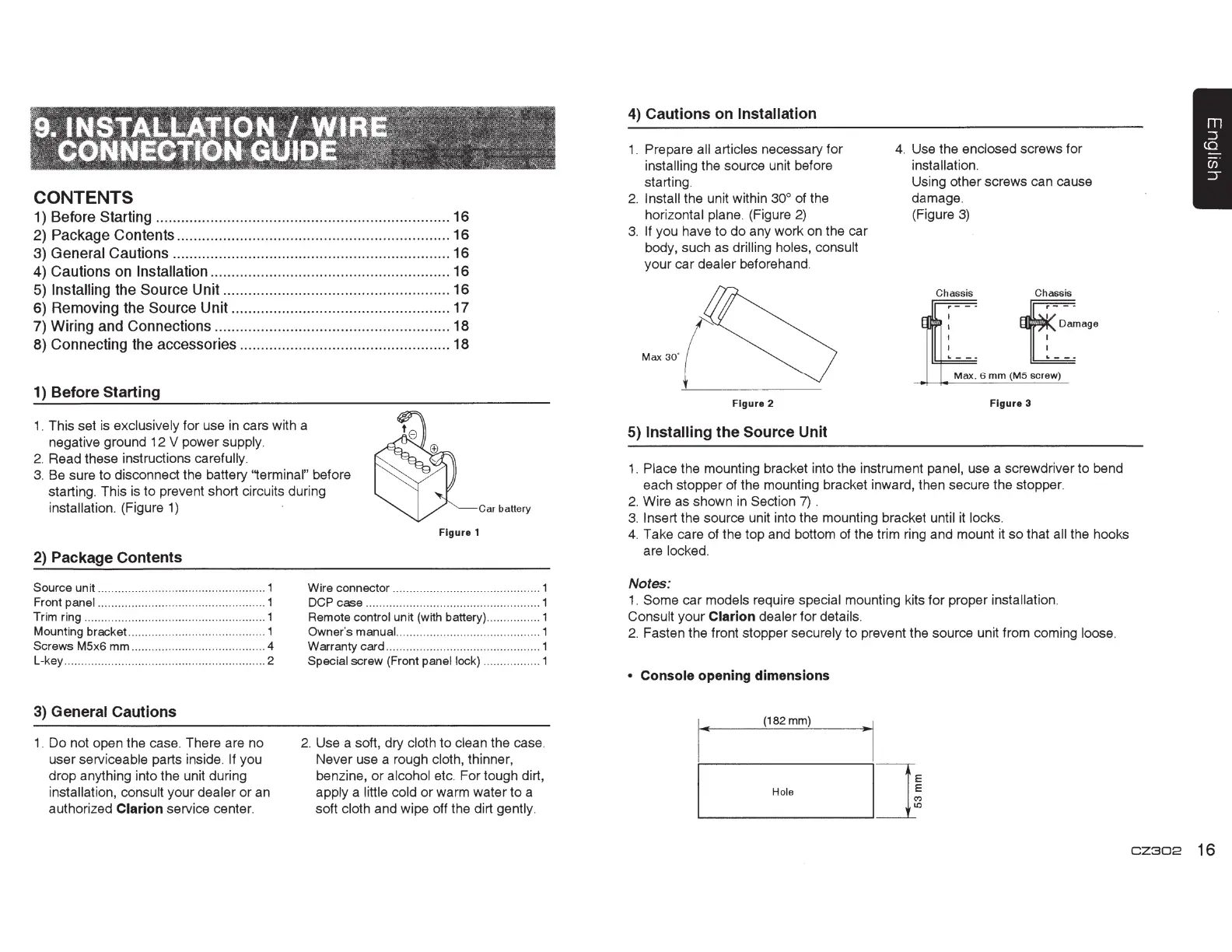

Clarion CZ302

CONTENTS
1) Before Starting ...................................................................... 16
2) Package Contents ........................
.. .. ........... .. .. ............ .. ........ 16
3) General Cautions .................................
.. . .. .......... .. .............. .. 16
4) Cautions on Installation ..................................
... ................ .. .. 16
5) Installing the Source Unit .........................................
.. .. ..... .... 16
6) Removing the Source Unit .......
.. ........................................... 17
7) Wiring and Connections
.. ...................................................... 18
8) Connecting the accessories .
... ................ .. .. .. ........................ 18
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure
to disconnect the battery ·~erminal" before
starting. This is
to prevent short circuits during
installation. (Figure
1) Car ba tt ery
2) Package Contents
Source unit ................. .. .. .. .. .. .. ..................... 1
Front panel
.. .. .. ........... .. ............................... 1
Trim ring................ .. ... .. ........... .. . .. ....... 1
Mounting bracket...... .. .... .. ....... .. ... 1
Screws M5x6 mm ....... .. .. .. ... .. ...... 4
L-key. ........... .. .... .. .. ...... .... .... .. . .. . 2
3) General Cautions
1. Do not open the case. There are no
user
se Ni ceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized
Clarion seNi ce center.
Figure 1
Wire connector .. ...... .. .................. .. .............. 1
DCP case .......................................... .. .. .... 1
Remote control unit (with battery) ..............
.. 1
Owne r's manual ...... .. ........................... .. .... 1
Warrantycard ...................... .. ...................... 1
Special screw (Front panel lock) ................. 1
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold
or warm water to a
soft cloth and wipe off the dirt gently.
4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting
2. Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
Max 30'
Figure 2
5) Installing the Source Unit
4. Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
C ha ssis Chas sis
t ~~ ...
Max. 6 mm ( M5 screw)
Figure 3
1. Place the mounting bracket into the instrument panel, use a screwdr iv er to bend
eac h stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section
7) .
3. Insert the source unit into the mounti ng bracket until it locks.
4. Take care of the top and bottom of the trim ring
and mount it so that all the hooks
are locked.
Notes:
1. Some car models requi re special mounting kits fo r proper installation.
Consult
your Clarion dealer for details.
2. Fasten the front stopper se curely to prevent the source unit from coming loose.
• Console opening dimensions
I '" {182mm) ,.
1
I'---- -Ho le -----ll ] !
CZ302 16
