Clarion CZ302 User Manual

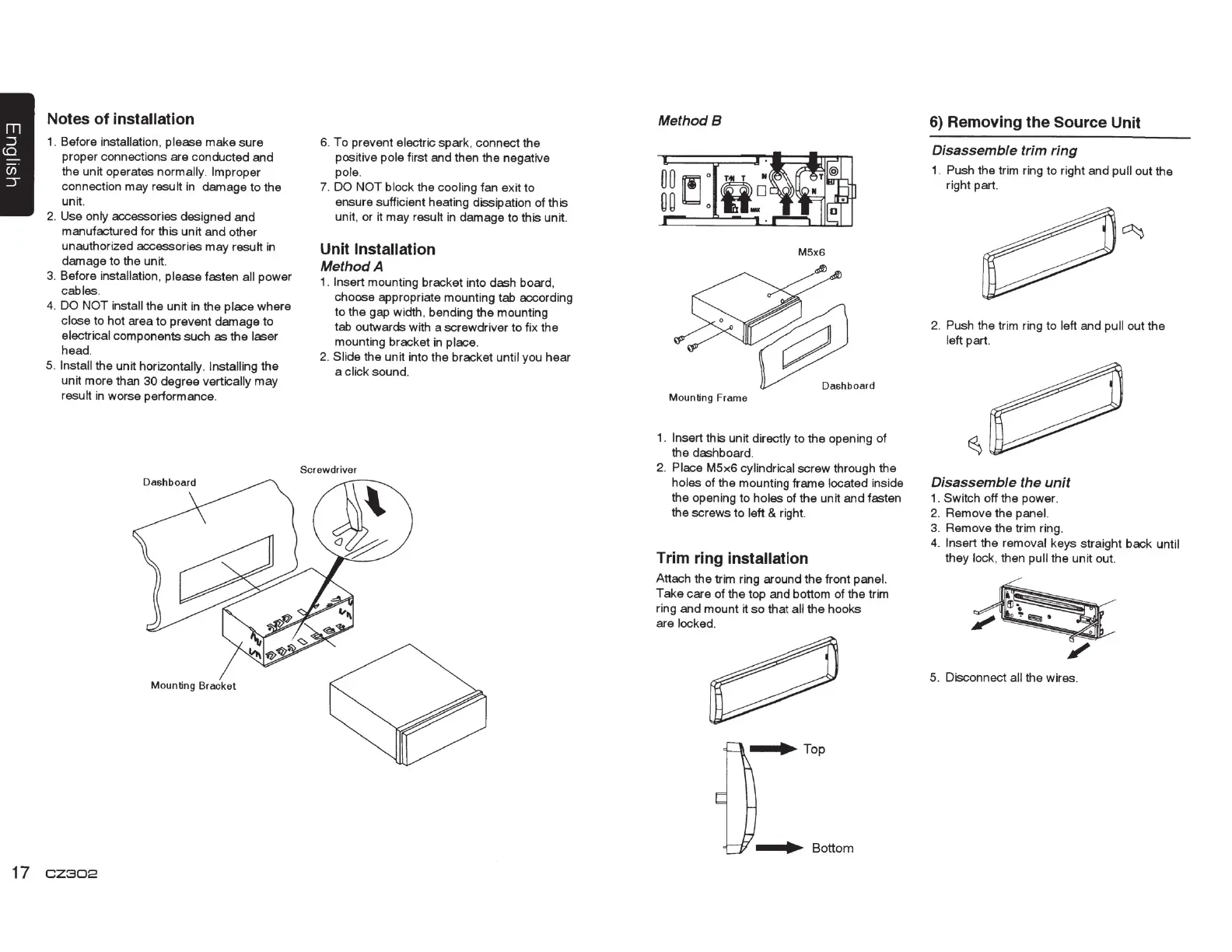

Notes
of
installation
1.
Before installation.
please
make
sure
proper connections
are
conducted
and
the
unit operates
normally. Improper
connection may
result
in damage to
the
unit
.
2.
Use
only
accessories designed
and
manufactured
for
this
unit
and
other
unauthorized accessories
may
result
in
damage
to
the unit.
3.
Before installation.
please
fasten
all
power
cables.
4.
DO
NOT
install
the
unit
in the place
where
close
to
hot
area
to
prevent damage
to
electrical
components
such
as
the
laser
head.
5.
Install
the
unit
horizontally. Installing
the
unit more than
30
degree vertically
may
result
in worse performance.
Mounting Bracket
17
CZ302
6.
To
prevent electric
spark
. connect the
positive
pole
first and then
the
negative
pole.
7.
DO
NOT
block
the
cooling
fan exit
to
ensure sufficient heating dissipation
of
this
unit. or it
may
result
in damage to this
unit
.
Unit
Installation
Method
A
1.
Insert
mounting bracket into dash board.
choose appropriate mounting tab according
to
the
gap width. bending
the
mounting
tab outwards with a screwdriver to fix
the
mounting brack
et
in
place.
2.
Slide
the
unit
into the bracket
until
you hear
a click
sound
.
Sc
rewdriver
MethodB
M5x6
Mounting Frame
1.
Insert
this unit
directly
to
the opening
of
the dashboard.
2.
Place
M5x6
cylindrical
screw
through
the
holes
of
the mounting frame
located
insi
de
the opening
to
holes
of
the
unit
and
fasten
the
screws
to
left
& right.
Trim ring installation
Attach
the
trim ring around
the
front
panel.
Take
care
of
the
top
and
bottom
of
the
trim
ring and
mount
it
so
that
all
the
hooks
are
locked.
_
....
~Top
--·~Bottom
6) Removing
the
Source Unit
Disassemble
trim
ring
1.
Push
the
trim ring to right and
pull
out
the
right part.
2.
Push the
tr
im ring
to
left
and
pull
out
the
left
part.
Disassemble
the
unit
1.
Switch off
the
power.
2.
Remove
the
panel.
3.
Remove
the
trim ring.
4.
Insert
the
removal keys straight back
until
they
lock.
then
pull
the
unit
out.
5.
Disconnect
all
the wires.

Clarion CZ302 Specifications

General

MP3 playback	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Impedance	4 Ω
Output power	76 W
Product color	Black
Volume control	Rotary
Frequency range	20 - 20000 Hz
CD changer capacity	1 discs
Disc types supported	CD
Signal-to-Noise Ratio (SNR)	94 dB

Weight and Dimensions

Weight	1347 g
