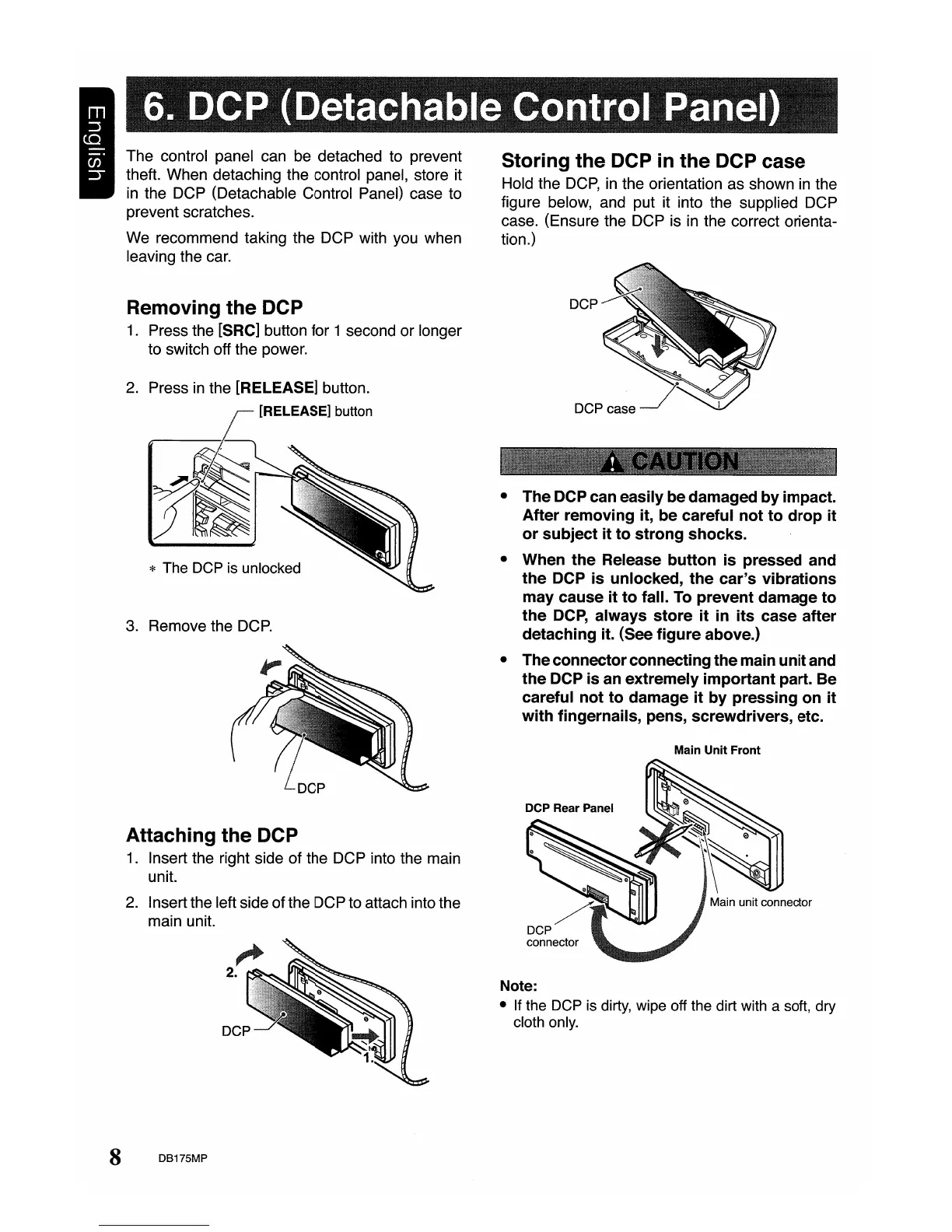

The control panel can be detached to prevent
theft. When detaching the control panel, store it
in
the DCP (Detachable Control Panel) case
to
prevent scratches.
We
recommend taking the DCP with
you
when
leaving the
car.
Removing
the
DCP
1.
Press the [SRC] button for 1 second or longer
to switch off the power.
2.
Press
in
the [RELEASE] button.
Storing
the
DCP
in
the
DCP case
Hold the
DCP,
in
the orientation as shown
in
the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is
in
the correct orienta-
tion.)
Main
Unit
Front
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
• The
DCP
can easily be damaged
by
impact.
After removing it, be careful
not
to
drop
it
or
subject
it
to
strong shocks.
• When the Release button
is
pressed and
the
DCP
is
unlocked,
the
car's vibrations
may cause
it
to
fall.
To
prevent damage
to
the
DCP,
always
store
it
in
its
case after
detaching it. (See figure above.)
• Theconnectorconnecting the main unitand
the
DCP
is an extremely important part. Be
careful
not
to
damage
it
by
pressing on
it
with
fingernails, pens, screwdrivers, etc.
* The DCP is unlocked
3.
Remove the
DCP.
Attaching
the
DCP
1.
Insert the right side of the DCP into the main
unit.
2.
Insert the left side of the DCP
to
attach into the
main unit.
8 DB175MP
