Professional mode/P.EQ operations
P.EQ effect ON/OFF
While the “P.EQ” indication is lit in the display,
the P.EQ effect is set to “ON”.
∗ The factory default setting is “ON”.
1. Press the [A] button and select “P.EQ”.
2. Press the [D] button. “P.EQ” in the display is
changed from blinking to lit or unlit.
∗ When “P.EQ” is unlit, the P.EQ effect is set to OFF.
Note:
• If the P.EQ effect is set to OFF, the adjustment
made in “P.EQ operations” is not reflected in the
music source.
Selecting a P.EQ menu
1. Press the [A] button and select “P.EQ”.
“P.EQ” blinks in the display.
2. Press the [BND] button to select “BASC” (ba-
sic). “BASC” is displayed in the function
mode indication in the display.
3. Press one of the [DIRECT] buttons and se-
lect the desired P.EQ menu.
∗ To select the user memory, press the [BND] but-
ton to select “USR” and press one of the [DI-
RECT] buttons.
Editing/storing a P.EQ menu (User
memory)
1. Select a P.EQ menu which you want to edit
on the basis of.
2. Press and hold the [T] button for 1 second or
longer.
3. Press the [a] or [d] button to select the
item to be adjusted.
There are correction channel, correction
band, selection of the centre frequency, gain
adjustment and selection of the Q-curve
available for the items to be adjusted.
∗ For details on each adjustment item, refer to
the owner’s manual supplied with the DPH913.
4. Turn the [ROTARY] knob clockwise or
counterclockwise to make the adjustment.
5. Repeat steps 3 to 4 to complete the adjust-
ment and press the [T] button.
6. Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the edited
contents.
∗ You can give a title to the user memory. For
the inputting method of titles, refer to the sub-
section “Entering titles” in section “Opera-
tions common to each mode”.
Digital Radio / DAB Operations DSP Operations
DAB control function
When a CeNET cable is used to connect a DAB
(DAH913 or DAH9500z) (sold separetely), all
functions can be operated.
Listening to the DAB station
1. Press the [FNC] button to select the DAB
mode.

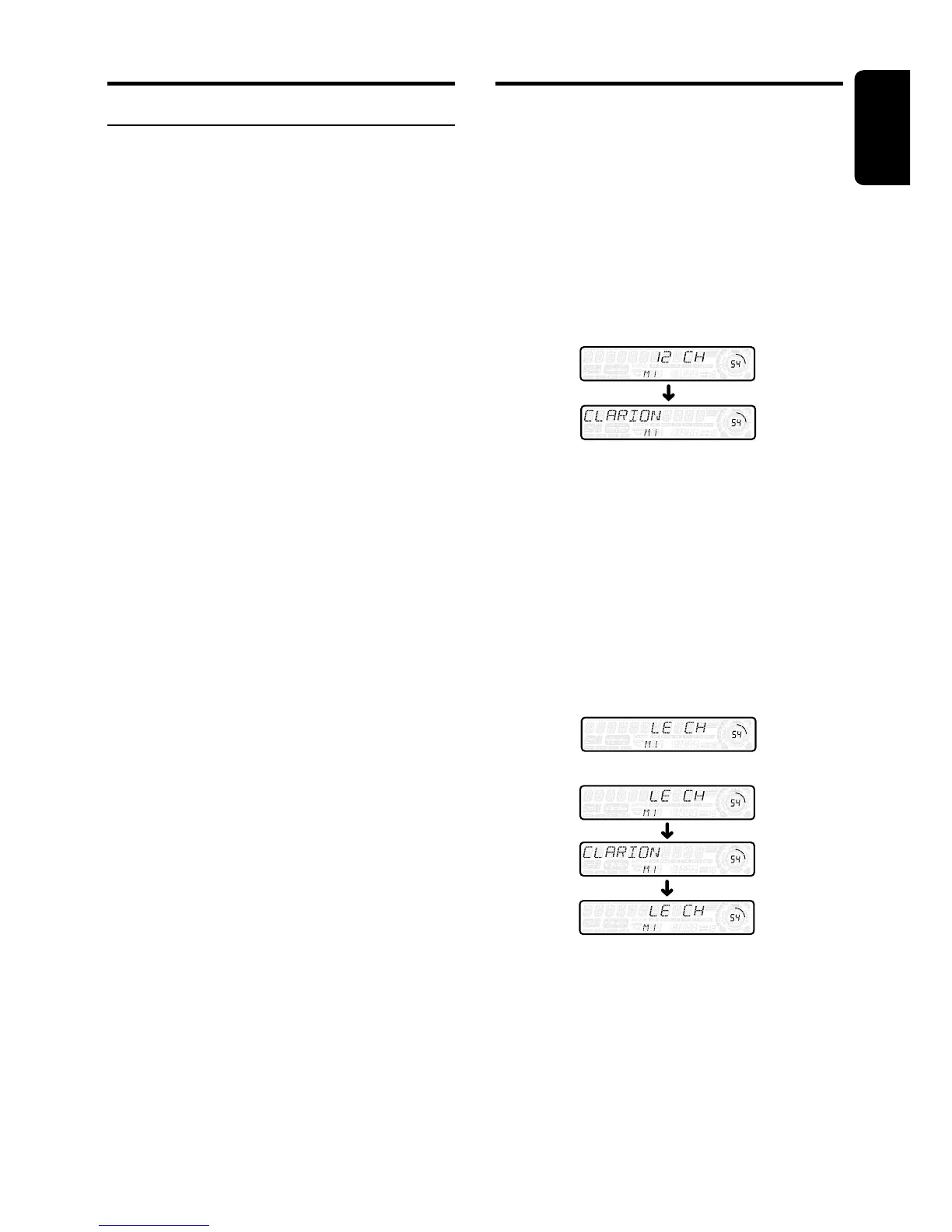

2. When the unit receives a DAB station, the
display changes in the following order:
Frequency channel ➜ service label
Switching displays
Press the [D] button for 1 second during the
Main (service label) display to select Main (ser-
vice label) or Sub (PTY).
Note:
• The display shown in the normal reception mode
and the preset reception mode is the same when
a DAB station is received.
3. When the unit does not receive a DAB sta-
tion, the display changes in the following or-
der:
–Normal reception mode–
–Preset reception mode–
Notes:
• The number of programmes and broadcasting
times depend on the DAB stations.
• When the strength of DAB signals is weak, audio
output is muted.

Clarion DXZ728R Specifications

Radio Section

FM receiving frequency range	87.5 to 108 MHz
MW receiving frequency range	531 to 1602 kHz
LW receiving frequency range	153 to 279 kHz

CD Player Section

Frequency response	5 Hz to 20 kHz
Signal to noise ratio	100 dB
Dynamic range	95 dB

General

Output power	4 x 31 W
Power supply voltage	14.4 V DC
Power consumption	Less than 15 A

Weight and Dimensions

Main unit weight	1.6 kg
Main unit dimensions	178 W x 50 H x 155 D mm
Remote control unit weight	30 g
