6.OPERATIONS
Basic Operations
Note:Be sure to read this chapter referring to the front diagrams of
chapter “2. CONTROLS” on page 5 (unfold).
CAUTION
Be sure to lower the volume before switch-
ing off the unit power or the ignition key. The
unit remembers its last volume setting. If you
switch the power off with the volume up,
when you switch the power back on, the sud-
den loud volume may hurt your hearing and
damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [FNC] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [FNC] button for 1 second
or longer to turn off the power for the unit.
Note:
• System check
The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power is
turned on, “SYSTEM CHCK” and “PUSH
POWER” appear in the display alternately, so
press the [FNC] button. The system check starts
within the unit. When the system check is com-
plete, the power is turned off, so press the [FNC]
button again.
Selecting a mode
1. Press the [FNC] button to change the opera-
tion mode.
2. Each time you press the [FNC] button, the
operation mode changes in the following or-
der:
Radio mode ➜ DAB mode ➜ CD mode ➜
DVD DECK mode ➜ CD changer mode ➜
MD changer mode ➜ DVD changer mode ➜
TV mode ➜ AUX mode ➜ Radio mode...
∗ External equipment not connected with
CeNET is not displayed.
Adjusting the volume
1. Press the front part of the knob to adjust. The
knob will pop up.
2. Turning the [ROTARY] knob clockwise in-
creases the volume; turning it counterclock-
wise decreases the volume.
∗ The volume level is from 0 (minimum) to 33
(maximum).

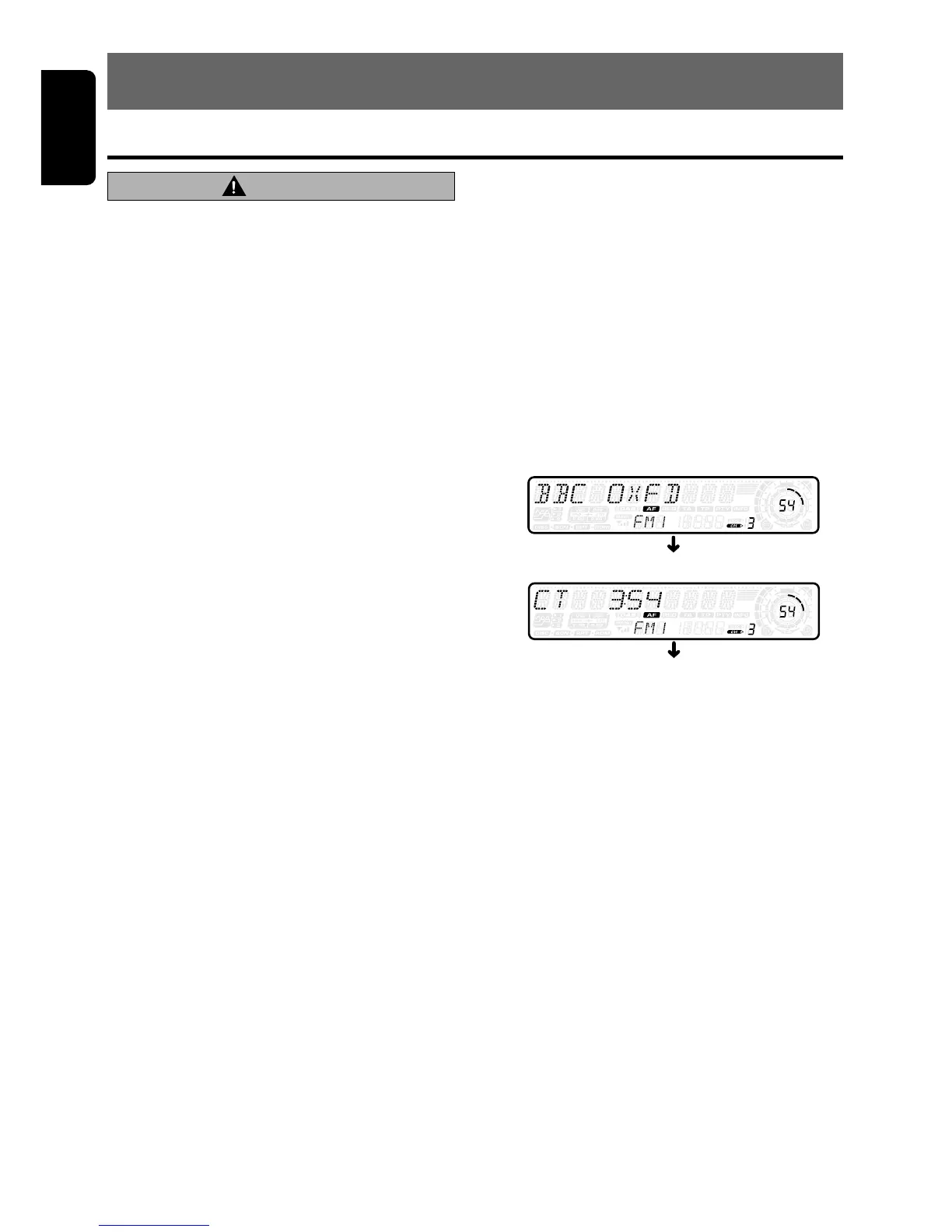

Switching the display
Press the [D] button to select the desired display.
Each time you press the [D] button, the display
switches in the following order:
Main display
Clock(CT) display
Main display
∗ Once selected, the preferred display becomes
the display default. When a function adjust-
ment such as volume is made, the screen will
momentarily switch to that function’s display,
then revert back to the preferred display sev-
eral seconds after the adjustment.
∗ When you have entered a title in a CD/MD, it
appears in the main display. If you have not
entered a title, “D NO-TITLE” or “T NO-
TITLE” appears in the title display instead. For
information on how to enter a title, refer to the
subsection “Entering titles” in section “Op-
erations Common to Each Mode ”.
∗ When CT data is not received, “CT––:––” ap-
pears in the display.

Clarion DXZ728R Specifications

Radio Section

FM receiving frequency range	87.5 to 108 MHz
MW receiving frequency range	531 to 1602 kHz
LW receiving frequency range	153 to 279 kHz

CD Player Section

Frequency response	5 Hz to 20 kHz
Signal to noise ratio	100 dB
Dynamic range	95 dB

General

Output power	4 x 31 W
Power supply voltage	14.4 V DC
Power consumption	Less than 15 A

Weight and Dimensions

Main unit weight	1.6 kg
Main unit dimensions	178 W x 50 H x 155 D mm
Remote control unit weight	30 g
