Main unit / Appareil principal / Hauptgerät / Apparecchio principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal
With the SLOPING CONSOLE opened / Ouvrez la CONSOLE RABATTABLE
ÖFFNUNG DER SCHRÄGKONSOLE / Apertura della CONSOLE INCLINATA
Met het KANTELEND BEDIENINGSPANEEL geopend / Apertura de la CONSOLA INCLINABLE
DEN LUTANDE KONSOLEN öppen / Com a CONSOLA INCLINÁVEL aberta

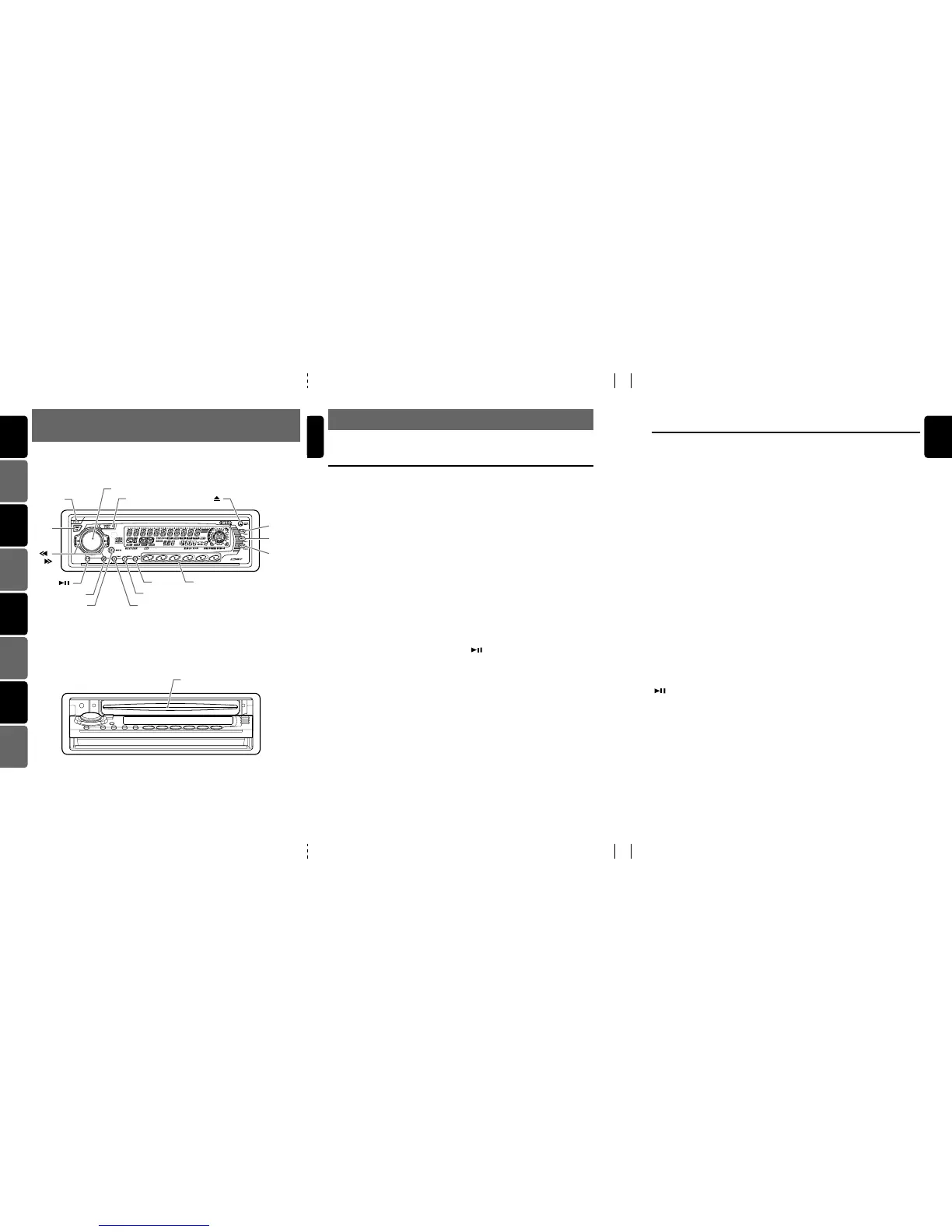

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking: Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo.
[
RELEASE
]
[
CD IN
]
2.
CONTROLS / LES COMMANDES / REGLER / CONTROLLI
REGELAARS / CONTROLES / KONTROLLER / CONTROLOS
3.NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
[RELEASE] button
• Deeply press the button to remove the DCP.
[ROTARY] knob
• Press the front part of the knob to adjust. The
knob will pop up.
• Adjust the volume by turning the knob clock-
wise or counterclockwise.
• Use the knob to perform various settings.
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
• Switches the operation mode among the ra-
dio mode, etc.
[Q] button
• Use the button to open the slope console.
• Ejects a CD when it is loaded into the unit.
[PS/AS] button
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
• Performs scan play for 10 seconds for each
track while in the CD mode.
[AF] button
• Press the button to turn on or off the AF (Al-
ternative Frequency) function.
• Plays repeatedly while in the CD mode.
• When the button is pressed and held,
Reginal function can select ON or OFF.
[PTY] button
• Use the button to set the PTY (Programme
Type) standby mode or PTY items.
• Performs random play while in the CD mode.
[DIRECT] button
• Stores a station into memory or recall it di-
rectly while in the radio mode.
Names of the Buttons and their Functions
[D] button
• Switches the display indication(Main
display,clock display).
[T] button
• Use the button to input a title in the CD mode.
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[A] button
• Press and hold the button for 1 second or
longer to turn the loudness on or off.
• Use the button to switch to the audio mode
(bass/mid/treble, balance/fader adjustment)
[BEQ] button
• Use the button to select one of the three
types of sound characteristics already stored
in memory.
[TA] button
• Use the button to set the TA (Traffic An-
nouncement) standby mode.
[ ] button
• Plays or pauses a CD while in the CD mode.
[a], [d] button
• Selects a station while in the radio mode or
selects a track when listening to a CD. These
buttons are used to make various settings.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
• Plays a first track while in the CD mode.
[CD IN]
• CD insertion slot.
●When the CD/MD/DVD changer
is connected
∗ For details, see the section “CD/MD
changer operations”. For the DVD
changer, refer to the Owner’s Manual pro-
vided with the DVD changer.
[PS/AS] button
• Performs scan play for 10 seconds for each
track. Disc scan play is performed when the
button is pressed and held.
[AF] button
•
Performs repeat play. When this button is
pressed and held, disc repeat play is performed.
[PTY] button
• Performs random play. Also performs disc ran-
dom play when the button is pressed and held
[DIRECT] button
• Designates the disc to be played.
[D] button
• Switches CT or select disc titles mode.
• When the button is pressed and held,
switches the disc titles or track titles while in
the MD changer mode.
• When the button is pressed and held,
switches the user titles or track titles ,etc.while
in the CD changer mode.
[T] button
• Use the button to input a title in the CD
changer mode.
•
Use the button to scroll the title during CD-text play
or MD changer play in the CD changer mode.
[ ] button
• Plays or pauses a CD, MD or DVD.
[a], [d] button
• Selects a track when listening to a disc.
[BND] button
• Plays a first track.
●When the TV/DAB is connected
∗ For details, see the section “TV opera-
tions” or “DAB operations”.
[PS/AS] button
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed. (This function is only TV
tuner.)
[AF] button
•
Press the button to turn on or off the AF (Alter-
native Frequency) function in the DAB mode.
(This function is only DAB tuner.)
[PTY] button
•
Use the button to set the PTY (Programme Type)
standby mode or PTY items in the DAB mode.
• Switches the TV picture mode or VTR (external)
picture mode.
[TA] button
• Use the button to set the TA (Traffic An-
nouncement) standby mode in the DAB mode.
(This function is only DAB tuner.)
[DIRECT] button
•
Stores a station into memory or recall it directly.
[a], [d] button
• Selects a station.
[BND] button
• Switches the band.
• When the button is pressed and held,
switches seek tuning or manual mode.
●When the DSP is connected
∗ The factory default setting is “STD” (stan-
dard).
This section describes the major buttons to
be operated in the STD mode.
∗ For details, see the section “DSP Opera-
tions”.
[A] button
• Use the button to select from between G.EQ
or DSF.
After G.EQ is selected, press the [DISP] but-
ton and then the [A] button to turn on or off
the the G.EQ (DSF) effect.
After G.EQ is selected, press the [BND] but-
ton and then the [DIRECT] button to select
the G.EQ (DSF) menu.
[T] button
•
Use the button to select the “STD” or “PRO” mode.
Press and hold the [T] button for 1 second or
longer to show the adjustment selection dis-
play and then press the [a] button or [d]
button to select “AC-P SEL” in the display.
Turn [ROTARY] knob clockwise or counter-
clockwise to set the mode to “STD” or “PRO”.
Press [T] button to return to the previous mode.
Major button operations when external equipment is
connected to this unit
To Next Page
