Clarion EN-1286S-A User Manual

EN-1286S-A
- 3 -

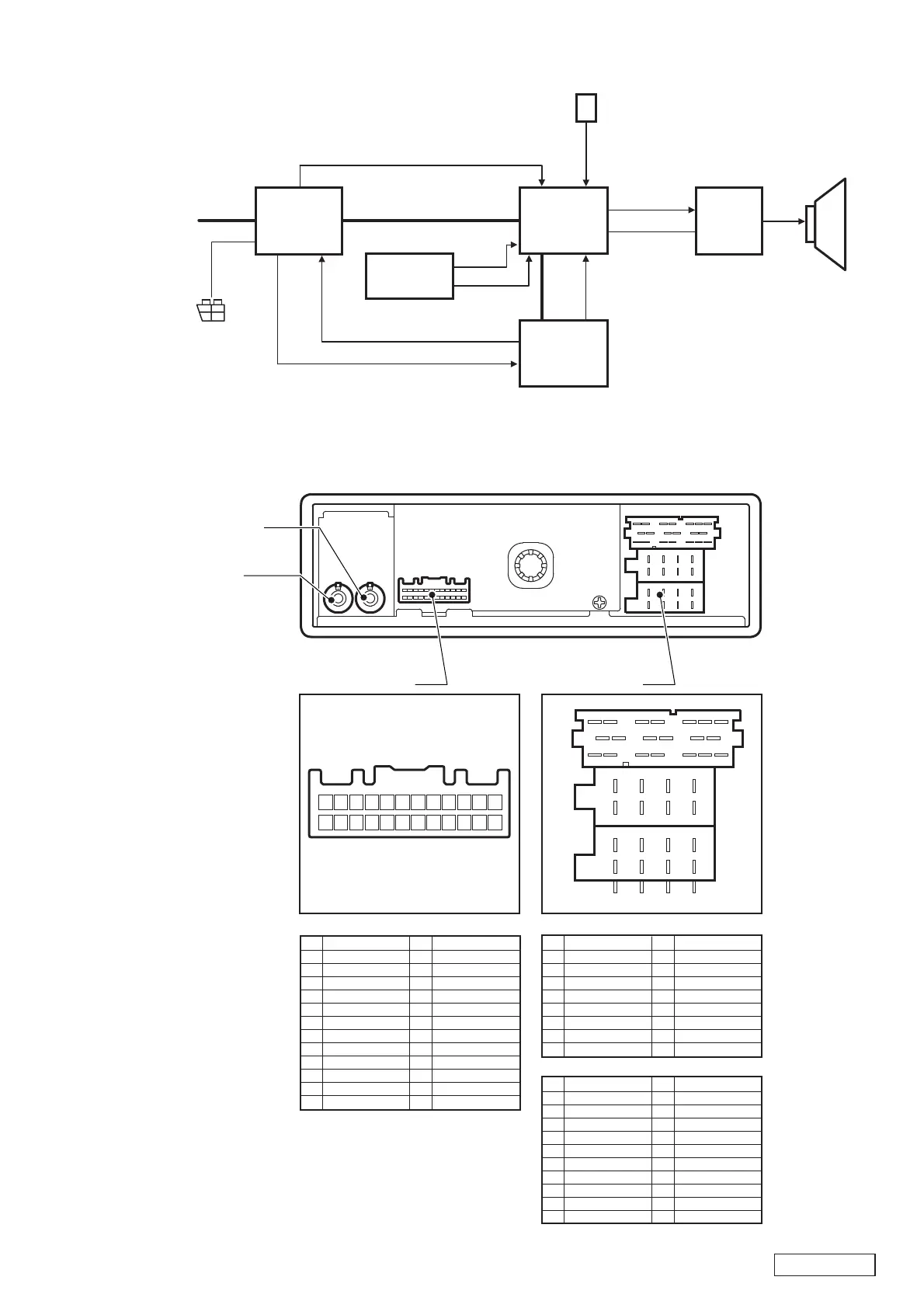

Rear view of unit
123456789101112
131415161718192021222324
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
3
GND N.C. GND+B
No.
1
2
3
4
5
6
7
8
9
10
11
12
Pin Name
M-CAN H1
M-CAN L1
ZT-L
NC
IR-OUT
NC
NC
NC
SPDIF GND
NAVI IN(-)
TEL GND
TEL IN(-)
No.
13
14
15
16
17
18
19
20
21
22
23
24
Pin Name
M-CAN H2
M-CAN L2
ZT-H
NC
IR-GND
IR-SIG
INPUT SYS-ON
NC
NC
NAVI IN(+)
NAVI GND
TEL IN(+)
J301 (TH24 HW)
ANT101
Main Antenna
Receptacle (AM/FM1)
ANT102
Sub Antenna
Receptacle (FM2)
J701 (ISO 36P)
AB
C
No.
1
2
3
4
5
6
7
8
Pin Name
REAR RCH(+)
REAR RCH(-)
FRONT RCH(+)
FRONT RCH(-)
FRONT LEFT(+)
FRONT LEFT(-)
REAR LEFT(+)
REAR LEFT(-)
No.
1
2
3
4
5
6
7
8
Pin Name
NC
GND
NC
B/U
NC
NC
NC
GND
No.
1
2
3
4
5
6
7
8
9
10
Pin Name
EXT-AMP ON
INFO LINE IN
INFO LINE REF
LINE IN RCH
SHIELD AUDIO
LINE IN LCH
N.C.
N.C.
EXT-AMP ON
N.C.
No.
11
12
13
14
15
16
17
18
19
20
Pin Name
N.C.
(S-WOOF-SHD)
UART TX
UART RX
UART GND
NC
UART REQ
SPDIF-CDC
SPDIF-GND
CDC-GND
Tuner
Audio Unit
EN-1286S
CD Auto
Changer
PN-2940S
BOSE
AMP
DISP
System_on_req
System_on
System_on
SPDIF
UART
M-CAN
V-CAN
For vehicle
AMP_on
Sound
Sound
Speakers
CORUM SW
(Renault)
Handsfree kit
Tel Voice
analog
AUX JACK
Tel -on
SYSTEM
CONNECTORS

Clarion EN-1286S-A Specifications

General

Brand	Clarion
Model	EN-1286S-A
Category	Car Receiver
Language	English
