Clarion M502 User Manual

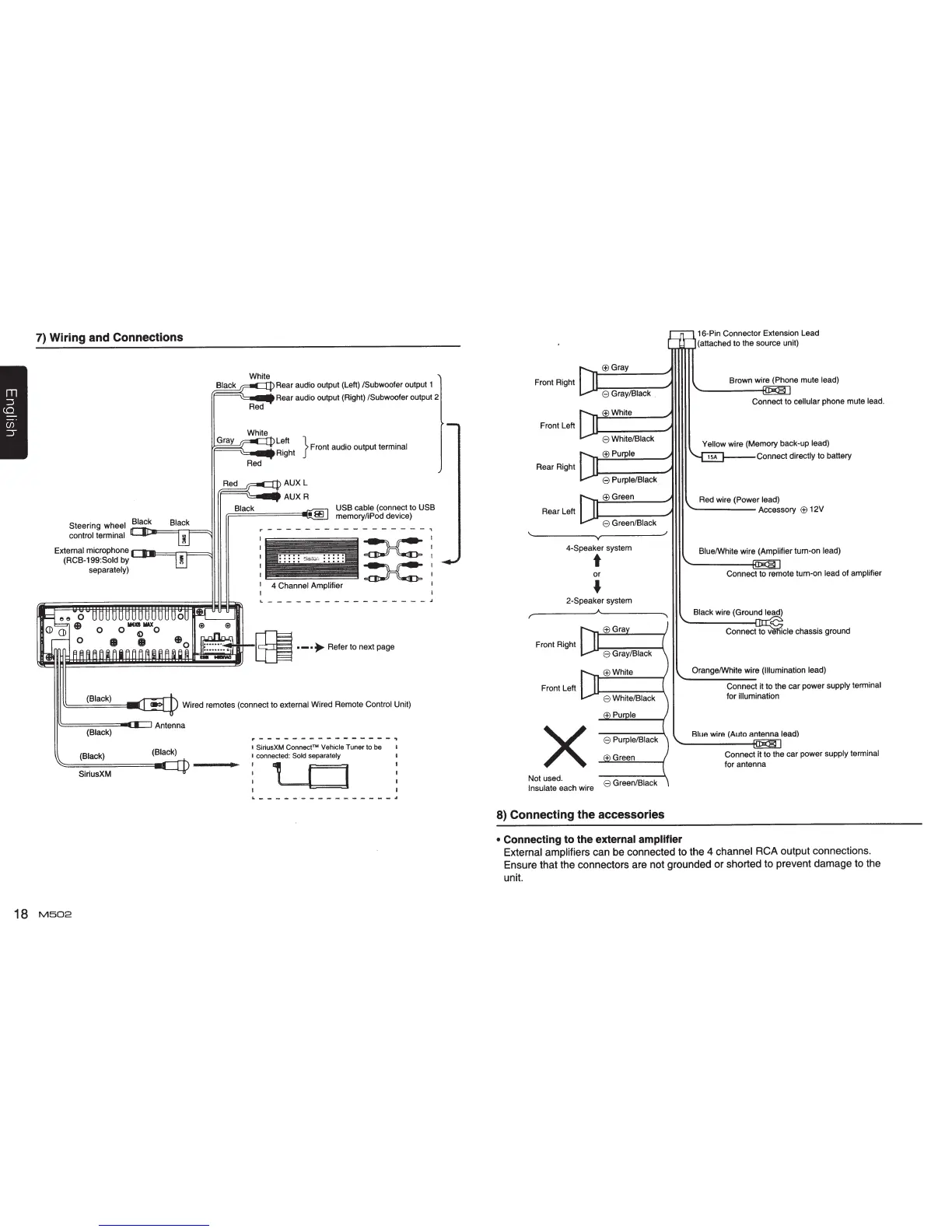

7) Wiring and Connections
I
White
Rear audio output (Left) /Subwoofer output 1
Rear audio output (Right) /Subwoofer output 2
} Front audio output terminal
AUX L
AUXR
-·--"
--~
USB
cable (connect to
USB
memory/iPod device)
---
__
ill
EEl
.
-.
~
Refer to next
page
(Black)
Wired remotes (connect to external Wired Remote Control Unit)
II~
I
I
Antenna
(Black)
(Black)
(Black)
SiriusXM
18
M502
Front Right
Front Left
Rear Right
Rear Left
EB
Gray
8
Gray/Black
EBWhite
8
White/Black
EB
Purple
8
Purple/Black
EB
Green
8
Green/Black
4-Speaker system
t
or
-
2-Speaker system
r---·~
Front Right
Front Left
X
Not used.
Insulate
each wire
8) Connecting the accessories
•
Connecting to the external
amplifier
16-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Connect to
cellular
phone mute lead.
Yellow
wire (Memory back-up lead)
Connect directly to battery
Red wire (Power lead)
-----
Accessory
EB
12V
Blue/White
wire (Amplifier tum-on lead)
Connect to remote turn-on lead of amplifier
Black
wire (Ground
le~)
Connect to
v91'licle
chassis ground
Orange/White wire
(Illumination lead)
Connect it to the car power supply terminal
for
illumination
Blue wire (Auto antenna
lead)
Connect it to the
car
power supply terminal
for antenna
External amplifiers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
