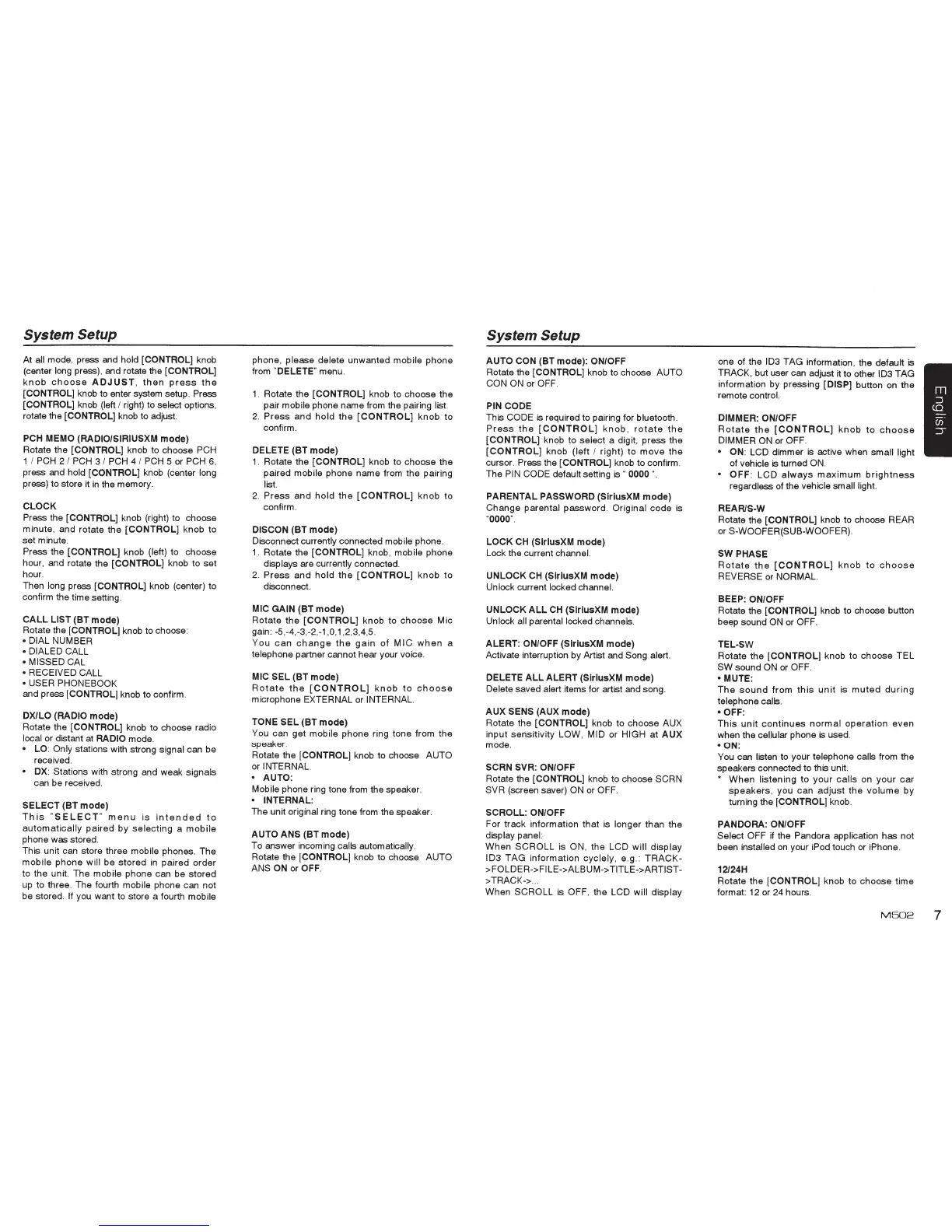

System Setup
At
all
mode, press and hold [CONTROL] knob
(center long press), and rotate the [CONTROL]
knob
choose
ADJUST,
then
press
the
[CONTROL] knob to enter system setup. Press
[CONTROL]
knob (left
I
right) to select options,
rotate the
[CONTROL]
knob to adjust.
PCH
MEMO (RADIO/SIRIUSXM
mode)
Rotate the
[CONTROL]
knob to choose PCH
1
I
PCH 2
I
PCH 3
I PCH 4
I
PCH 5 or PCH
6,
press and hold [CONTROL] knob (center long
press) to store
it
in
the memory.
CLOCK
Press the
[CONTROL]
knob (right) to choose
minute, and rotate the
[CONTROL]
knob to
set minute.
Press the [CONTROL] knob (left) to choose
hour, and rotate the [CONTROL] knob to
set
hour.
Then long press
[CONTROL]
knob (center) to
confirm the time setting.
CALL
LIST
(BT
mode)
Rotate the [CONTROL] knob to choose:
• DIAL
NUMBER
• DIALED
CALL
• MISSED CAL
•
RECEIVED CALL
• USER PHONEBOOK
and press [CONTROL] knob to confirm.
DX/LO (RADIO
mode)
Rotate the
[CONTROL] knob to choose radio
local
or distant at
RADIO
mode.
• LO: Only
stations with strong signal can be
received.
•
OX
: Stations with strong and weak
signals
can be received.
SELECT
(BT
mode)
This
"
SELECT
"
menu
is
intended
to
automatically
paired
by
selecting
a
mobile
phone was stored.
This unit can store three mobile phones. The
mobile phone
will be stored
in
paired order
to the unit. The mobile phone can be stored
up
to three. The fourth mobile phone can not
be
stored. If
you want to store a fourth mobile
phone, please delete unwanted mobile phone
from "DELETE"
menu.
1. Rotate the [CONTROL] knob to choose the
pair
mobile
phone name from the pairing list.
2.
Press
and
hold
the
[CONTROL]
knob
to
confirm.
DELETE
(BT
mode)
1.
Rotate the
[CONTROL]
knob to choose the
paired mobile phone name from the pairing
list.
2.
Press
and
hold
the
[CONTROL]
knob
to
confirm.
DISCON
(BT
mode)
Disconnect currently connected mobile phone.
1. Rotate the [CONTROL] knob, mobile phone
displays are currently connected.
2.
Press
and
hold
the
[CONTROL]
knob
to
disconnect.
MIC GAIN
(BT
mode)
Rotate
the
[CONTROL]
knob to
choose
Mic
gain:
-5,
-4,-3,-2,
-1
,
0,1
,2,3,4,5.
You
can
change
the
gain
of
MIG
when
a
telephone partner cannot hear your voice.
MIC SEL
(BT
mode)
Rotate
the
[CONTROL]
knob
to
choose
microphone EXTERNAL or INTERNAL.
TONE
SEL
(BT
mode)
You
can get mobile phone ring tone from the
speaker.
Rotate the
[CONTROL]
knob to choose
AUTO
or INTERNAL.
• AUTO:
Mobile phone ring tone from the speaker.
• INTERNAL:
The unit original ring tone from the speaker.
AUTO
ANS
(BT
mode)
To answer incoming
calls automatically.
Rotate the
[CONTROL]
knob to choose
AUTO
ANSON
or
OFF.
System Setup
AUTO CON
(BT mode):
ON/OFF
Rotate the [CONTROL] knob to choose
AUTO
CON
ON
or
OFF.
PIN CODE
This CODE
is
required to pairing for bluetooth.
Press
the
[CONTROL]
knob
,
rotate
the
[CONTROL]
knob to select a digit, press the
[CONTROL]
knob (left
I
right) to
move
the
cursor. Press the
[CONTROL]
knob to confirm.
The
PIN CODE
default setting
is"
0000 ".
PARENTAL
PASSWORD (SirlusXM
mode)
Change
parental password.
Original
code
is
"0000".
LOCK
CH
(SirlusXM
mode)
Lock the current channel.
UNLOCK
CH
(SirlusXM
mode)
Unlock current locked channel.
UNLOCK
ALL
CH
(SirlusXM
mode)
Unlock
all
parental locked channels.
ALERT:
ON/OFF
(SirlusXM
mode)
Activate interruption by Artist and Song
alert.
DELETE
ALL
ALERT
(SirlusXM
mode)
Delete saved alert items for artist and song.
AUX
SENS
(AUX
mode)
Rotate the [CONTROL]
knob to choose AUX
input sensitivity
LOW, MID
or
HIGH
at
AUX
mode.
SCAN SVR: ON/OFF
Rotate the
[CONTROL]
knob to choose
SCRN
SVR
(screen saver)
ON or
OFF.
SCROLL: ON/OFF
For track information that is longer than the
display panel:
When
SCROLL
is
ON,
the LCD
will
display
ID3
TAG
information cyclely, e.g.:
TRACK-
>FOLDER->FILE->ALBUM->
TITLE->ARTIST-
>TRACK->
...
When
SCROLL
is
OFF,
the LCD
will
display
one of the ID3
TAG information, the default
is
TRACK, but user can adjust
it
to other
ID3
TAG
information by pressing
[DISP] button
on
the
remote control.
DIMMER: ON/OFF
Rotate
the
[CONTROL]
knob
to
choose
DIMMER ON
or
OFF.
• ON:
LCD dimmer is active when
small light
of vehicle
is
turned
ON.
•
OFF:
LCD
always
maximum
brightness
regardless of the vehicle
small
light.
REAR/S-W
Rotate the
[CONTROL] knob to choose REAR
or
S-WOOFER(SUB-WOOFER).
SW PHASE
Rotate
the
[CONTROL]
knob
to
choose
REVERSE
or NORMAL.
BEEP:
ON/OFF
Rotate the
[CONTROL]
knob to choose button
beep sound
ON
or
OFF.
TEL-SW
Rotate the
(CONTROL]
knob to choose TEL
SW
sound ON
or
OFF.
•
MUTE:
The
sound
from
this
unit
is
muted
during
telephone
calls.
• OFF:
This
unit
continues
normal
operation
even
when the
cellular
phone
is
used.
• ON:
You
can listen to your telephone
calls
from the
speakers connected to this unit.
*
When
listening to
your
calls
on
your
car
speakers
, you can
adjust
the
volume
by
turning the
[CONTROL] knob.
PANDORA:
ON/OFF
Select OFF
if the Pandora application has not
been
installed
on
your iPod touch
or
iPhone.
12/24H
Rotate the [CONTROL] knob to choose time
format: 12 or 24 hours.
M502
7
