Clarion NX405 Quick Start Guide & Installation Manual

48
NX405
English
Owner’s Manual
17. HDMI MODE
(made by Apple Inc.)
(supplied with iPhone)
(made by Apple Inc.)
(supplied with iPhone)
802
Android phone
802
802
I0HONEI0HONESI0HONEI0HONESANDI0HONECCANBECONNECTEDBYUSINGTHECONNECTORCABLE
SUPPLIEDWITHTHEI0HONEI0HONESI0HONEI0HONESANDI0HONECAND($-)CABLESOLDINTHE
MARKETOR##!SOLDSEPARATELYANDDIGITAL!VADAPTER
Note:
4HEFOLLOWINGISPARTOFTHEWIRINGEXAMPLE
Depending on the device, there is a case to connect to the device directly with the CCA-771.
Depending on the adapter or device, there is a case that the audio noise and video noise is generated.

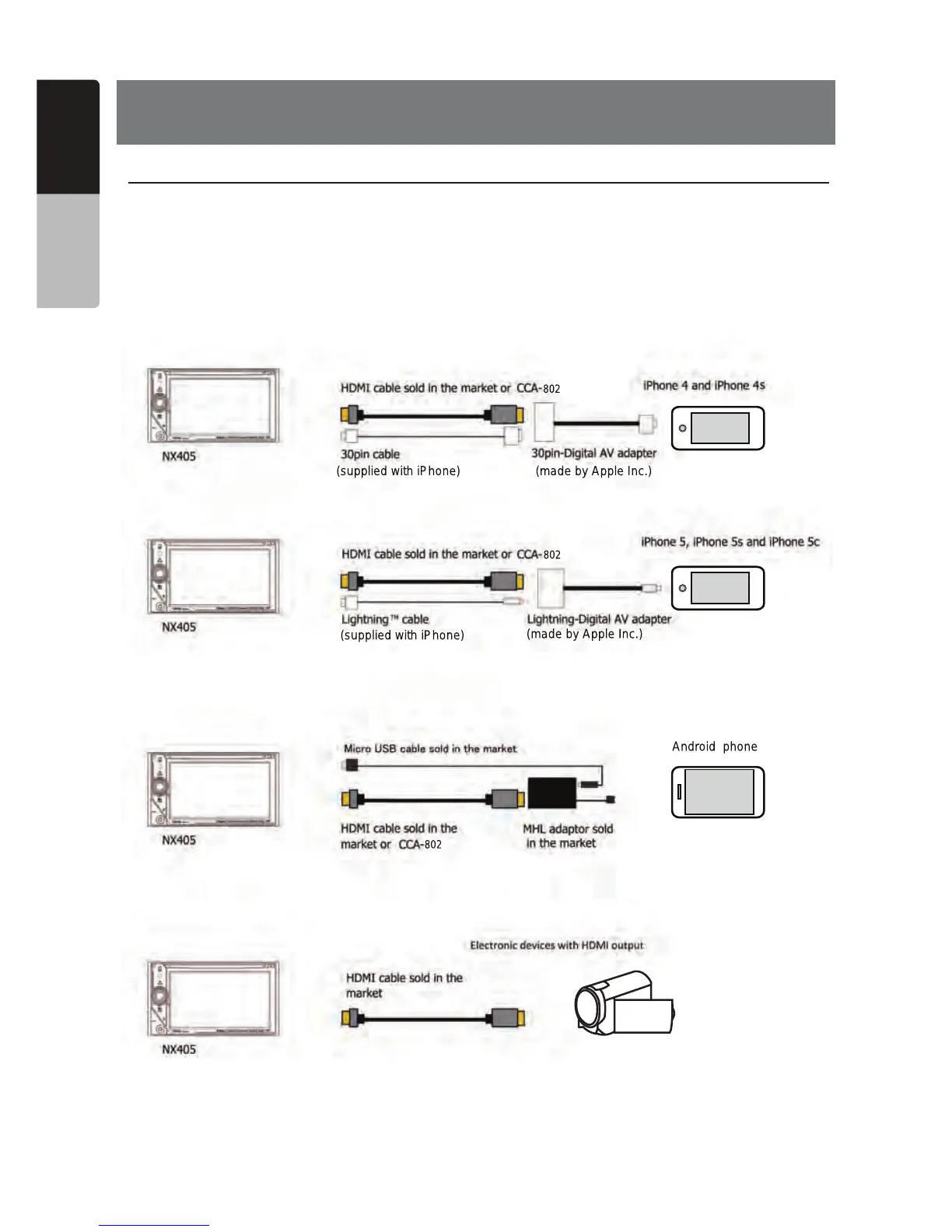

Wire Connection of HDMI Mode
(1) Connection with the iPhone 4 and iPhone 4s
(2) Connection with the iPhone 5, iPhone 5s and iPhone 5c
(3) Connection with the Android Phone
(4) Connection with the equipment with HDMI output
