Clarion NX700 Service Manual

NX700/NX700E
- 2 -
SPECIFICATIONS
Tuner section : NX700(QY-5014B-A)
Frequency range: AM 530kHz to 1710kHz
FM 87.9MHz to 107.9MHz
Quieting sensitivity: AM Less than 37dBuV(S/N=20dB)
FM Less than 15dBuV(S/N=30dB)
Stereo separation: FM More than 25dB(ANT 65dBuV)
Auto stop sensitivity: AM DX 30+/-8dBuV
FM DX 25+/-8dBuV
S/N: AM More than 45dB
(ANT 74dBuV,0dB=1.41V)
FM More than 50dB
(ANT 55dBuV,0dB=1.41V)
Tuner section : NX700E(QY-5015E-A)
Frequency range: LW 153kHz to 279kHz
MW 531kHz to 1602kHz
FM 87.5MHz to 108.0MHz
Quieting sensitivity: LW Less than 45dBuV(S/N=20dB)
MW Less than 37dBuV(S/N=20dB)
FM Less than 15dBuV(S/N=30dB)
Stereo separation: FM More than 25dB(ANT 65dBuV)
Auto stop sensitivity: LW DX 30+/-8dBuV
LO 50+/-8dBuV
MW DX 30+/-8dBuV
LO 50+/-8dBuV
FM DX 22+/-8dBuV
LO 45+/-8dBuV
S/N: LW More than 45dB
(ANT 74dBuV,0dB=1.41V)
MW More than 45dB
(ANT 74dBuV,0dB=1.41V)
FM More than 50dB
(ANT 55dBuV,0dB=1.41V)
CD player section
Distortion: Less than 0.05%(1kHz,20kHz LPF)
S/N: More than 80dB
(1kHz,20kHz LPF JIS-A)
Stereo separation: More than 70dB(1kHz,20kHz LPF)
DVD player section
[DVD-VDEO LPCM48k L/R (DISC TDV-540)]
Line out: More than 1250mV
(1kHz 0dB,Vol Max)
Distortion: Less than 0.05%
(1kHz 0dB,20kHz LPF)
S/N: More than 80dB
(1kHz 0dB,20kHz LPF,JIS-A)
Separation: More than 70dB(20kHz LPF)
[Video output(NTSC) DISC TDV-540] : QY-5014B-A
Video output level: 1.0+/-0.2Vp-p
(75% SMPTE color bar NTSC)
White 100% level: 714+/-150mV
(75% SMPTE color bar NTSC)
Video S/N: More than 45dB(White 50% NTSC)
[Video output(PAL) DISC TDV-540] : QY-5015E-A
Video output level: 1.0+/-0.2Vp-p
(75% SMPTE color bar NTSC)
White 100% level: 700+/-150mV
(75% SMPTE color bar NTSC)
Video S/N: More than 45dB(White 50% NTSC)
USB/AUX/2-ZONE section
Distortion: Less than 0.07%(1kHz,20kHz LPF)
S/N: More than 70dB
(1kHz,20kHz LPF JIS-A)
Stereo separation: More than 55dB(1kHz,20kHz LPF)
2-Zone line out: More than 200mV(1kHz)
* USB;MP3/128kbps
* AUX;Sens. HIGH,Input 0.65V
* 2-Zone;Disc TCD-782
LCD monitor section
Screen size: 7-inch wide type
152(W)x85(H)mm
Display method: Transmission type TN liquid
crystal display
Drive method: TFT(thin-film transistor)
active matrix driving
Pixels: 336,960(1440 RGB x 234)
General
Maximum power output: More than 27W x 4(CD,1kHz,Vol
Max,14.4V) [50W x 4 type]
Speaker impedance: 4 ohm(4 to 8 ohm)
Power source voltage: 14.4V DC
(10.8 to 15.6V allowable)
Ground: Negative
Current consumption: 3.5A(1W)
Auto antenna rated current:
500mA less

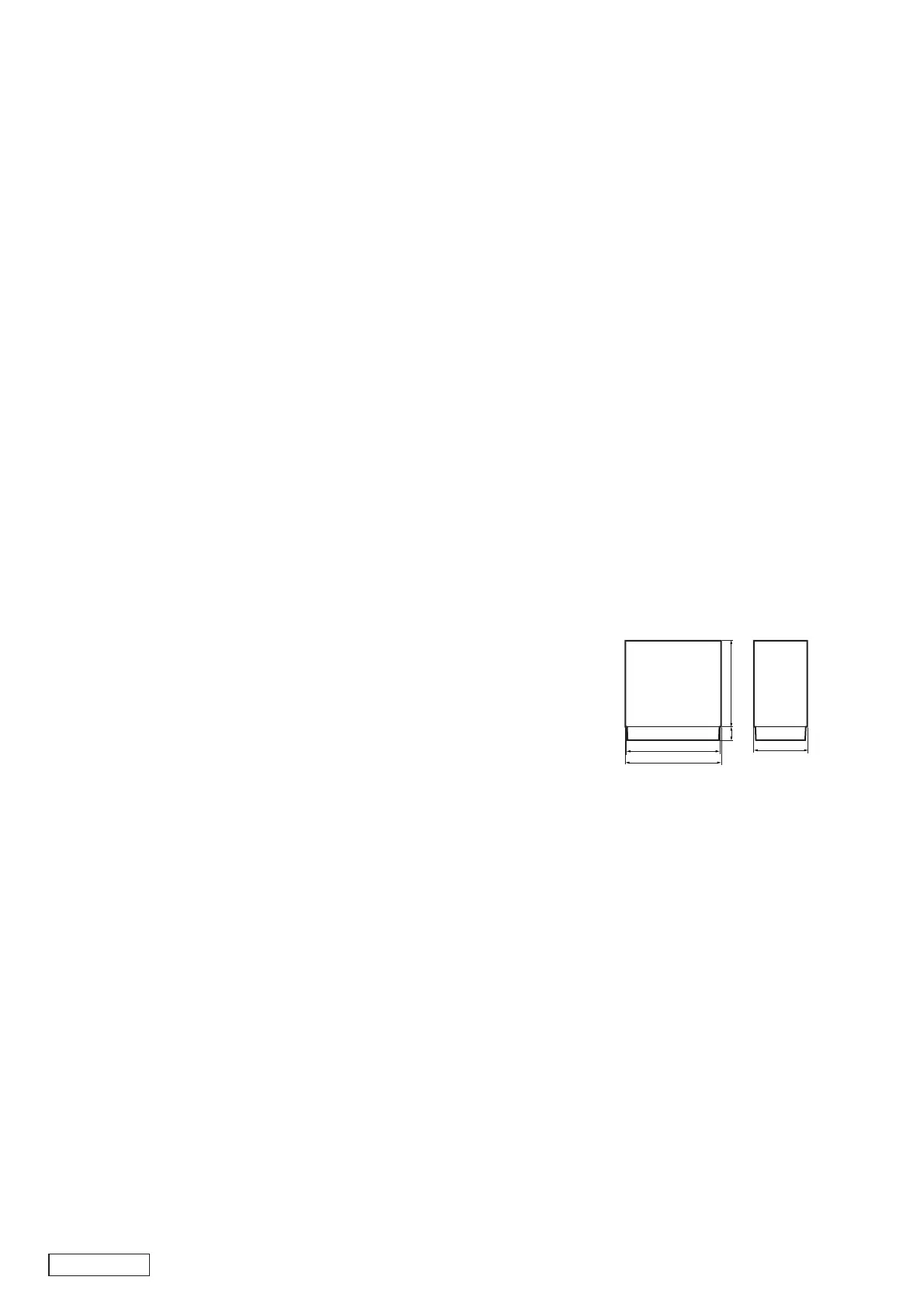

Dimensions(mm): Main unit
Remote control unit
43.4(W)x12.5(H)x112.7(D)
Weight: Main unit Approx. 2.6kg
Remote control unit 60g
(including battery)
171 mm
178 mm
21.8mm
160mm
100 mm
