Clarion NX700 Service Manual

NX700/NX700E
- 27 -
4
3
3
3
20
20
30
21
21
19
30
32
33
(From Main PWB)
1
6
8
7
5
9
16
22
29
17
29
28
18
23
31
27
13
12
25
25
24
10
1
2
11
15
26
14
Panel PWB-A
Panel PWB-B

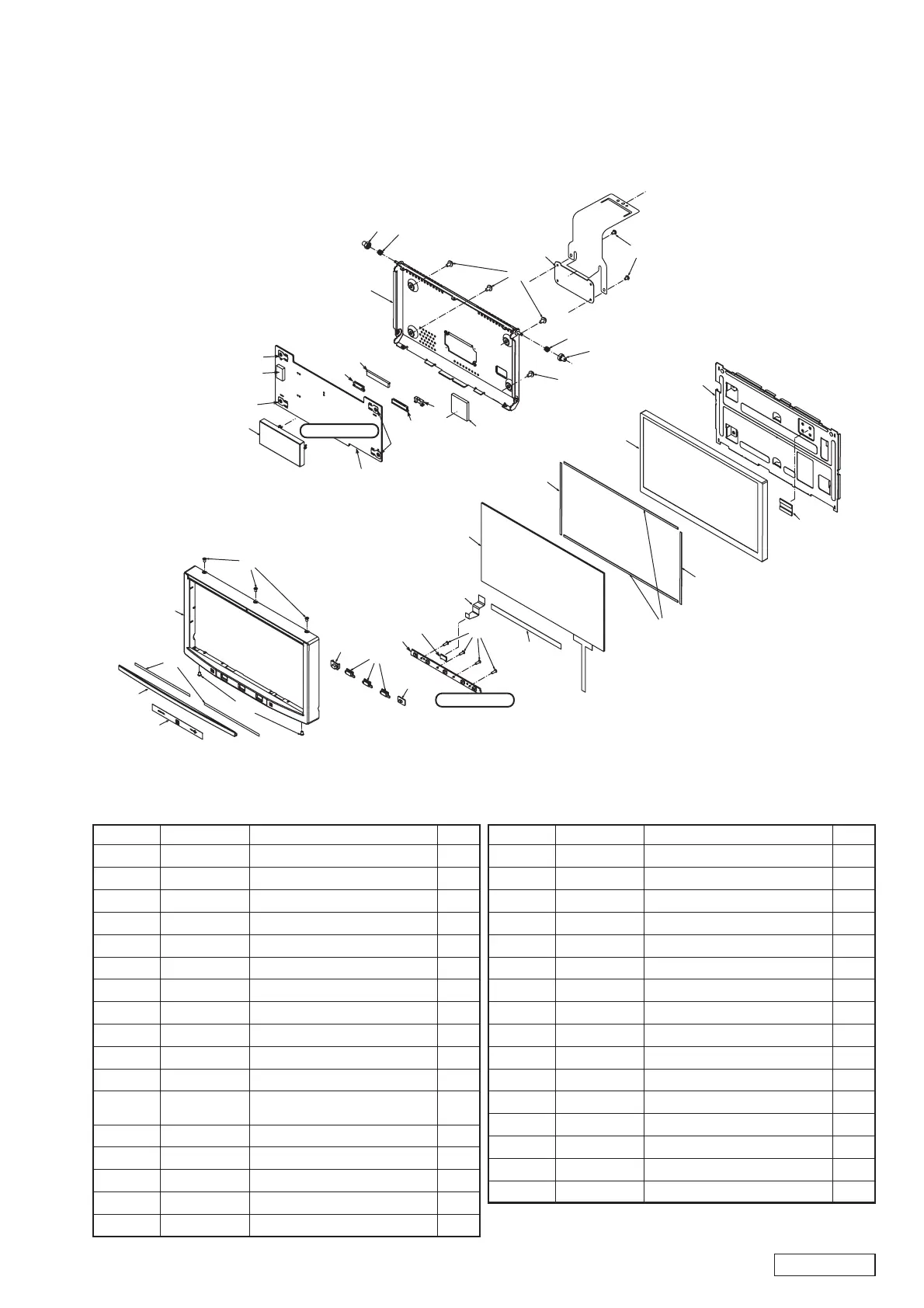

EXPLODED VIEW/PARTS LIST
Panel assy section
Note) Some parts depend on each model. The model name is specified in the description.
1 ----------- PANEL PWB 1
2 074-2236-65 OUTLET SOCKET(15P) 1
3 073-0762-90 TERMINAL 4
4 076-0529-02 PLUG(LCD 2P) 1
5 074-2219-54 OUTLET SOCKET(T/P 4P) 1
6 074-2225-66 OUTLET SOCKET(SW FPC 16P) 1
7 074-2226-80 OUTLET SOCKET(30P) 1
8 074-2233-50 OUTLET SOCKET(50P) 1
9 331-4805-00 SHIELD CASE 1
10 370-6443-00 ESCUTCHEON 1
11 335-8654-00 IR-FILTER 1
12 378-0559-03 BADGE : NX700 1
378-0559-04 BADGE : NX700E 1
13 382-9175-00 SHEET KEY 1
14 382-9176-00 BUTTON(VOL/SRC) 3
15 382-9177-00 BUTTON(RESET) 1
16 013-9723-00 SWITCH(T/P) 1
17 379-0478-00 INDICATOR(LCD) 1
18 331-4803-00 LCD HOLDER 1
19 331-4804-10 REAR-CVR 1
20 335-7074-00 ROLLER 2
21 750-6746-10 ROLLER SPRING 2
22 331-3038-00 EARTH PLATE 1
23 039-3225-00 FPC(SW-LCD) 1
24 347-8742-00 DOUBLE FACE(BADGE) 2
25 780-2003-03 SPECIAL SCREW(M2x3 LOCK) 5
26 778-2004-01 PAD SCREW(M1.7x5) 4
27 347-8743-00 FILM 1
28 347-8740-00 SPACER(U/D) 2
29 347-8741-00 SPACER(L/R) 2
30 780-2604-50 IT SCREW(M2.6x4) 4
31 345-6395-00 HEAT RUBBER 1
32 039-3502-00 PWB(COVER) 1
33 716-1851-00 SPECIAL SCREW(M2x3 LOCK) 2
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

Clarion NX700 Specifications

General

Brand	Clarion
Model	NX700
Category	Car Receiver
Language	English
