Section 3. Know Your Lift Truck
Operator Controls
Driving Controls

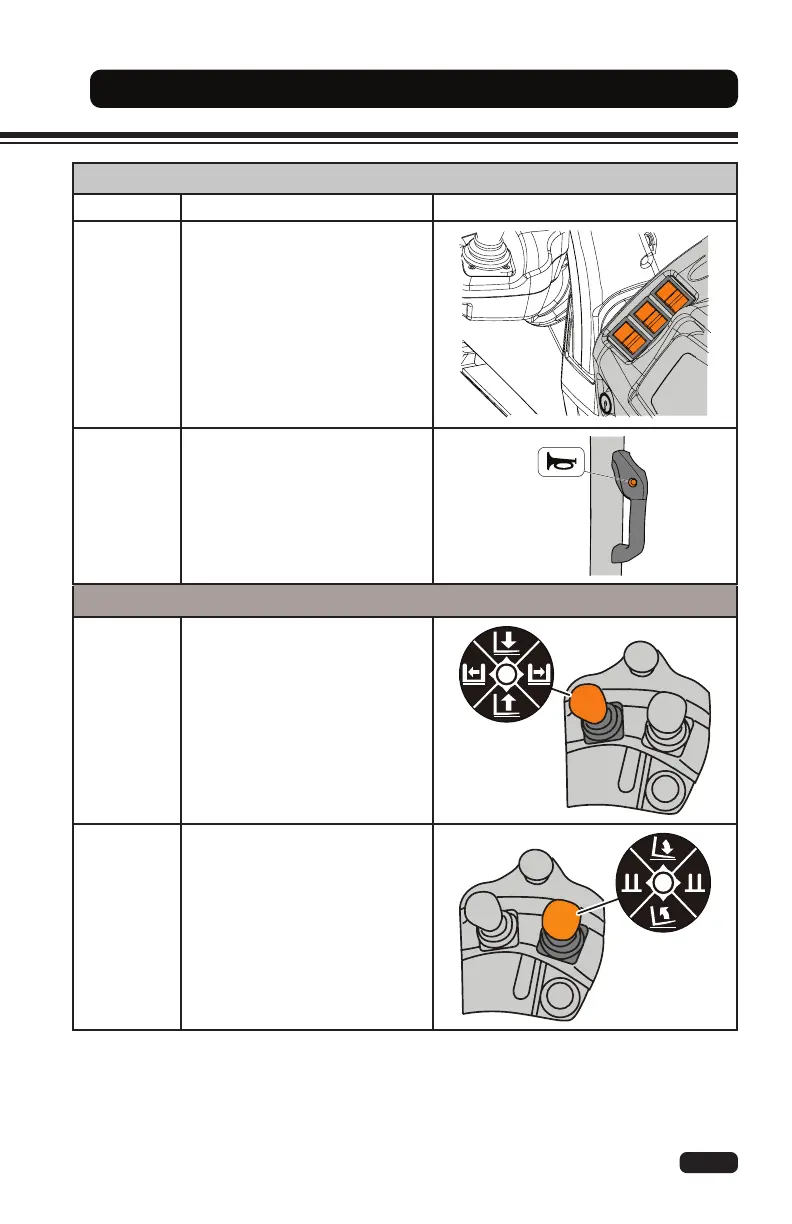

Name Description View
Accessory
Switches
The accessory switches control
electrical options such as
headlights, work lights, and
hazard lights.
Rear Horn
Button
The rear horn button enables
the operator to operate the horn
when traveling in reverse.
Hydraulic Controls
Lift Control
and
Side Shift
Control
Lever
This lever controls the raising
and lowering of the upright and
the carriage sideshifter. Pull
the lever back to lift the upright.
Push the lever forward to lower
the upright. Push the lever to
the right or left to change the
carriage position.
Tilt Control
and Fork
Positioning
Lever
This lever controls the vertical
position of the upright and the
auxiliary function (if equipped).
Pull the lever backward to tilt
the upright back. Push the lever
forward to tilt the upright forward.
Push the lever to the right or left
to use the auxiliary function.
