Clarke TIGER 2600A - FITTING THE HANDLE AND FEET

7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

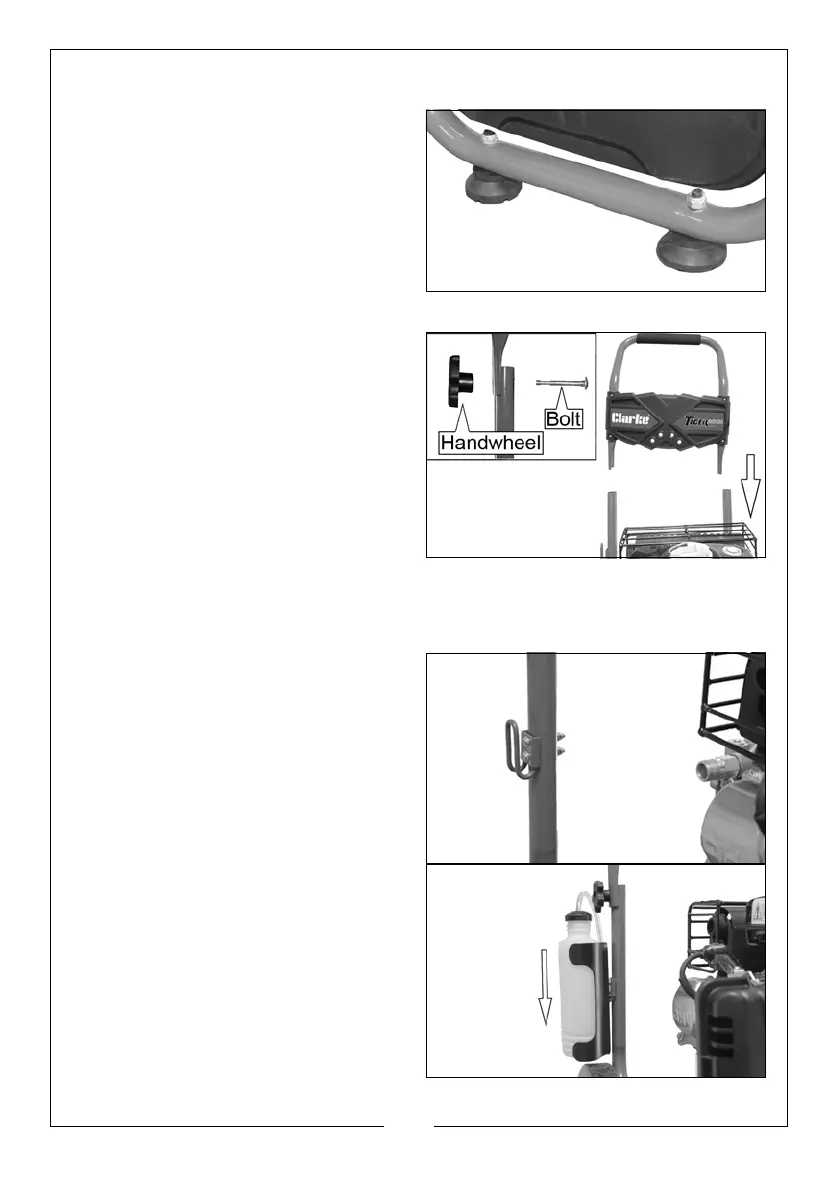

FITTING THE RUBBER FEET
1. Fit the rubber feet to the legs as
shown.
CONNECTING THE HANDLE
1. Slide the upper handle into
position as shown.
2. Secure using a bolt and
handwheel.
• The handwheel should be on
the outside.
FITTING THE WATER BOTTLE
NOTE: The water bottle is only used when using the drawing water from an
unpresurrised source such as a water butt. See page 16.
1. Fit the bracket to the frame as
shown using the bolts, nuts and
washers supplied.
2. Slide the bottle holder over the
bracket and place the bottle in
the holder.
